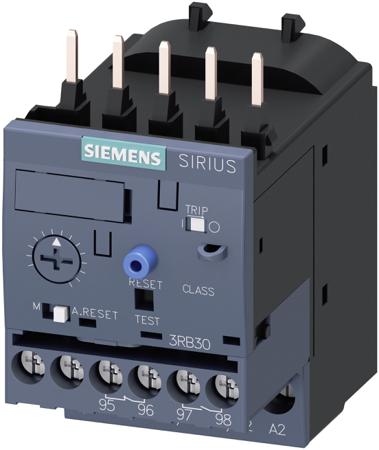

3RB Overload Relay 1NO + 1NC, 1 → 4 A F.L.C, 4 A Contact Rating, 1.5 kW, 3P, SIRIUS

FLC Motor Rating:

1 → 4 A

Contact Current Rating:

4 A

Range:

SIRIUS

Pole Configuration:

3P

Series:

3RB

Mounting Style:

Direct Contactor

Power Rating:

1.5 kW

Normal State Configuration:

1NO + 1NC

Terminal Type:

Screw

Reset Method:

Automatic, Manual

Width:

45mm

Number Of Auxiliary Contacts:

2

Depth:

72.5mm

Length:

64.7mm

Minimum Operating Temperature:

-25°C

Maximum Operating Temperature:

+60°C

Operating Temperature Range:

-25 → +60 °C

Contact Voltage Rating:

690 V ac

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=26483&DisplayLogo=False
