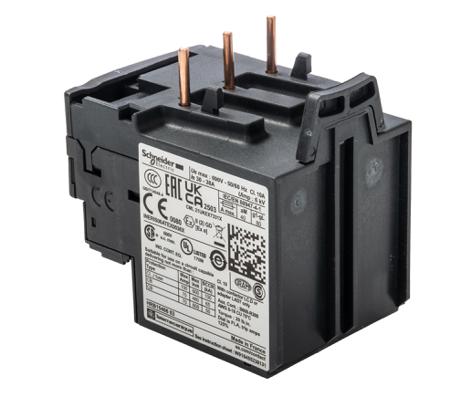

lrd35 Schneider Electric Thermal Overload Relay NO/NC, 30 → 38 A, 38 A

Three-pole Thermal Overload Relays Three-pole thermal overload relays designed to protect ac circuits against overloads, phase failure, long starting times and prolonged stalling of the motor. Adjustable relay setting dial Test button Stop button Manual/auto reset Trip indicator Sealable cover 1N/O & 1N/C auxiliary contacts Direct mounting beneath three-pole contactors or independent mounting on DIN rail Insulation voltage 600V, Withstand Voltage 6kV Dimensions when mounted on an ac contactor Contactor Rating(kW) H (mm) W (mm) D (mm) 4 - 9 123 45 86 11 - 18.5 137 45 92 22 - 37 175 75 123 45 178 85 129 59 - 80 267 120 136 Dimensions when mounted on a dc contactor Contactor Rating (kW) H (mm) W (mm) D (mm) 4 - 9 123 45 95 11 - 18.5 137 45 101 Approvals UL and CSA

For more information please check the datasheets.

Schneider Electric Thermal Overload Relay NO/NC, 30 → 38 A, 38 A

Name: Schneider Electric Thermal Overload Relay NONC, 30 → 38 A, 38 A
Brand: Schneider Electric
SKU: ET13863424
Availability: InStock

Manufacturer:

Schneider Electric

Manufacturer Part No:

LRD35

Enrgtech Part No:

ET13863424

Warranty:

Manufacturer

£ 108.95

Checking for live stock

Better World Verification:

Green Premium

Better World Product:

Yes

Reset Method:

Automatic, Manual

Normal State Configuration:

1NO + 1NC

Pole Configuration:

Operating Temperature Range:

-20 → +60 °C

Contact Current Rating:

38 A

Series:

LRD

Minimum Operating Temperature:

-20°C

Length:

137mm

Mounting Style:

Under Contactor

Width:

45mm

UL E164353(Technical Reference)

CSA 43364(Technical Reference)

Product Environmental Profile(Technical Reference)

Product Change Notice (PCN)(Technical Reference)

Instruction Sheet - LRD35(Technical Reference)

Datasheet_LRD35(Technical Reference)
