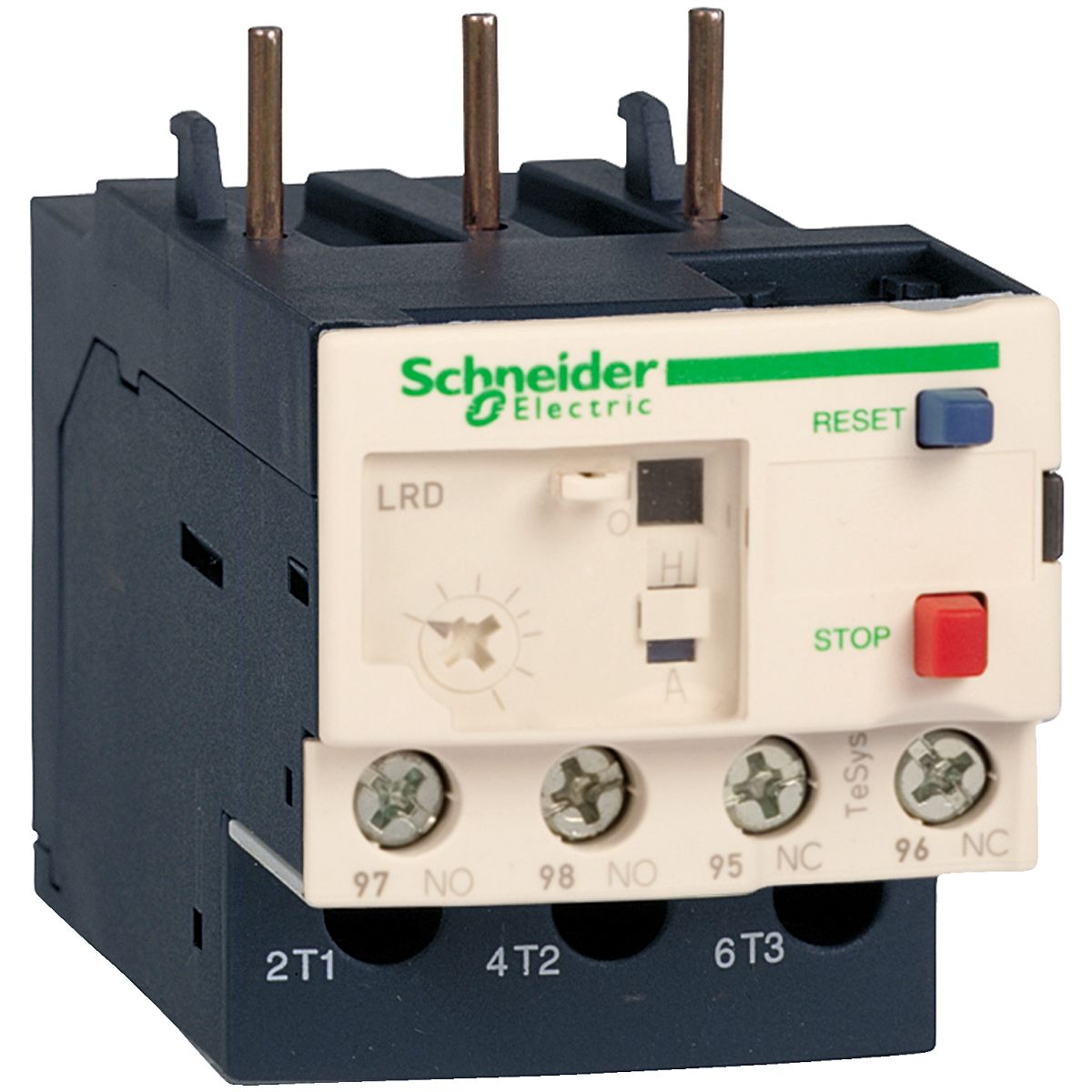

lr3d22 Schneider Electric LR3D Thermal Overload Relay, 16 → 24 A Contact Rating, TeSys

Three-pole Thermal Overload Relays Three-pole thermal overload relays designed to protect ac circuits against overloads, phase failure, long starting times and prolonged stalling of the motor. Adjustable relay setting dial
Test button
Stop button
Manual/auto reset
Trip indicator
Sealable cover
1N/O & 1N/C auxiliary contacts
Direct mounting beneath three-pole contactors or independent mounting on DIN rail
Insulation voltage 600V, Withstand Voltage 6kV

For more information please check the datasheets.

Schneider Electric LR3D Thermal Overload Relay, 16 → 24 A Contact Rating, TeSys

Manufacturer:

Schneider Electric

Manufacturer Part No:

LR3D22

Enrgtech Part No:

ET13904790

Warranty:

Manufacturer

Checking for live stock

Contact Current Rating:

16 → 24 A

Range:

TeSys

Series:

LR3D

Mounting Style:

Direct Contactor

Terminal Type:

Screw

Width:

43.5mm

Depth:

98mm

Length:

55mm

Minimum Operating Temperature:

-20°C

Maximum Operating Temperature:

+60°C

Better World Verification:

Green Premium

Better World Product:

Yes

Datasheet_LR3D22-5cd36e5d(datasheets)

Product Change Notice (PCN)-e0068913(datasheets)

Product Environmental Profile-51be3566(datasheets)

Discover contactor overload relays for motor protection and safety. Enrgtech offers reliable trip units to prevent damage from excess current or overheating.

Schneider Electric LR3D Thermal Overload Relay, 16 → 24 A Contact Rating, TeSys
