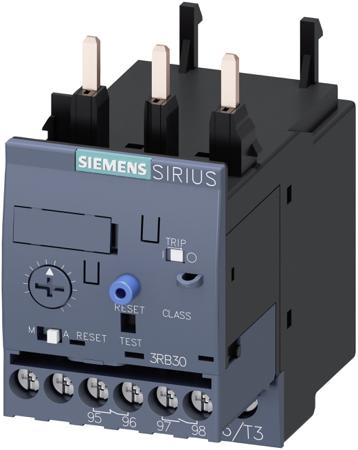

3RB Overload Relay 1NO + 1NC, 3 → 12 A F.L.C, 12 A Contact Rating, 5.5 kW, 3P, SIRIUS

FLC Motor Rating:

3 → 12 A

Contact Current Rating:

12 A

Range:

SIRIUS

Pole Configuration:

3P

Series:

3RB

Mounting Style:

Direct Contactor

Power Rating:

5.5 kW

Normal State Configuration:

1NO + 1NC

Terminal Type:

Screw

Reset Method:

Automatic, Manual

Number Of Auxiliary Contacts:

2

Width:

45mm

Length:

69.7mm

Depth:

83.5mm

Maximum Operating Temperature:

+60°C

Minimum Operating Temperature:

-25°C

Operating Temperature Range:

-25 → +60 °C

Contact Voltage Rating:

690 V ac

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=26499&DisplayLogo=False
