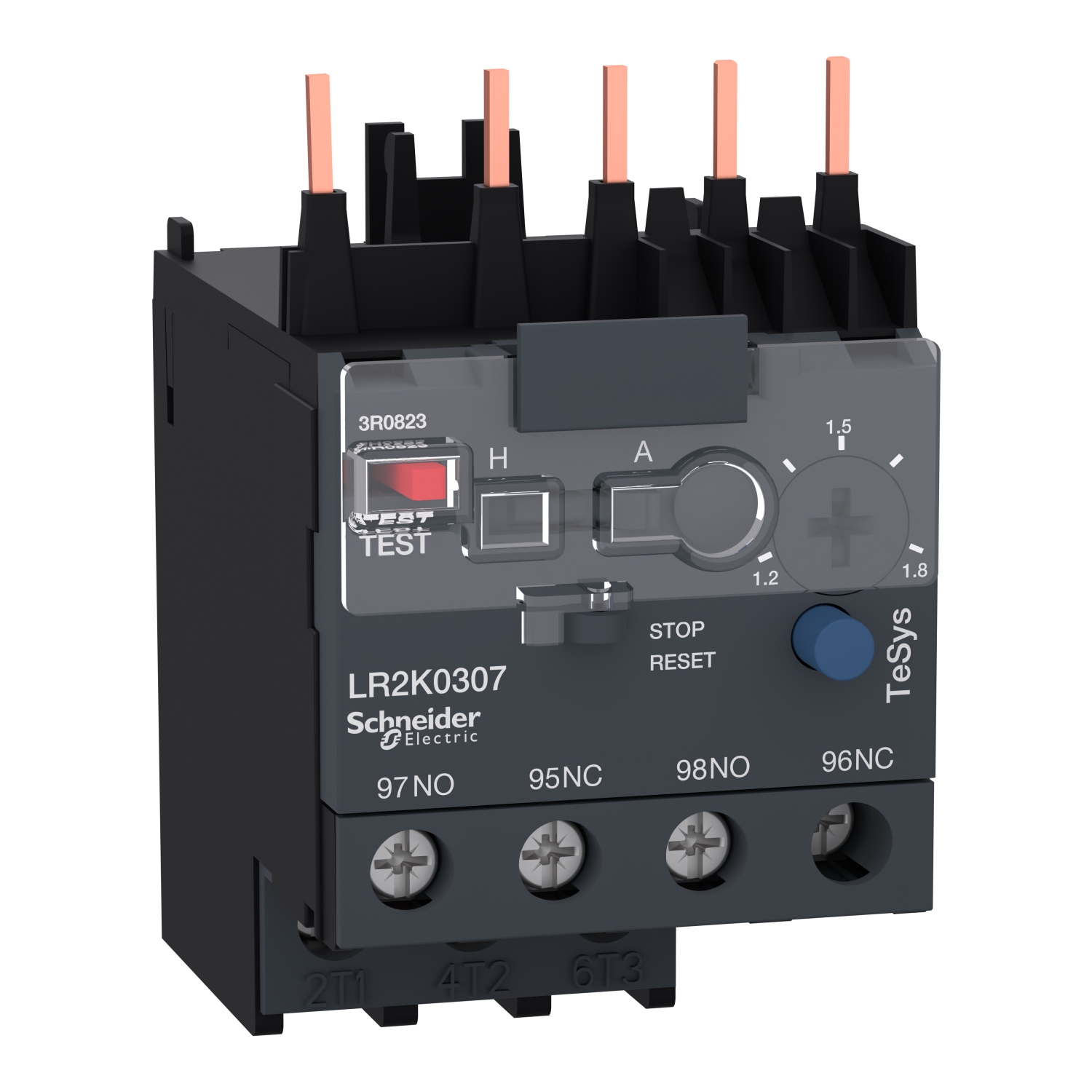

Schneider Electric LR2K Series Thermal Overload Relay, 1.8A Contact Current Rating, 100W - LR2K0307 This thermal overload relay is designed for motor protection, capable of handling motor ratings from 1.2A to 1.8A. With a compact size of 45mm in width, 65mm in depth, and 116mm in length, it easily fits underneath contactors. The device ensures safety through its automatic and manual reset features, making it suitable for various industrial applications. Features & Benefits • Automatic and manual reset options enhance usability
• Compatible with multiple contactor types for flexibility
• 3P configuration supports three-phase systems
• Integrated phase failure sensitivity for added safety
• High insulation voltage rating protects circuits under stress
• Supports screw clamp terminals for secure connections Applications • Used for motor overload protection in industrial environments
• Ideal for applications in automation and electrical systems
• Suitable for environments with operating temperatures from -20°C to +55°C Can it be used with solid and flexible cables? Yes, it supports both solid and flexible cable connections. Will it provide indication when tripped? Yes, it includes a yellow trip indicator for visibility. Is it suitable for high voltage systems? Yes, it supports operational voltage up to 690V. Can the reset method be altered? Yes, it allows for both manual and automatic resets. Does it comply with international standards? Yes, it conforms to IEC 60947 and other global standards.

Schneider Electric LR2K Thermal Overload Relay 1NO + 1NC, 1.2 → 1.8 A F.L.C, 1.8 A Contact Rating, 100 W, 250 V

Manufacturer:
Manufacturer Part No:
LR2K0307
Enrgtech Part No:
ET22256305
Warranty:
Manufacturer
Checking for live stock
FLC Motor Rating:
1.2 → 1.8 A
Contact Current Rating:
1.8 A
Range:
TeSys
Pole Configuration:
3P
Series:
LR2K
Mounting Style:
Under Contactor
Power Rating:
100 W
Normal State Configuration:
1NO + 1NC
Terminal Type:
Screw
Reset Method:
Automatic, Manual
Number Of Auxiliary Contacts:
2
Width:
45mm
Length:
116mm
Depth:
65mm
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+55°C
Operating Temperature Range:
-20 → +55 °C
Better World Verification:
Green Premium
Better World Product:
Yes
Contact Voltage Rating:
690 V ac
Control Voltage:
250 V dc, 690 V ac
pdf icon
K 3-Pole Contactors for Motor Control -References-595b5e79(datasheets)
pdf icon
UL E164353-21886c26(datasheets)
pdf icon
LR2K0307 Datasheet-c3fbf015(datasheets)
pdf icon
Green Premium Ecolabel-135e9211(datasheets)
pdf icon
Green Premium - Product Environmental Profile-af0e243d(datasheets)
pdf icon
Product Environmental Profile-b662cf30(datasheets)
Discover contactor overload relays for motor protection and safety. Enrgtech offers reliable trip units to prevent damage from excess current or overheating.
