LRD Thermal Overload Relay 1NO + 1NC, 30 → 40 A F.L.C, 40 A Contact Rating, TeSys D

FLC Motor Rating:

30 → 40 A

Contact Current Rating:

40 A

Range:

TeSys D

Series:

LRD

Mounting Style:

Under Contactor Mount

Normal State Configuration:

1NO + 1NC

Terminal Type:

Screw

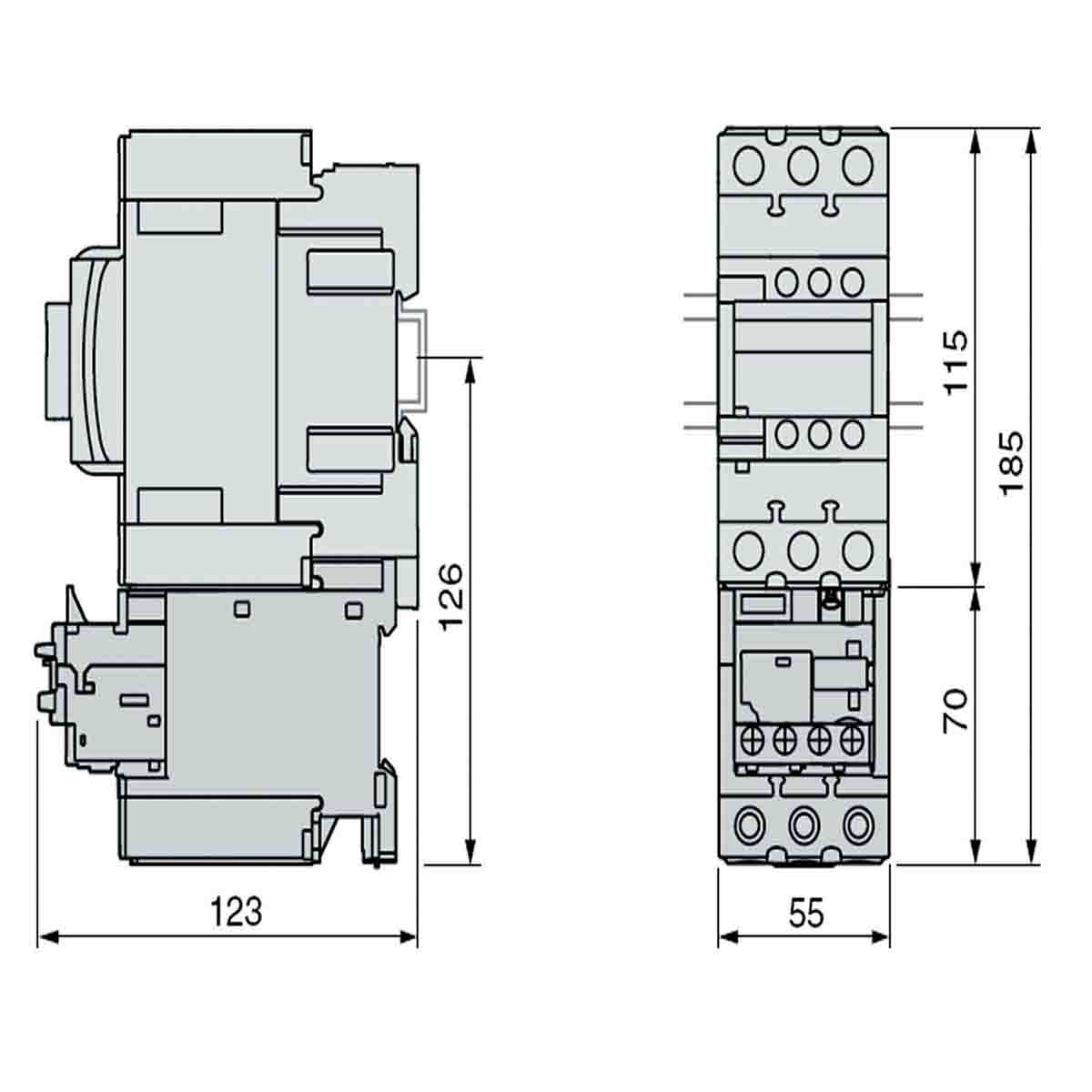

Width:

55mm

Number Of Auxiliary Contacts:

2

Length:

70mm

Depth:

116mm

Minimum Operating Temperature:

-20°C

Maximum Operating Temperature:

+60°C

Better World Product:

Yes

Operating Temperature Range:

-20 → +60 °C

Better World Verification:

Green Premium

Contact Voltage Rating:

1 kV ac

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=21304&DisplayLogo=False
