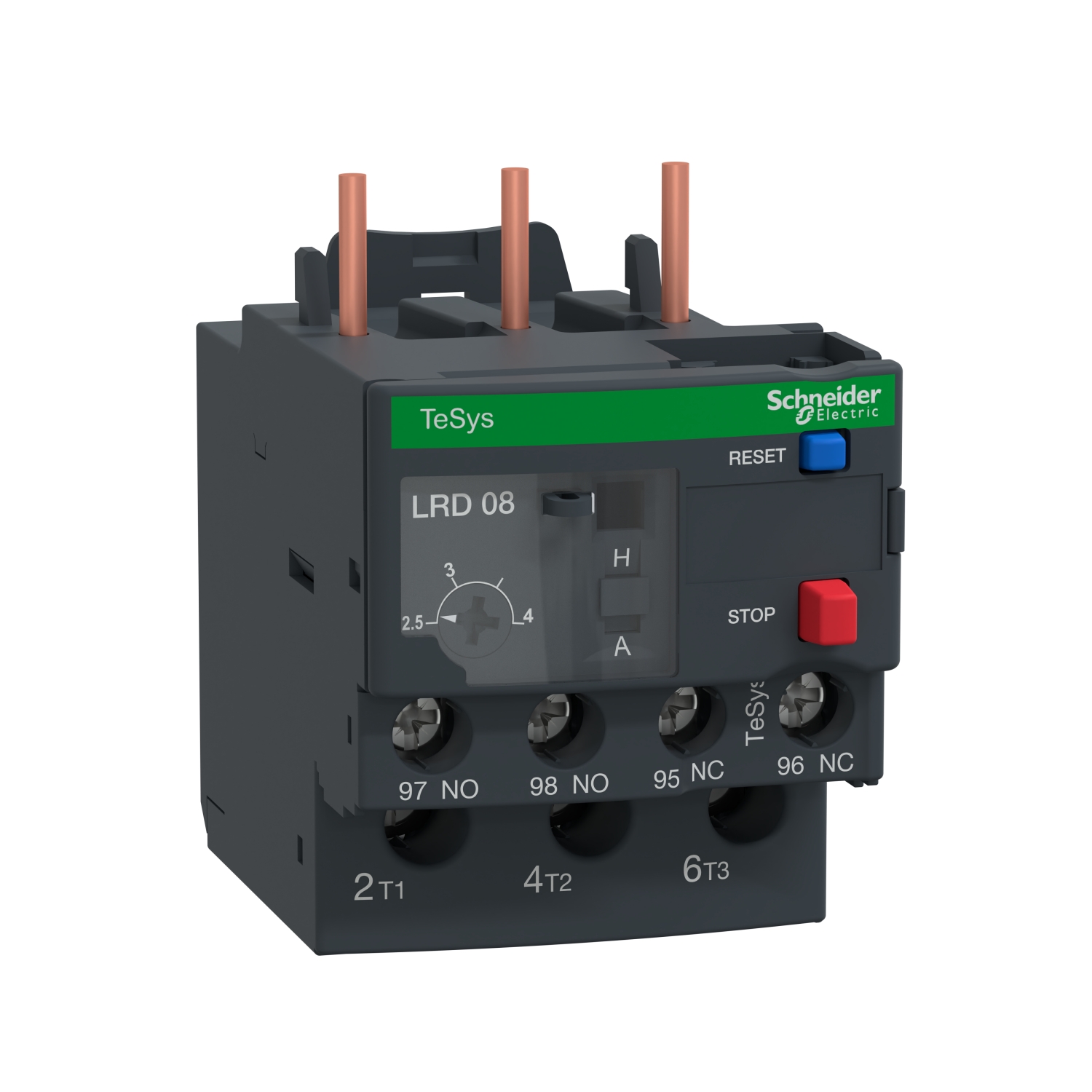

Schneider Electric Thermal Overload Relay, 690V AC Rated Operational Voltage, 6kV Rated Impulse Withstand Voltage - TeSys Series - LR3D08 Are power problems grinding your machinery to a halt? Isolate faults with this Schneider Electric thermal overload relay. It monitors the current flowing through your equipment. When it detects an overcurrent condition that exceeds its 2.5 to 4A range, it triggers a trip mechanism that interrupts the power supply to prevent overheating and potential motor burnout or equipment failure. Resetting the device after breaking is no issue, thanks to its simple push button controls. Features & Benefits • Mounts on an industry-standard DIN rail for simple and tool-free installation
• Network frequency range of 0 to 400Hz for wide compatibility with commonly used devices
• Front-side flag indicators clearly show trip status, making troubleshooting easy
• Handles operating temperatures between -20°C and +60°C, so it's suitable for installation in harsh environments Applications • Industrial automation
• Packing plants
• Construction industry How do I adjust the current setting on this relay? You can change the unit's current setting by turning the front dial with a screwdriver, so adapting it to suit your equipment is hassle-free.

Schneider Electric LR3D Thermal Overload Relay, 2.5 → 4 A F.L.C, 4 A Contact Rating, 600 V, TeSys

Manufacturer:
Manufacturer Part No:
LR3D08
Enrgtech Part No:
ET5021960
Warranty:
Manufacturer
Checking for live stock
FLC Motor Rating:
2.5 → 4 A
Contact Current Rating:
4 A
Range:
TeSys
Series:
LR3D
Mounting Style:
DIN Rail Mount
Terminal Type:
Screw
Reset Method:
Push Button
Width:
45mm
Depth:
70mm
Maximum Operating Temperature:
+60°C
Minimum Operating Temperature:
-20°C
Operating Temperature Range:
-20 → +60 °C
Better World Product:
Yes
Better World Verification:
Green Premium
Control Voltage:
600 V
Supply Voltage:
690 V ac
Contact Voltage Rating:
690 V ac
pdf icon
Datasheet LR3D08-ac693089(datasheets)
pdf icon
Product Change Notice (PCN)-e0068913(datasheets)
pdf icon
Green Premium - Product Environmental Profile-a30b7652(datasheets)
pdf icon
Catalogue - NEMA And Definite Purpose Contactors And Starters-e2994b82(datasheets)
pdf icon
User Guide - Safety Device For Use In Explosive Atmospheres-ccd21098(datasheets)
pdf icon
Product Environmental Profile-51be3566(datasheets)
Discover contactor overload relays for motor protection and safety. Enrgtech offers reliable trip units to prevent damage from excess current or overheating.
