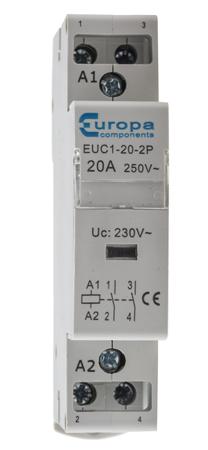

Europacomponents EUC1 Series Modular Contactor
2 Pole
Operating temperature: -5°C to 40°C
35mm DIN Rail mounting
Maximum cable capacity main terminals: 10 mm²
Maximum cable capacity coil terminals: 2.5 mm² Europa Components EUC1 series 2 pole modular contactors. These units are DIN Rail mounted and designed for installation in consumer units and three phase distribution boards. Ideal for heating lighting and building service type applications.
Operating temperature: -5°C to 40°C
35mm DIN Rail mounting
Maximum cable capacity main terminals: 10 mm²
Maximum cable capacity coil terminals: 2.5 mm² Europa Components EUC1 series 2 pole modular contactors. These units are DIN Rail mounted and designed for installation in consumer units and three phase distribution boards. Ideal for heating lighting and building service type applications.
EUC1 Contactor, 230 V ac Coil, 2-Pole, 20 A, 4 kW, 2NO, 240 V ac
£ 29.51
Checking for live stock
Coil Voltage:
230 V ac
Number of Poles:
2
Contact Voltage Rating:
240 V ac
Contact Current Rating:
20 A
Series:
EUC1
Power Rating:
4 kW
Normal State Configuration:
2NO
Terminal Type:
Screw
Length:
18mm
Width:
87.5mm
Depth:
68mm
Pole and Throw Configuration:
DPST
