3 Pole Reversing Contactors with Screw Clamp Termination Contactors have a switching voltage of 440Vac and a coil consumption (ac coils 50/60Hz rated) of 4.5VA (Hold in) and 30VA (inrush). These are complete units, that is two 'K' series contactors coupled together Incorporates mechanical interlock to ensure only one set of 3 poles are closed at any one time

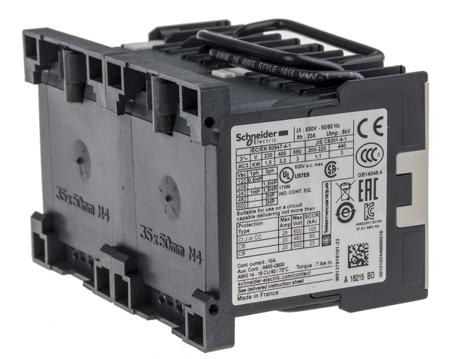

Schneider Electric TeSys K LP2K 3 Pole Contactor, 3NO, 6 A, 3 kW, 24 V dc Coil

Manufacturer:
Manufacturer Part No:
LP2K0601BD
Enrgtech Part No:
ET13942860
Warranty:
Manufacturer
£ 117.82
Checking for live stock
Function:
Reversing
Better World Verification:
Green Premium
Better World Product:
Yes
Maximum Operating Temperature:
+50°C
Contact Current Rating:
6 A
Series:
LP2K
Minimum Operating Temperature:
-25°C
Coil Voltage:
24 V dc
Length:
58mm
Width:
90mm
Depth:
57mm
Number Of Auxiliary Contacts:
1
Normal State Configuration:
3NO
Range:
TeSys K
Power Rating:
3 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
Terminal Type:
Screw
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-25°C ~ 50°C
Coil Resistance:
-
title:
LP2K0601BD
Coil Power:
-
Must Operate Voltage:
19.2 VDC
Contact Form:
3PST-NO (3 Form A)
Operate Time:
10 ms
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
6 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC - Max
Release Time:
40 ms
Packaging:
Box
Contact Material:
-
pdf icon
Datasheet(Technical Reference)
pdf icon
Catalogue - Innovative and connected solutions for motor starters(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
