100-C 24V DC Coil Operating Contactors The Bulletin 100-C IEC contactor has a wide range of common accessories which provide a compact and flexible starter component system. Max. switching voltage 690V (rated voltage) AC3 24Vdc coil draws 200W inrush, upto 16W Hold in Electrical Life: 1.3 million operations 3 pole, 1 NO auxiliary contact on sizes 4 to 11kW Built-in surge suppression Note Please ensure the power supply and any contacts used in the circuit can withstand 8.3A surge current Standards IEC947, EN60 947, VDE0660, UL508, CSA22.2. Allen Bradley MCS (Modular Control System) Contactors A modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3. A wide range of accessories are also available to cater for many diverse needs. The ease of assembly, installation and modification can bring many benefits not only those related to cost, but can reduce the number of parts which need to be held. The compact size of the component parts, bring other benefits including reduction in enclosure volume required, modern design and weight savings are also gained. By applying a modular design concept and an easy to fit 'clip-in' method, all add to the class leading features and benefits of the MCS system. DIN Rail Surface Mounting

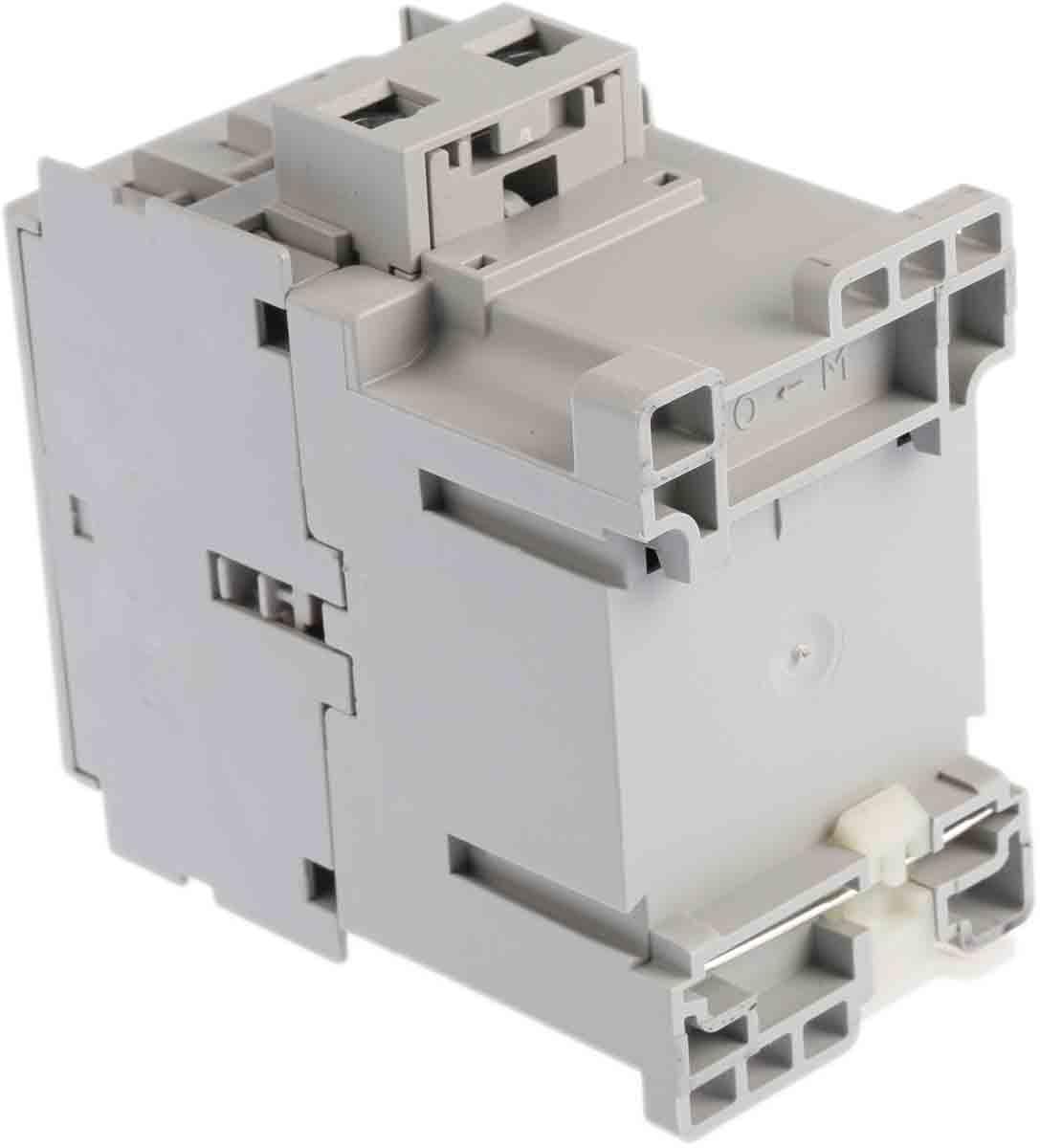

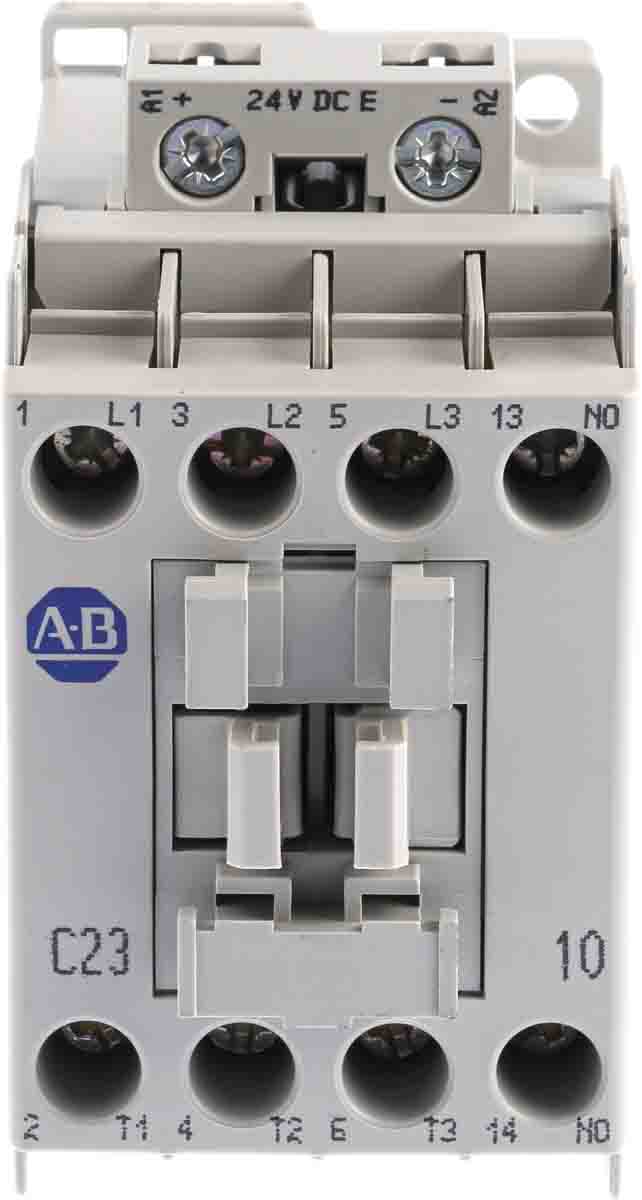

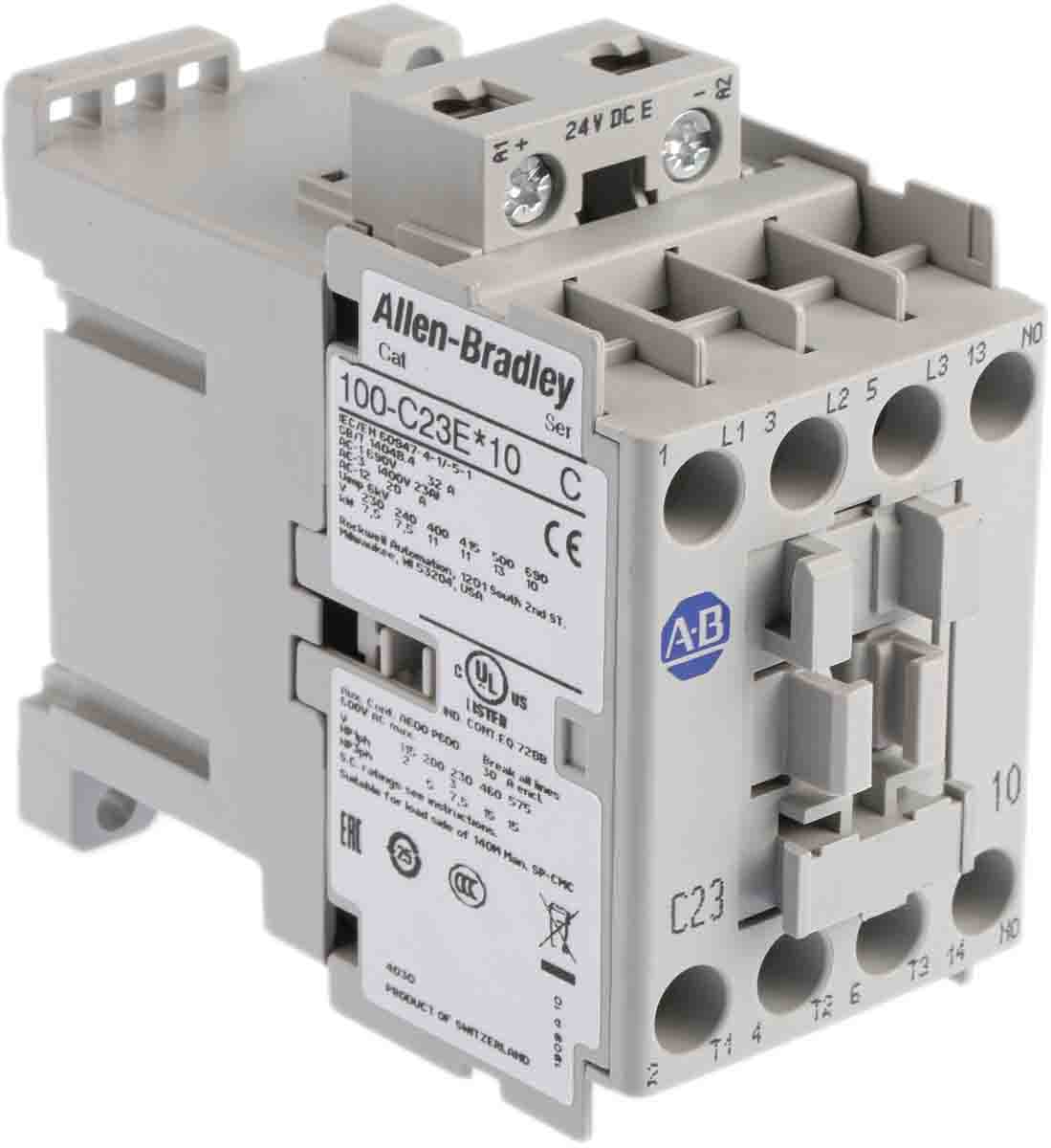

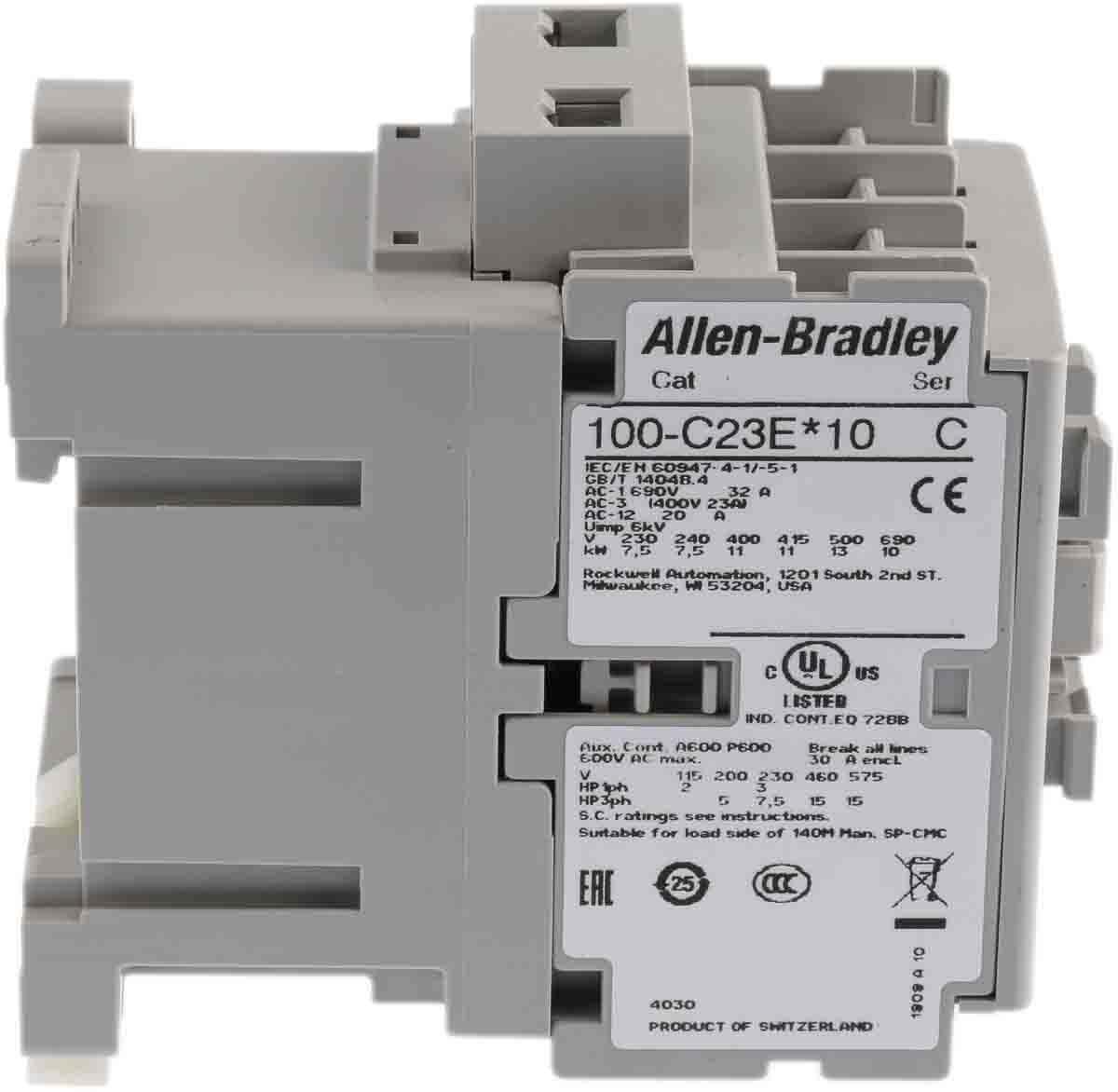

Allen Bradley 100 Series 100C 3 Pole Contactor, NO, 23 A, 10 kW, 24 V dc Coil

Manufacturer:
Manufacturer Part No:
100-C23EJ10
Enrgtech Part No:
ET13996313
Warranty:
Manufacturer
£ 78.40
Checking for live stock
Function:
Motor Control
Minimum Operating Temperature:
-25°C
Contact Current Rating:
23 A
Series:
100C
Coil Voltage:
24 V dc
Length:
81mm
Width:
45mm
Depth:
86.5mm
Number Of Auxiliary Contacts:
1
Normal State Configuration:
3NO
Range:
100 Series
Power Rating:
11 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
Maximum Operating Temperature:
+60°C
pdf icon
Controlling High Efficiency Motors - Brochure(Technical Reference)
pdf icon
Allen Bradley IEC Contactor Specifications(Technical Reference)
pdf icon
Contactors Bulletin Data Sheet(Technical Reference)
pdf icon
Bulletin 100 Contactors Product Profile(Technical Reference)
