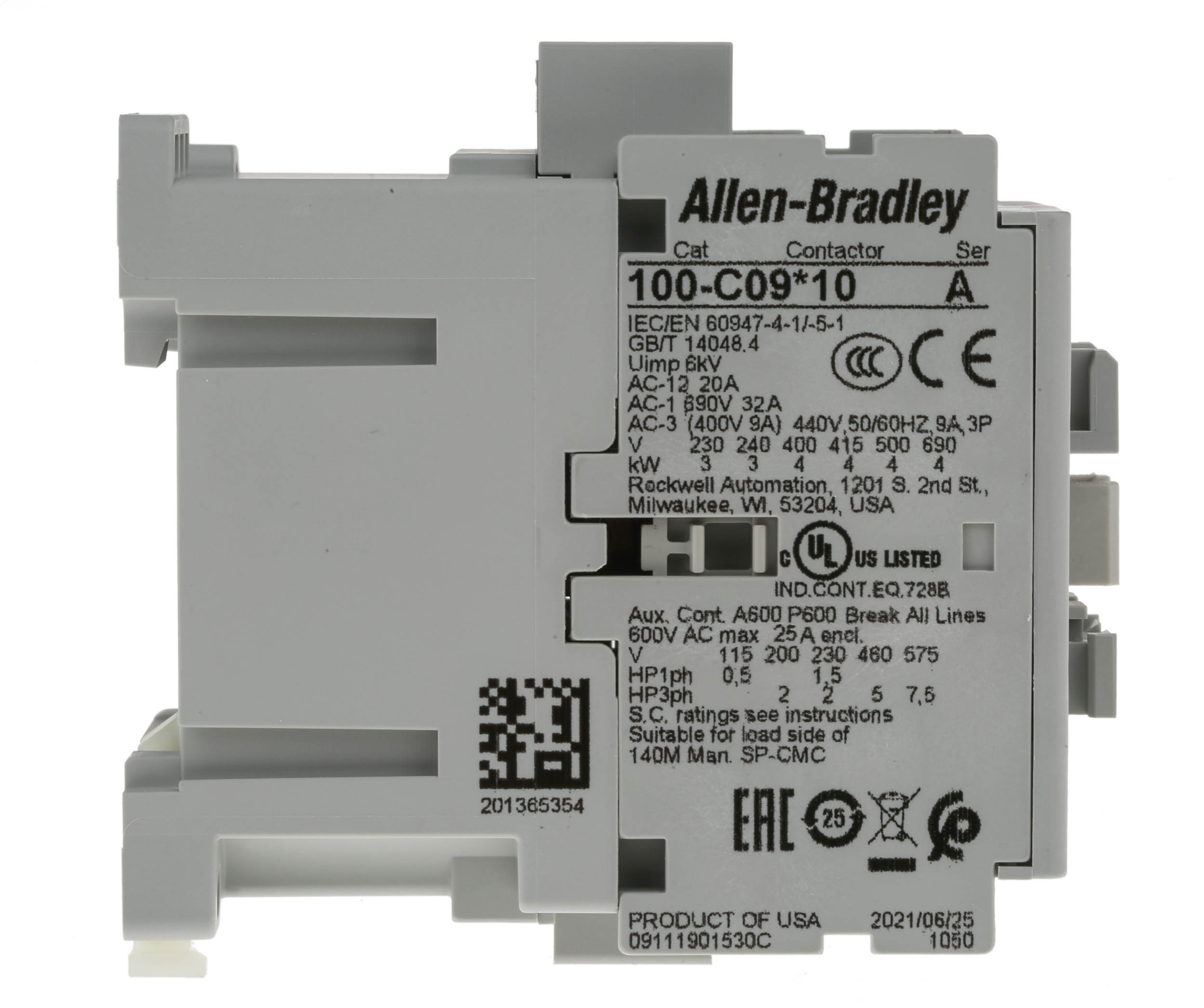

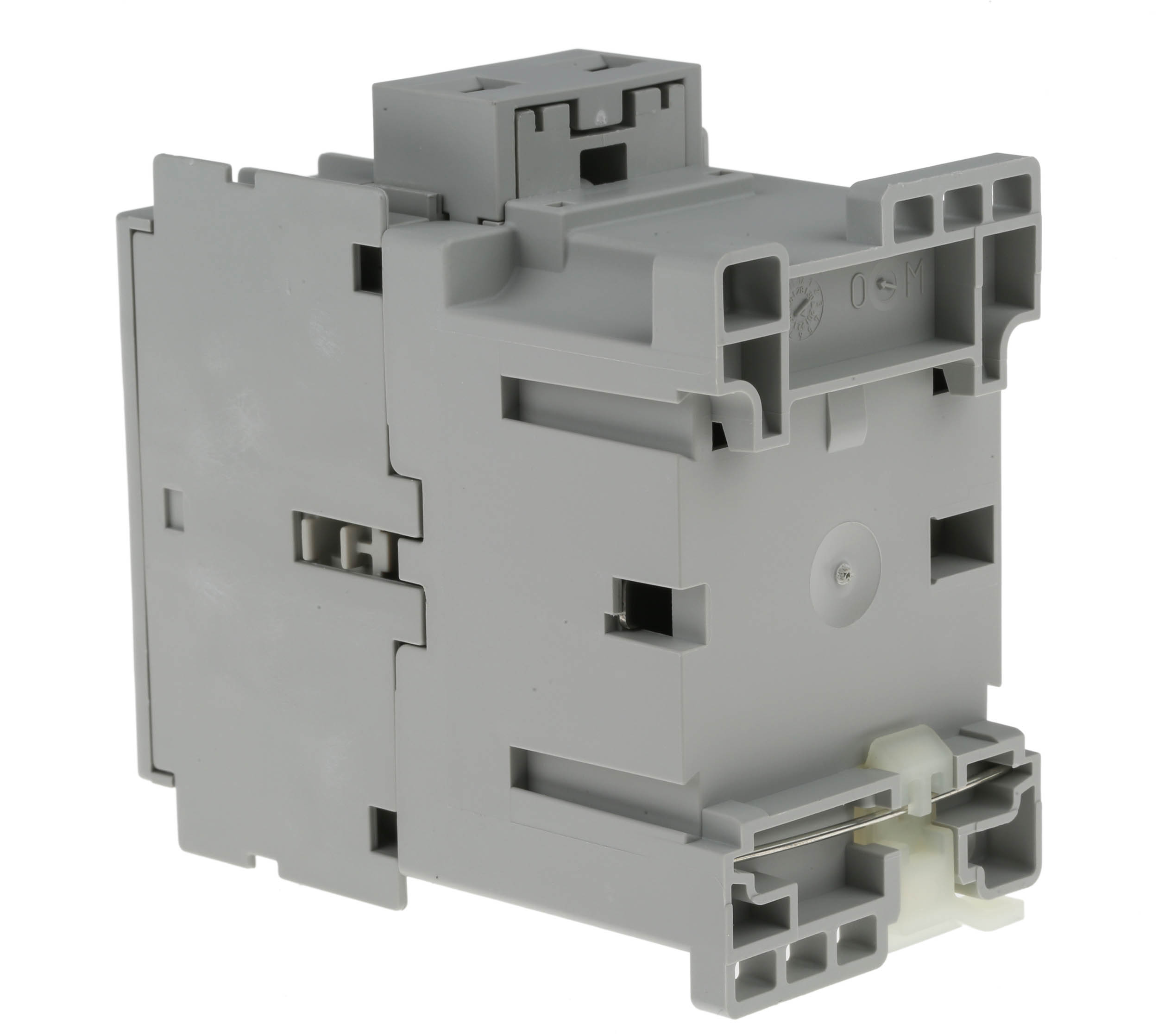

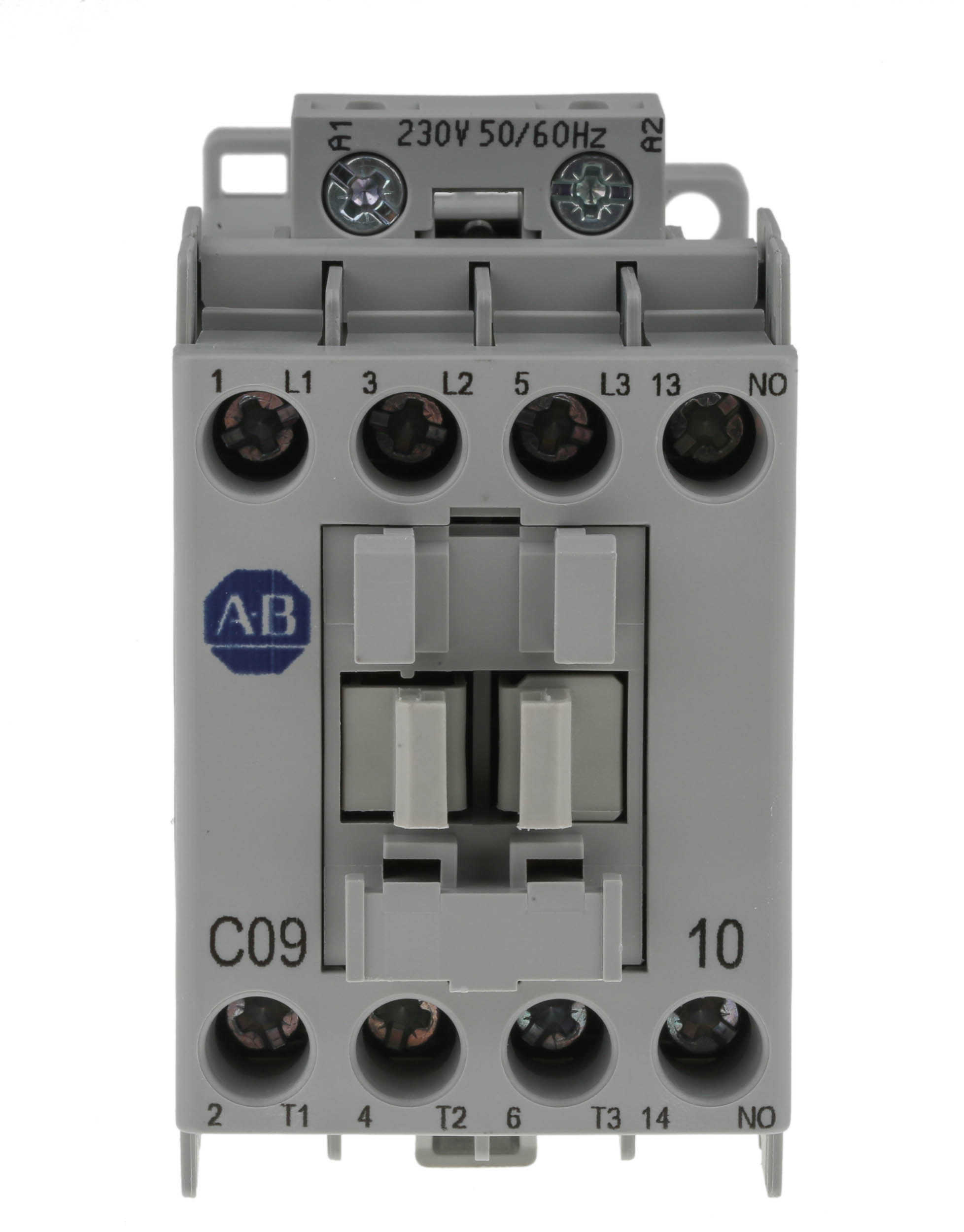

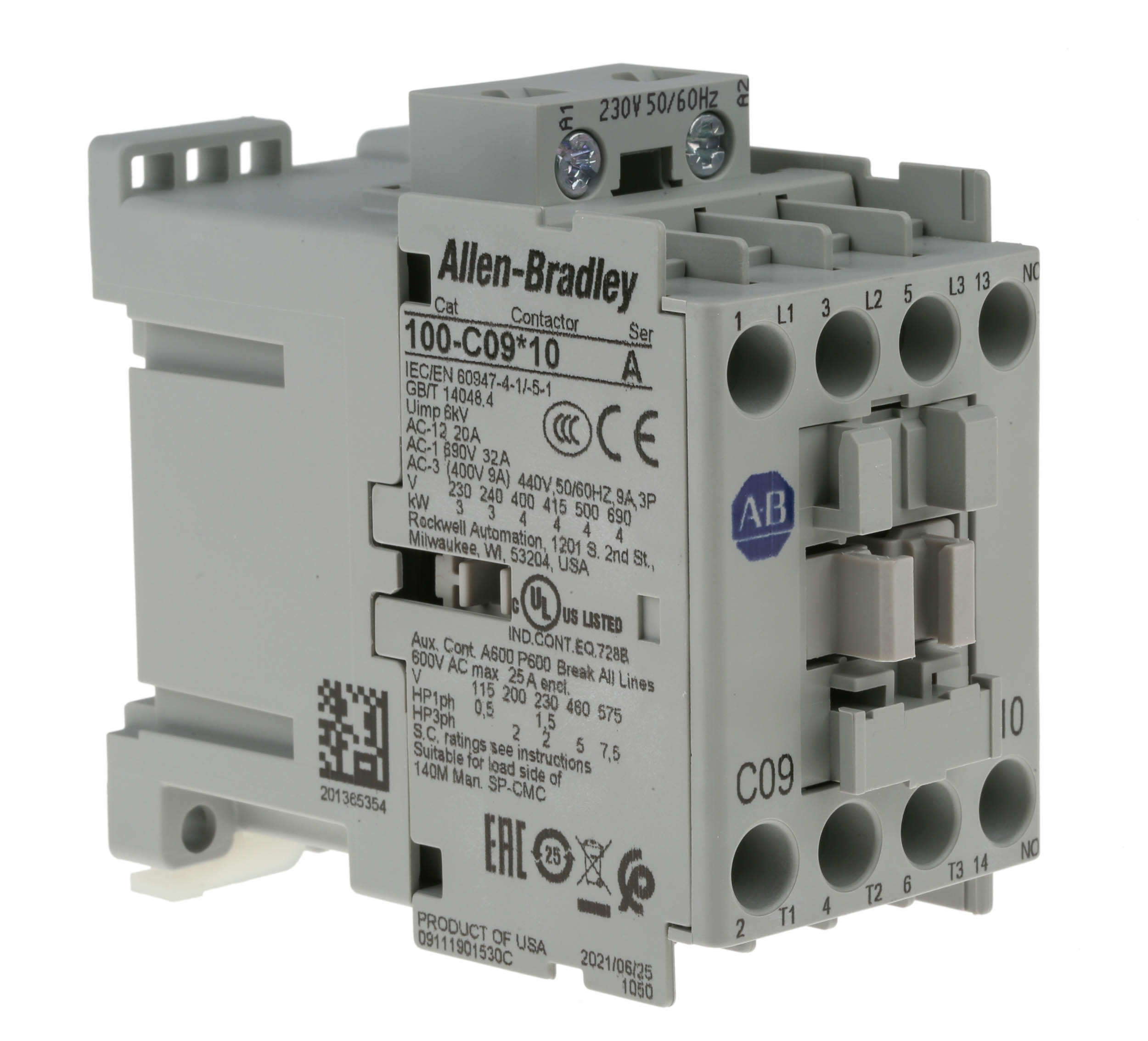

100-c09kf10 Allen Bradley 100 Series 100C 3 Pole Contactor, 3NO, 9 A, 4 kW, 230 V ac Coil
100-c09kf10 Allen Bradley 100 Series 100C 3 Pole Contactor, 3NO, 9 A, 4 kW, 230 V ac Coil
100-c09kf10 Allen Bradley 100 Series 100C 3 Pole Contactor, 3NO, 9 A, 4 kW, 230 V ac Coil
100-c09kf10 Allen Bradley 100 Series 100C 3 Pole Contactor, 3NO, 9 A, 4 kW, 230 V ac Coil

100-C AC Coil Operating Contactors Max Switching Voltage 690V (Rated Voltage) AC3 Coil Nominal AC Power 8 to 16 VA (Hold in); 70 to 200VA (Inrush) Electrical Life: 1.3 Million Operations (400V) 3 pole, 1 NO auxiliary contact on sizes 4 to 11kW Approvals UL, CSA Standards IEC947, EN60 947, VDE0660, UL508, CSA22.2. Allen Bradley MCS (Modular Control System) Contactors A modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3. A wide range of accessories are also available to cater for many diverse needs. The ease of assembly, installation and modification can bring many benefits not only those related to cost, but can reduce the number of parts which need to be held. The compact size of the component parts, bring other benefits including reduction in enclosure volume required, modern design and weight savings are also gained. By applying a modular design concept and an easy to fit 'clip-in' method, all add to the class leading features and benefits of the MCS system. DIN Rail Surface Mounting

Allen Bradley 100 Series 100C 3 Pole Contactor, 3NO, 9 A, 4 kW, 230 V ac Coil

Manufacturer:
Manufacturer Part No:
100-C09KF10
Enrgtech Part No:
ET14050014
Warranty:
Manufacturer
£ 21.00
Checking for live stock
Function:
Motor Control
Maximum Operating Temperature:
+60°C
Contact Current Rating:
9 A
Series:
100C
Minimum Operating Temperature:
-25°C
Coil Voltage:
230 V ac
Length:
81mm
Width:
45mm
Depth:
86.5mm
Number Of Auxiliary Contacts:
1
Normal State Configuration:
3NO
Range:
100 Series
Power Rating:
4 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
Terminal Type:
Screw
pdf icon
Contactors - Bulletin 100-M, 100-C, 104-C, 100S-C, 104S-C, CAB6, 100-G - Data Sheet(Technical Reference)
pdf icon
Allen Bradley IEC Contactor Specifications(Technical Reference)
pdf icon
Controlling High Efficiency Motors - Brochure(Technical Reference)
pdf icon
Bulletin 100 Contactors Product Profile(Technical Reference)
