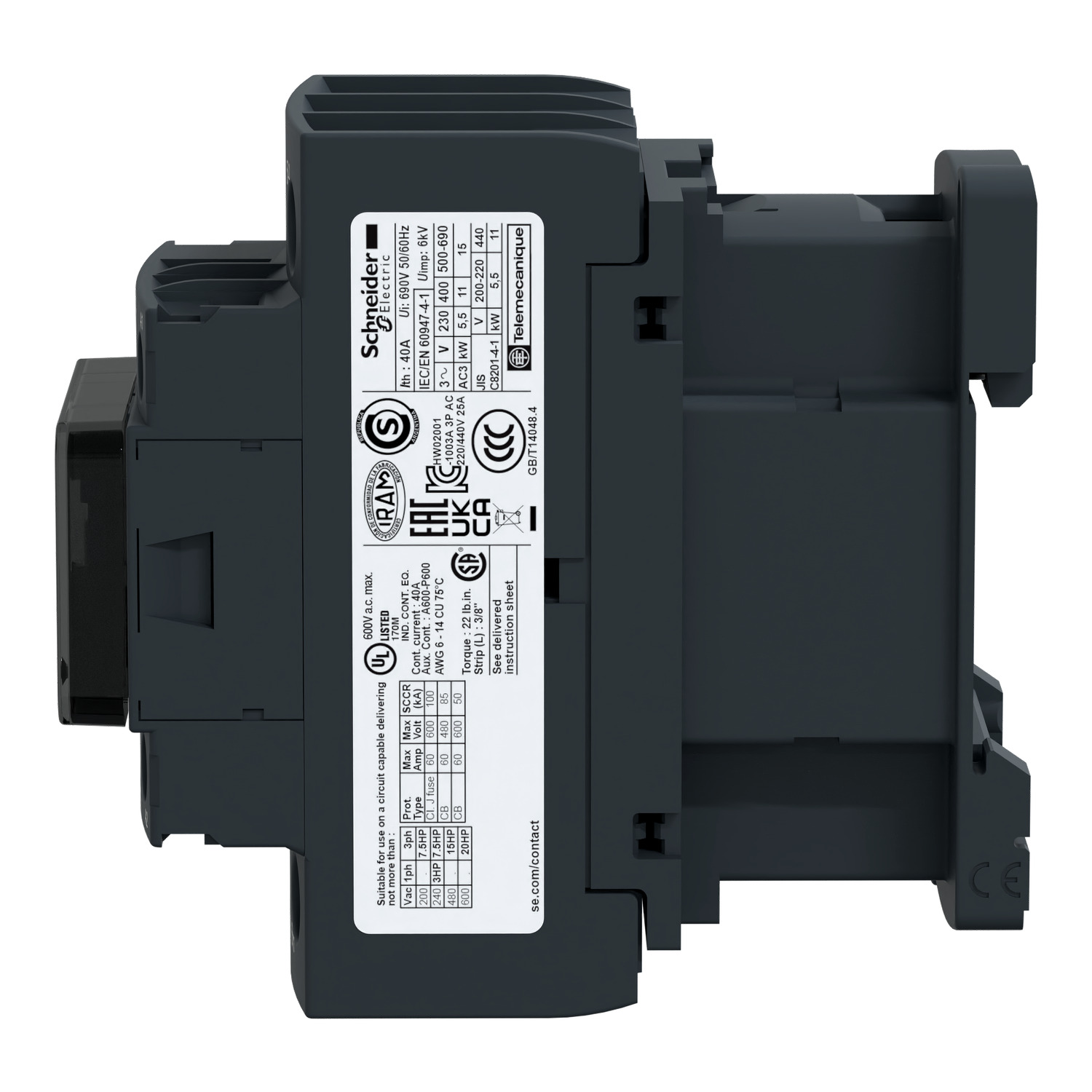

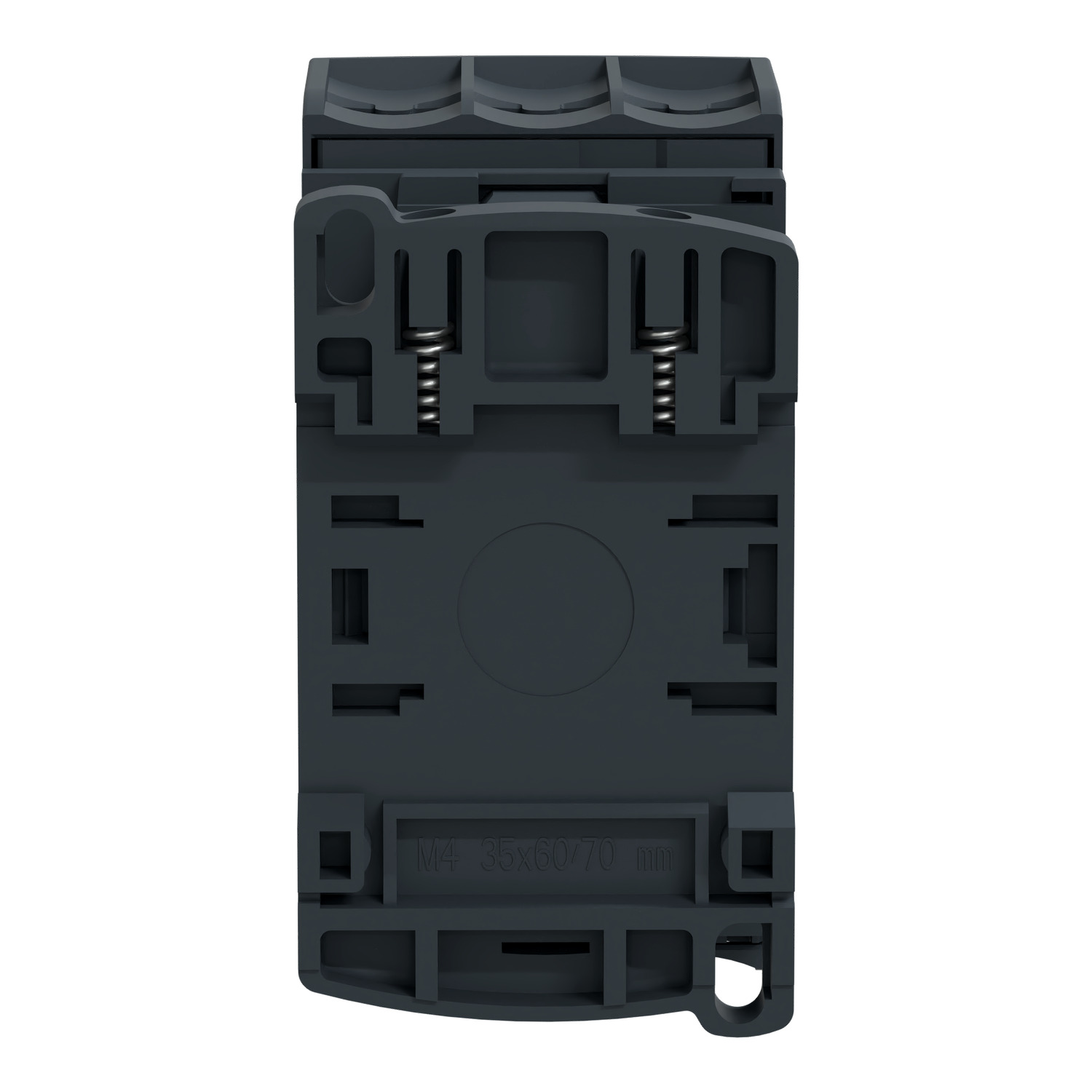

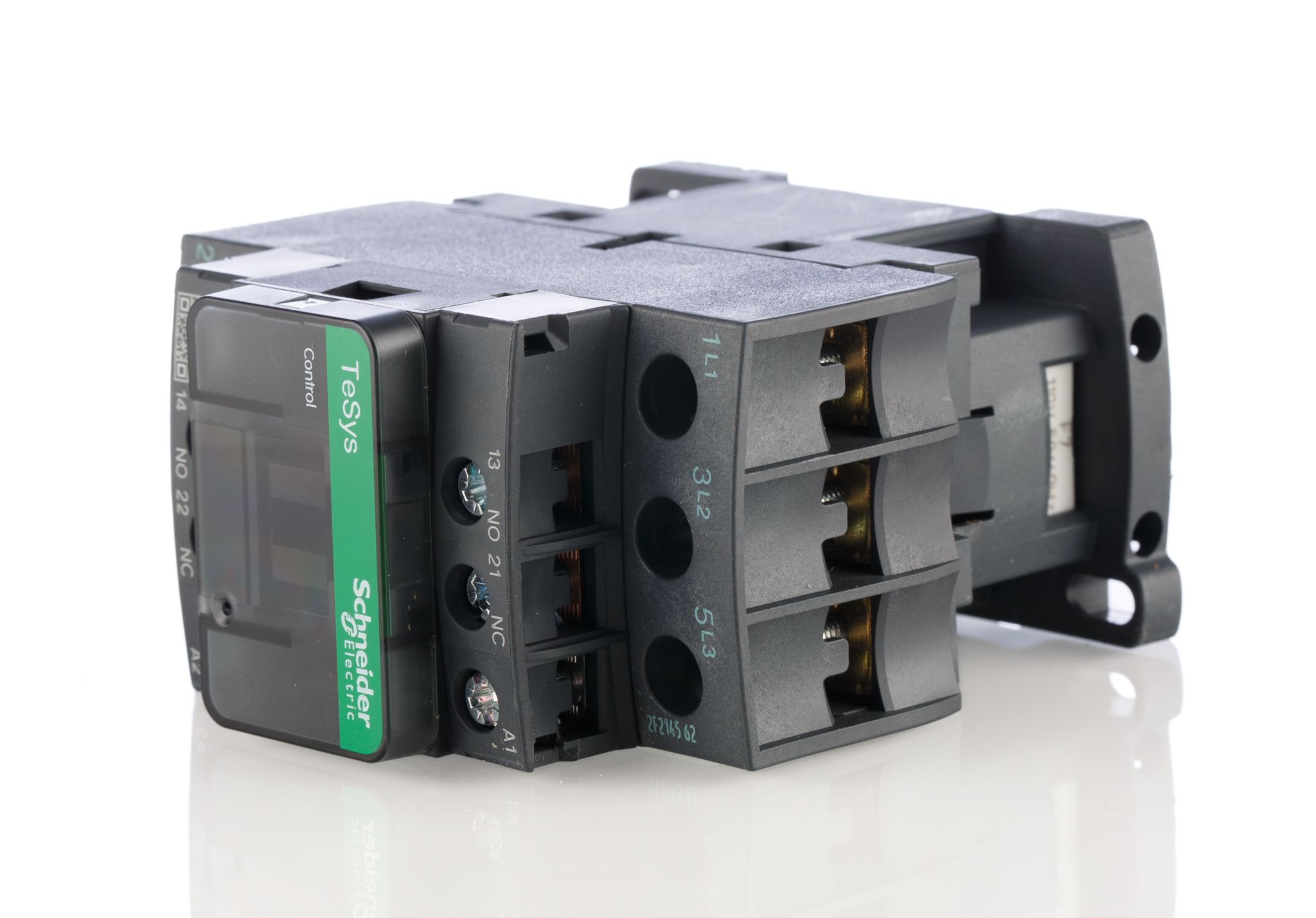

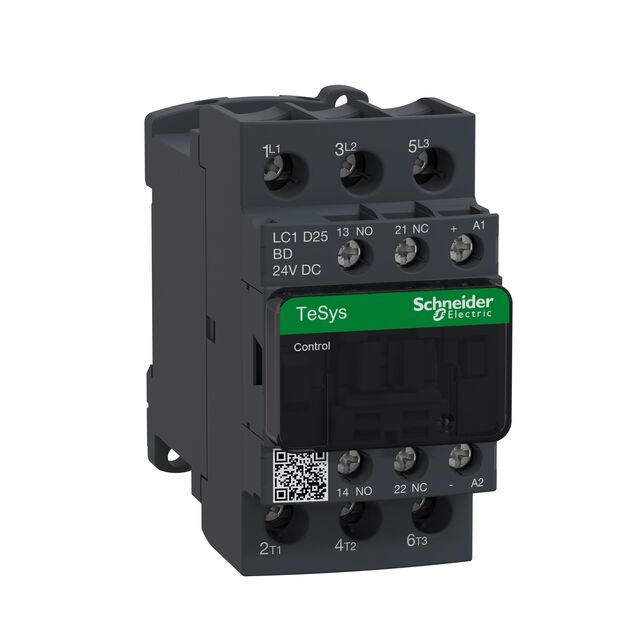

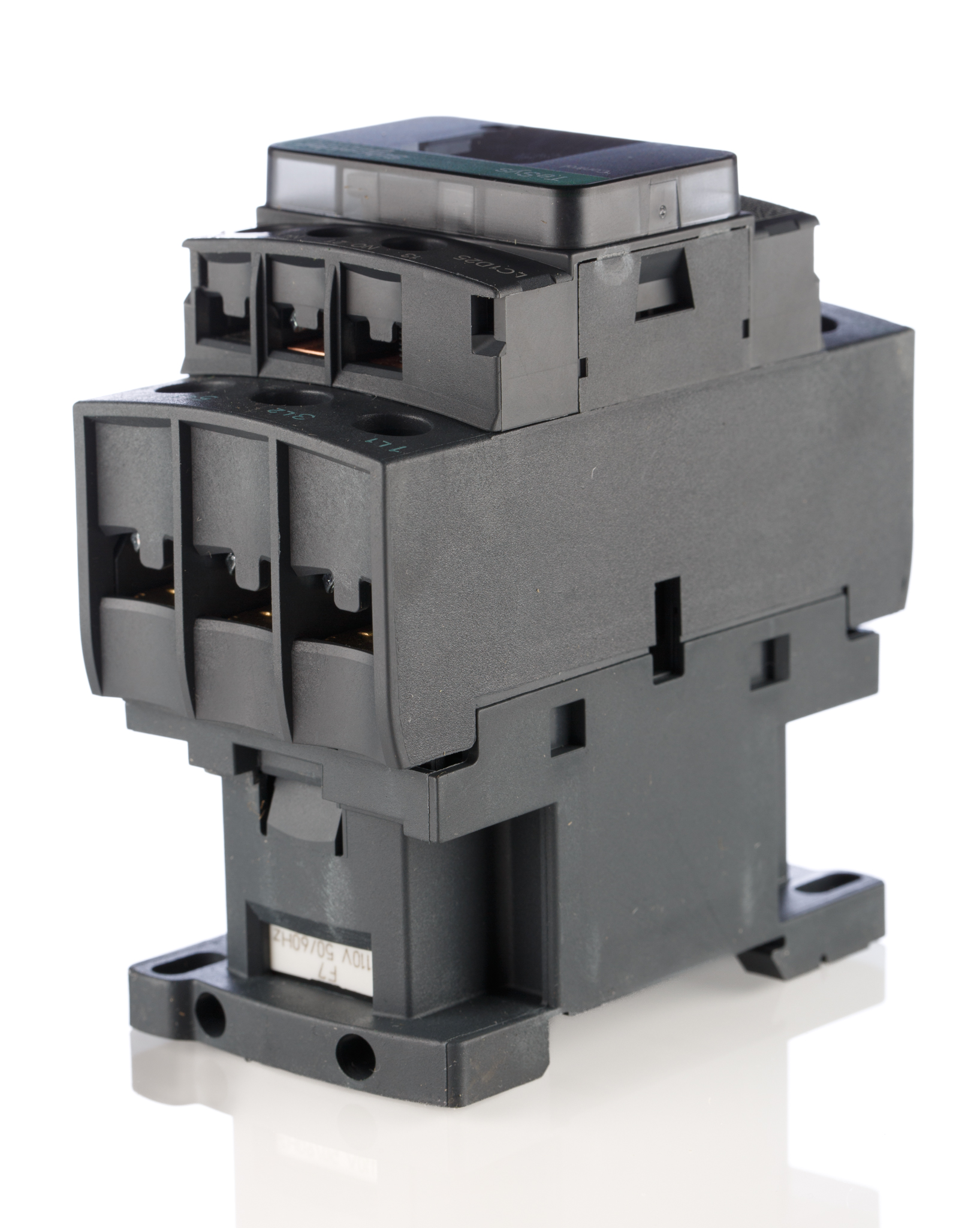

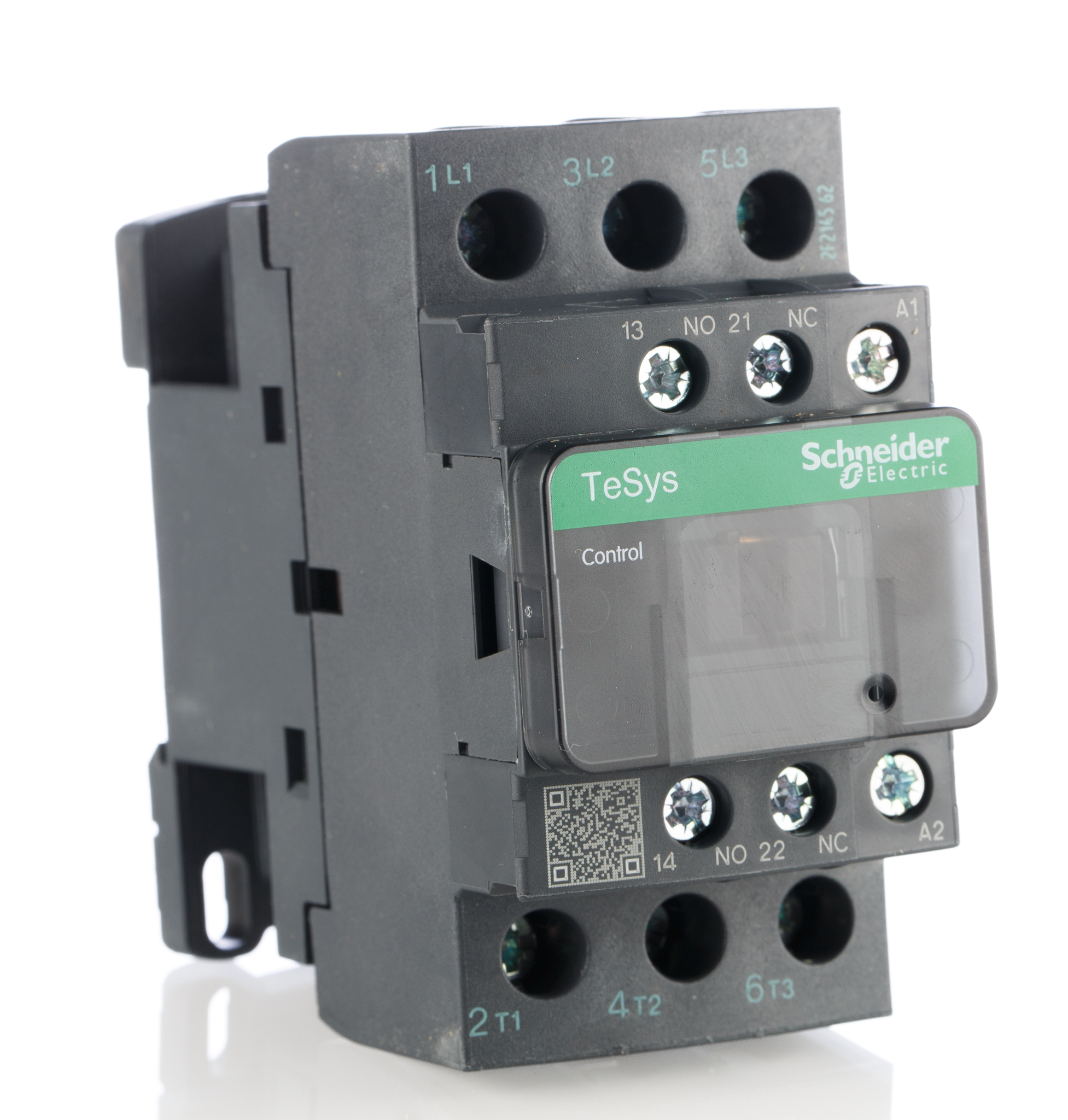

lc1d25bd Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 25 A, 11 kW, 24 V DC Coil
lc1d25bd Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 25 A, 11 kW, 24 V DC Coil
lc1d25bd Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 25 A, 11 kW, 24 V DC Coil
lc1d25bd Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 25 A, 11 kW, 24 V DC Coil
lc1d25bd Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 25 A, 11 kW, 24 V DC Coil
lc1d25bd Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 25 A, 11 kW, 24 V DC Coil

3 Pole Contactors, DC Controlled Built-in coil suppression 3 N/O poles Auxiliary contact configuration one N/O, one N/C Operating time closing 12 to 22 ms Operating time opening 4 to 19 ms Note Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2 contact version, they do not accept side mounted contacts. Approvals UL and CSA

RoHs Compliant

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 25 A, 11 kW, 24 V DC Coil

Manufacturer:
Schneider Electric
Manufacturer Part No:
LC1D25BD
Enrgtech Part No:
ET14050919
Warranty:
Manufacturer
£ 131.34 £ 91.94
Checking for live stock
Better World Verification:
Green Premium
Better World Product:
Yes
Maximum Operating Temperature:
+60°C
Contact Current Rating:
25 A
Series:
LC1D
Minimum Operating Temperature:
-40°C
Coil Voltage:
24 V dc
Length:
85mm
Width:
45mm
Depth:
99mm
Number Of Auxiliary Contacts:
2
Normal State Configuration:
3NO
Range:
TeSys D
Power Rating:
11 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
Terminal Type:
Screw
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:
LC1D25BD
Coil Power:
-
Must Operate Voltage:
16.8 VDC
Contact Form:
3PST-NO (3 Form A)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
72.45 ms
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
25 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC, 300VDC - Max
Release Time:
24 ms
Packaging:
Box
Contact Material:
-
pdf icon
Green Premium - Product Environmental Profile(Technical Reference)
pdf icon
Catalogue - Innovative and Connected Solutions for Motor Starters(Technical Reference)
pdf icon
Instruction Sheet - Series LC1D(Technical Reference)
pdf icon
Datasheet LC1D25BD(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
