Schneider Electric LC1D TeSys D Contactors. TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards. Features and Benefits.

  • Built-in auxiliary contacts for added switching capability.

  • Screw connections: IP20 finger-safe terminals with both North American and International terminal markings.

  • Can be panel mounted with screws or DIN Rail mounted.

  • Bidirectional peak limiting diode suppressor to protect the coil.

  • Easily installed accessories.

  • Flexible control circuit to suit a wide range of applications.
What does the utilisation category AC1 and AC3 mean for the TeSys contactors?
  • Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

  • AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

  • AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.
What accessories are available?
  • Auxiliary contact blocks with serrated wiping action.

  • Front mount dust tight auxiliary contact blocks.

  • Pneumatic time delay blocks.

  • Transient voltage surge suppressors.

  • Interface modules and electronic timers.

  • Mechanical latching blocks.
Is the TeSys D range a double break pole type contactor?
  • Yes, the Tesys D range uses linear translation movement that provides double breaking of the poles.

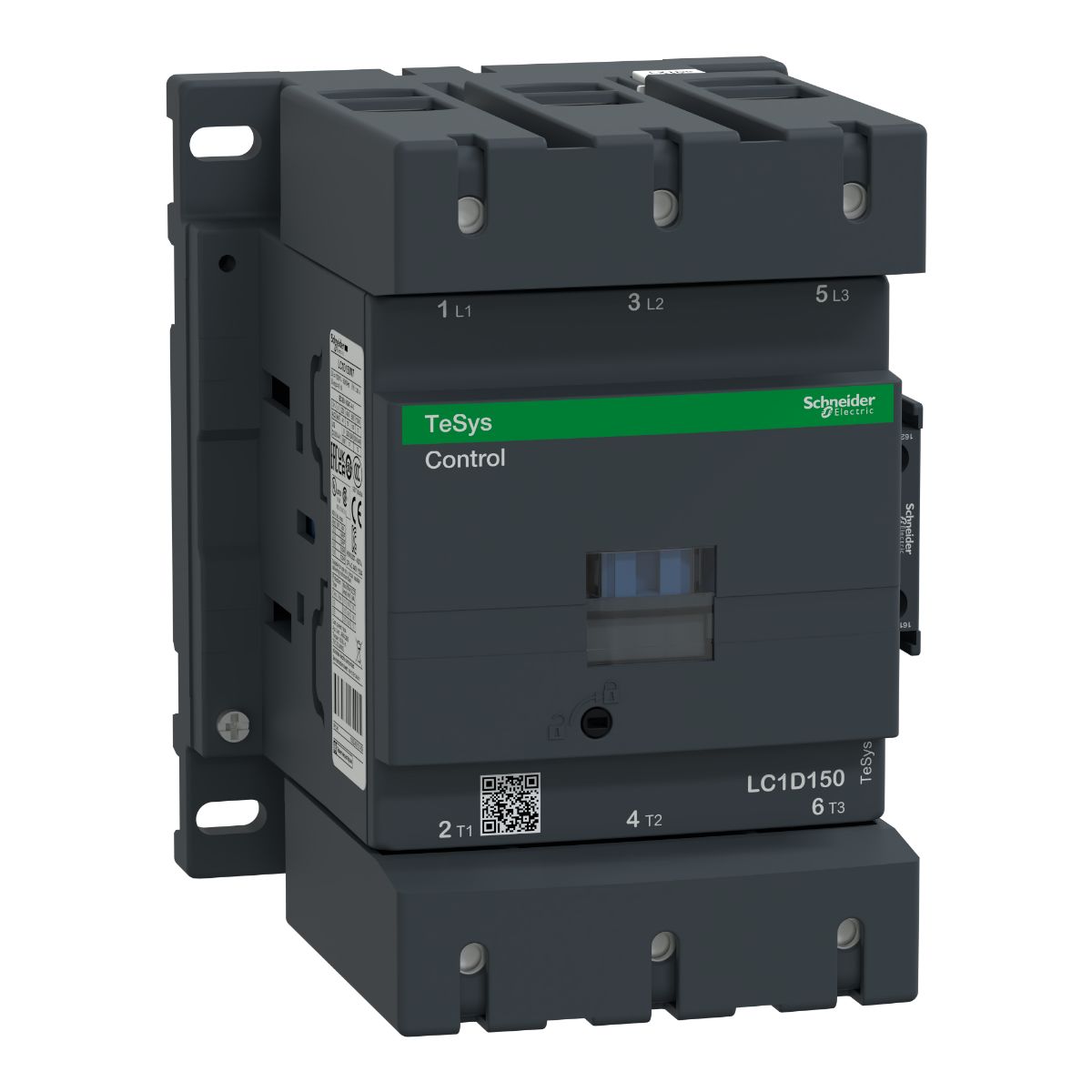

Schneider Electric TeSys D LC1D Contactor, 400 V ac Coil, 3-Pole, 150 A, 3NO, 1 kV ac, 690 V dc

Manufacturer:
Manufacturer Part No:
LC1D150N7
Enrgtech Part No:
ET5024290
Warranty:
Manufacturer
Checking for live stock
Coil Voltage:
400 V ac
Number of Poles:
3
Contact Voltage Rating:
1 kV ac, 690 V dc
Contact Current Rating:
150 A
Range:
TeSys D
Series:
LC1D
Normal State Configuration:
3NO
Auxiliary Contact Configuration:
1NO + 1NC
Number Of Auxiliary Contacts:
2
Terminal Type:
Screw
Length:
158mm
Width:
120mm
Depth:
136mm
Better World Product:
Yes
Better World Verification:
Green Premium
pdf icon
Datasheet - LC1D150N7-863aa10d(datasheets)
pdf icon
Green Premium - Product Environmental Profile-069db007(datasheets)
pdf icon
Product Environmental Profile-f7d903d0(datasheets)
