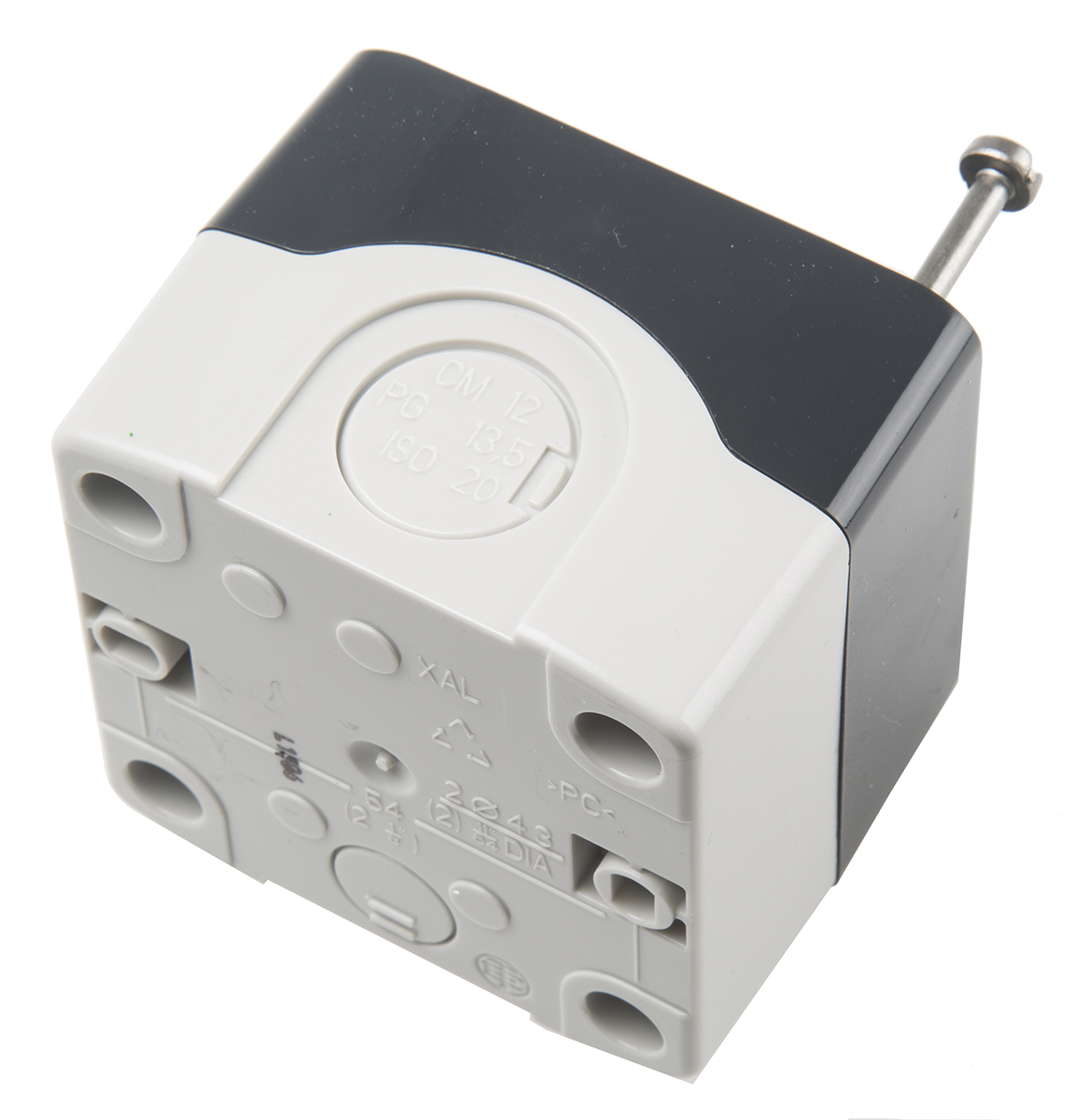

Spring Return Enclosed Push Button - SPST, Polycarbonate, Red, O

Series:

Harmony XALD

Push Button Marking:

O

Push Button Colour:

Red

Enclosure Colour:

Dark Grey/Light Grey

Contact Configuration:

SPST

Enclosure Material:

Polycarbonate

Cutout Diameter:

22mm

Push Button Actuation:

Spring Return

Length:

68mm

Width:

68mm

Depth:

62mm

Better World Product:

Yes

Better World Verification:

Green Premium

Maximum Current:

10A

Maximum DC Voltage:

600V

Minimum Operating Temperature:

-25°C

Maximum AC Voltage:

600V

Terminal Type:

Screw

Maximum Operating Temperature:

+70°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=147931&DisplayLogo=False
