Hour meters
These electronic, 6-digit hour meters use the new indelible E2PROM memory and work without batteries. They are ideal for equipment in harsh environments.
They are entirely static, sealed (IP65 on the front face) and feature an electrical zero reset.
These meters display information as soon as power is supplied and count when a positive signal is applied.
The ''hourglass'' symbol flashes to indicate that time is being counted.
Applications: industry, aeronautics, marine, IT, medical, etc.
10 year data retention.
Module version for integration.
They are entirely static, sealed (IP65 on the front face) and feature an electrical zero reset.
These meters display information as soon as power is supplied and count when a positive signal is applied.
The ''hourglass'' symbol flashes to indicate that time is being counted.
Applications: industry, aeronautics, marine, IT, medical, etc.
10 year data retention.
Module version for integration.

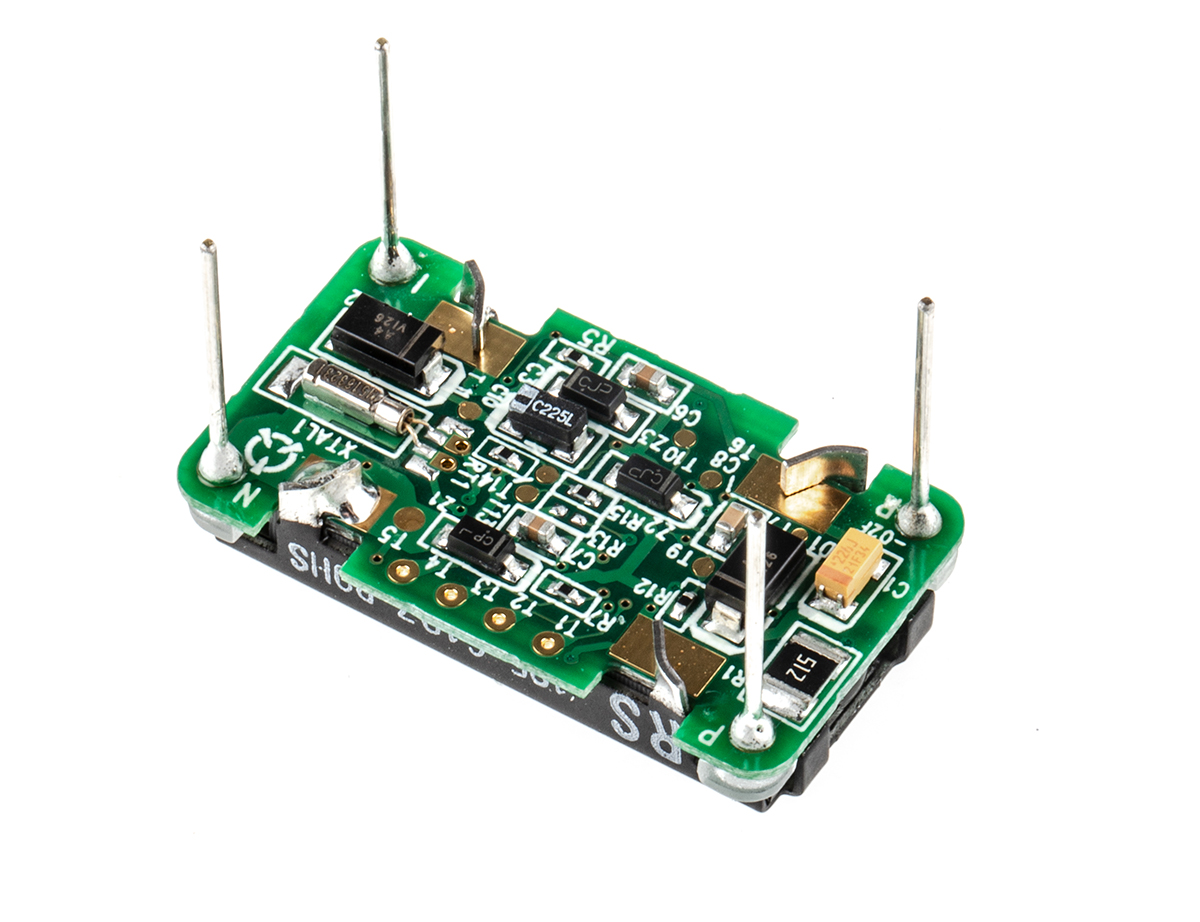

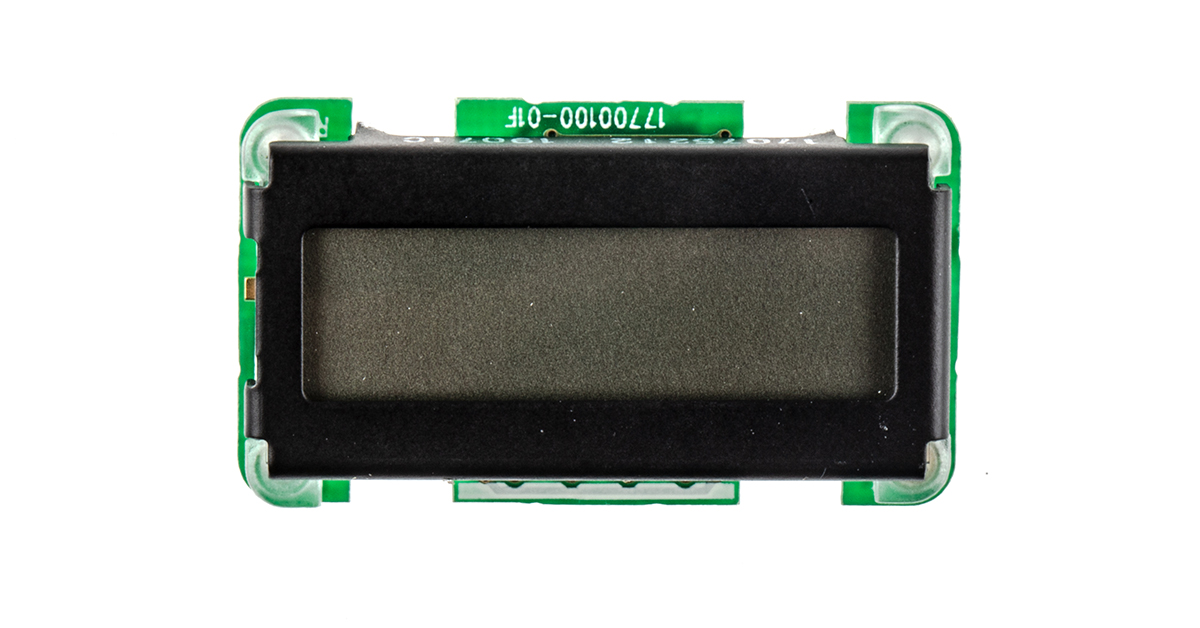

Hour Meter, 6 Digit LCD, 12 → 48 V dc, 20 → 60 V ac
Manufacturer:
Curtis
Manufacturer Part No:
701PR001O-1248D2060A
Enrgtech Part No:
ET13812665
Warranty:
Manufacturer
£ 24.48
Checking for live stock
Supply Voltage:
12 → 48 V dc, 20 → 60 V ac
Display Type:
LCD
Function:
Hour Meter
Connection Type:
Solder Pin
Reset Method:
Electrical
Number of Digits:
6
Mounting Type:
PCB Mount
Digit Height:
5 mm
Display Range:
0 → 99999.9
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
Measurement Range:
0 → 99999.9
