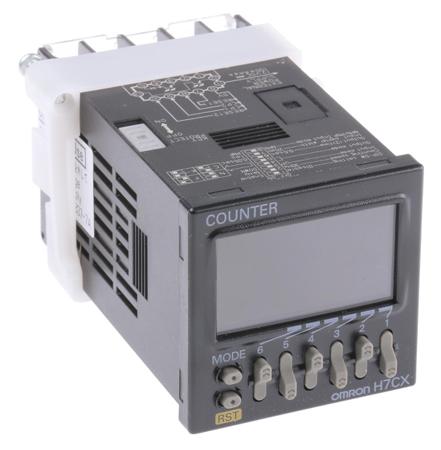

Ultra Compact Multifunction Counter / Tachometer - Series H7CX H57CX series of ultra-compact preset multi function counters/tachometers provide complete functionality in a wide range of applications.Features and Benefits Features and Benefits • Three-colour display value red, green or orange (except H7CX-A11 models) • Increased character height and display segments (10 mm) • Simple operation using UP/DOWN keys for digits • Twin counter-mode • Reliable - setting upper limit restricts the set time and helps prevent incorrect settings • Service Life Notification - the number of times that the control output turns ON is counted and an alarm is displayed when a preset count is exceeded • Input contact NPN or PNP

Omron 6 Digit, LCD, Digital Counter, 5kHz, 12 → 24 V dc, 24 V ac

Manufacturer:
Manufacturer Part No:
H7CX-AUSD1-N
Enrgtech Part No:
ET13853728
Warranty:
Manufacturer
£ 360.67
Checking for live stock
Display Range:
-99999 → 999999
Maximum Count Frequency:
5kHz
Display Type:
LCD
Reset Method:
Automatic, Manual
Mounting Type:
Panel Mount
Weight:
130g
Series:
H7CX
Measurement Range:
-99999 → 999999
Number of Digits:
6
Digit Height:
10 mm
Count Mode:
Seconds
Supply Voltage:
12 → 24 V dc, 24 V ac
Input Type:
Voltage
Count Direction:
Bi-Directional
Output / Interface:
Transistor
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-25°C
Connection Type:
Screw
pdf icon
Datasheet(Technical Reference)
