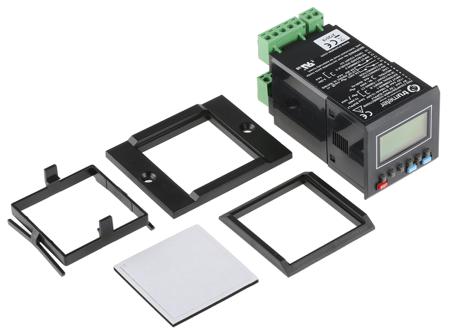

Trumeter Digital Counter The Trumeter 7932 series 6-digit super twist LCD, the programmable preset counter has Prescaler EEPROM data storage. It has a supply voltage rating ranges between 10VDC and 26VDC or 85VAC and 265VAC. It is available in 2 rows of 6 digits, super twist black on silver LCD with yellow/green LED backlight. The count inputs are opto-isolated and can be sink (NPN) or source (PNP). The count is on the main display and the preset value is on the lower display.
It has a maximum frequency count 10KHz. Features and Benefits Simple programming via menu driven display
Backlight programmable on, off or auto
Programmable decimal point up to 3 places
Remote reset method
12VDC output to drive a sensor (when AC powered)
Opto-isolated inputs
Wide range of prescaling
Output relay contacts rated at 5A
Output can be set to latch or pulse with programmable pulse duration
Standard DIN housing
Operation temperature ranges between -10°C and 60°C Applications Industrial counting applications
Control and monitoring systems
Manufacturing assembly line Certifications CE certified
UL approved
cUL approved
IP65 rated
