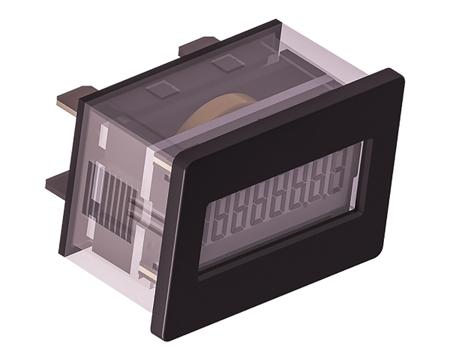

3410-2000 Trumeter Hour Counter, 8 digits, LCD, Spade Terminal Connection, MOSFET, 10 → 300 V dc, 20 → 300 V ac

Trumeter 3410 Series Hour Meters The 3410 Series provides a large display, with 7mm high characters, in industry standard housings. All models are totally sealed and capable of submersion in 2 metres of water. The hour meters accept a wide operating voltage of 10-300VDC and 20-300VAC. All models are IP66 (NEMA 4/4X, 12) rated when used with the included gasket and have a polarized lens which assures high visibility in an outdoor environment. 8 digit LCD display 7mm high characters Totally sealed from moisture and dirt AC or DC voltage input in the same unit Compact depth Fits in existing panel openings Always on display Choice of 5 housings Choice of reset modes Self-powered 15+ year battery life Note 849-4646 is 2-hole panel mount, non-reset 849-4655 is a 2-hole panel mount, with remote reset 849-4658 is a rectangular flush mount, with remote reset 849-4652 is a round SAE flush mount, with remote reset 882-6948 is a 3-hole panel mount, non-reset 882-6942 is a rectangular flush mount, non-reset 882-6951 is a round SAE flush mount, non-reset

For more information please check the datasheets.

Trumeter Hour Counter, 8 digits, LCD, Spade Terminal Connection, MOSFET, 10 → 300 V dc, 20 → 300 V ac

Name: Trumeter Hour Counter, 8 digits, LCD, Spade Terminal Connection, MOSFET, 10 → 300 V dc, 20 → 300 V ac
Brand: Trumeter
SKU: ET13920102
Availability: InStock

Manufacturer:

Trumeter

Manufacturer Part No:

3410-2000

Enrgtech Part No:

ET13920102

Warranty:

Manufacturer

£ 40.13

Checking for live stock

Cutout Size:

36.8 x 24.1 mm

Count Mode:

Hours

Supply Voltage:

10 → 300 V dc, 20 → 300 V ac

Input Type:

Voltage

Output / Interface:

MOSFET

Function:

Hour Meter

Minimum Measurement:

Reset Method:

No Reset

Count Direction:

Bi-Directional

Number of Digits:

Cutout Height:

24.1mm

Meter Type:

Electronic

3410 Datasheet(Technical Reference)

NOTICE – This product is not for general use by consumers(Technical Reference)

UN38.3 Lithium Battery Test Summary(Technical Reference)

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4(Technical Reference)
