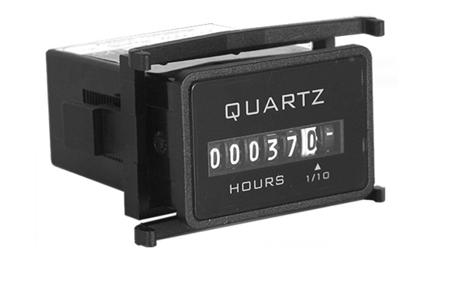

722-0002 Trumeter Hour Counter, 6 digits, Mechanical, Spade Terminal Connection, Voltage, 90 → 264 V ac

Trumeter 722 Series Hour Meters The 722 series of Hour Meters have an operating range of 9-264V ac 50/60Hz. Models are available in the standard industry housings and are quartz time based to ensure accurate long-term time keeping. The totally sealed cases of these Hour Meters protects against the environment and provides years of reliable service. 6 Figures 3.6mm high Operating voltage 90-264V ac Totally sealed Non-reset Clip or mounting holes Quartz accuracy Minimum 36 second on-time for event capture NEMA 4x rated

For more information please check the datasheets.

Trumeter Hour Counter, 6 digits, Mechanical, Spade Terminal Connection, Voltage, 90 → 264 V ac

Name: Trumeter Hour Counter, 6 digits, Mechanical, Spade Terminal Connection, Voltage, 90 → 264 V ac
Brand: Trumeter
SKU: ET14028683
Availability: InStock

Manufacturer:

Trumeter

Manufacturer Part No:

722-0002

Enrgtech Part No:

ET14028683

Warranty:

Manufacturer

£ 29.55

Checking for live stock

Cutout Size:

36.8 x 24.1 mm

Count Mode:

Hours

Supply Voltage:

90 → 264 V ac

Input Type:

Voltage

Output / Interface:

Voltage

Function:

Hour Meter

Minimum Measurement:

Reset Method:

No Reset

Approvals:

12 Compliant, CE, cUL, NEMA 4x, RoHS Compliant, SAE, UL

Number of Digits:

Cutout Height:

24.1mm

Meter Type:

Electromechanical

722 Datasheet(Technical Reference)
