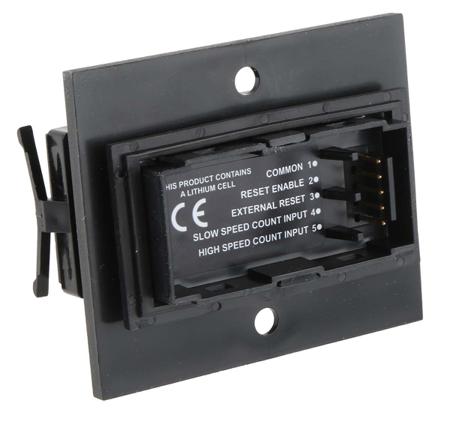

LCD Totalizer Counter- 7110DIN 8 Digit LCD totalising counters are powered by their own intergral lithium batteries. The counters have a front panel reset pushbutton which can be enabled or disabled by a wiring connection or extrernal contact closure. 7mm 8 digit LCD display Counting up to 10kHz Contact closure/open collector low speed count input with integral de-bounce circuitry Choice of mounting- front panel with supplied bezel or rear mounting clip IP65 (front panel only) Expected battery life 10+ years Trumeter LCD Counter

Trumeter 8 Digit, LCD, Counter, 10kHz, 48 → 240 V ac/dc, 5 → 48 V ac/dc

Manufacturer:
Manufacturer Part No:
7110DIN
Enrgtech Part No:
ET14128208
Warranty:
Manufacturer
£ 67.30
Checking for live stock
Cutout Size:
45.5 x 22.5 mm
Count Mode:
Pulse
Input Type:
Voltage
Output / Interface:
CMOS
Function:
Counter
Reset Method:
External, Manual, Negative Edge Triggered, Push Button
Approvals:
CE, cULus
Number of Digits:
8
Cutout Height:
22.5mm
Maximum Operating Temperature:
+60°C
Meter Type:
Electronic
Measurement Range:
0 → 99999999
Digit Height:
7 mm
Depth:
24mm
Display Type:
LCD
Cutout Width:
45.5mm
Mounting Type:
Panel Mount
Series:
7110
Minimum Operating Temperature:
-10°C
Maximum Count Frequency:
10kHz
Connection Type:
Screw
pdf icon
NOTICE – This product is not for general use by consumers(Technical Reference)
pdf icon
7110DIN 8 Digit LCD Self Powered Counter Data Sheet(Technical Reference)
pdf icon
7110DIN Manual(Technical Reference)
pdf icon
UN38.3 Lithium Battery Test Summary(Technical Reference)
pdf icon
Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4(Technical Reference)
