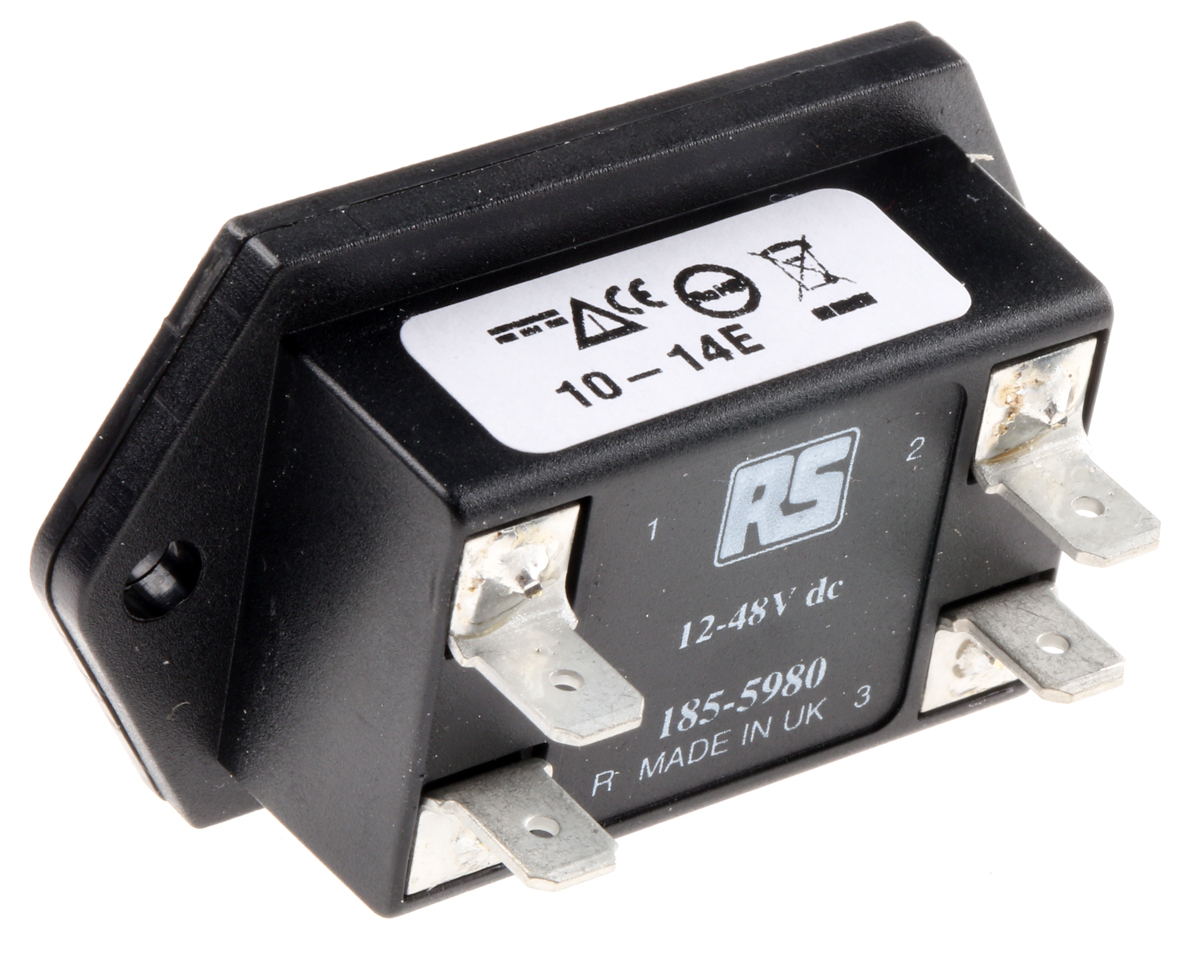

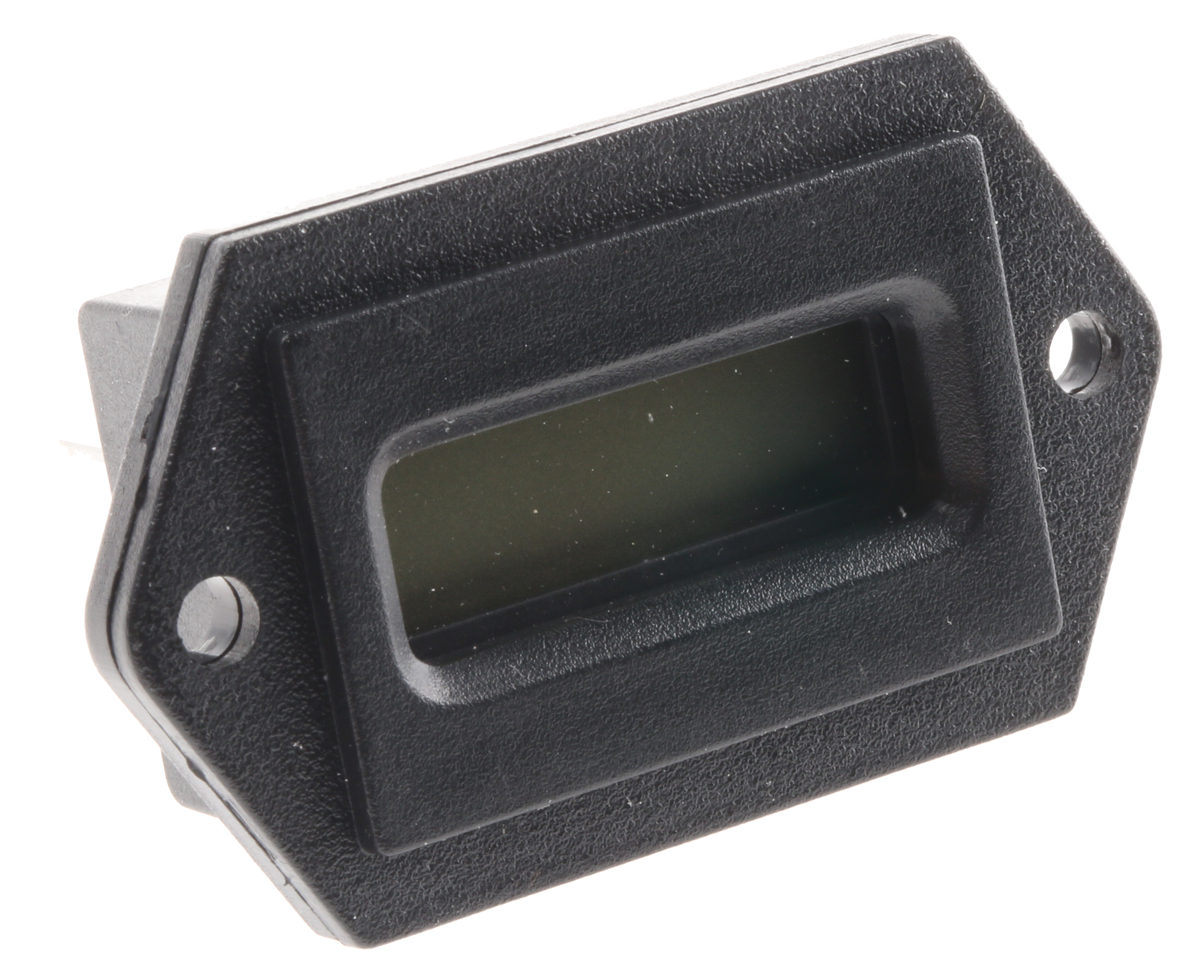

Curtis Digital Counter
The Curtis CD703 series digital counter is an impulse, flange mount device. This counter has a voltage input device and has a 6-digit LCD display. This counter's electrical supply voltage rating ranges between 12VDC and 48VDC. It has a maximum count frequency of 500Hz.
Features and Benefits
Pulse variation can be programmed from -9999999 and 99999999
Tab terminal connection
2-wire operation (3-wire using reset)
Remote reset facility
Panel cut out dimensions are rectangular - 45.2mm x 22.4mm, hexagonal - 36.8mm x 24.1mm, round - 52mm diameter
Operating temperature ranges between -40°C and 85°C Applications Industrial counting applications
Control and monitoring systems
Manufacturing assembly line
Tab terminal connection
2-wire operation (3-wire using reset)
Remote reset facility
Panel cut out dimensions are rectangular - 45.2mm x 22.4mm, hexagonal - 36.8mm x 24.1mm, round - 52mm diameter
Operating temperature ranges between -40°C and 85°C Applications Industrial counting applications
Control and monitoring systems
Manufacturing assembly line
Counter, 6 Digit LCD, 500Hz, 12 → 48 V dc
Manufacturer:
Curtis
Manufacturer Part No:
703TXR002N-1248D
Enrgtech Part No:
ET16789629
Warranty:
Manufacturer
£ 32.74
Checking for live stock
Supply Voltage:
12 → 48 V dc
Count Mode:
Impulses
Display Type:
LCD
Input Type:
Voltage
Function:
Counter
Connection Type:
Tab
Reset Method:
Electrical
Number of Digits:
6
Mounting Type:
Flange Mount
Count Direction:
Up
Digit Height:
5 mm
Maximum Count Frequency:
500Hz
