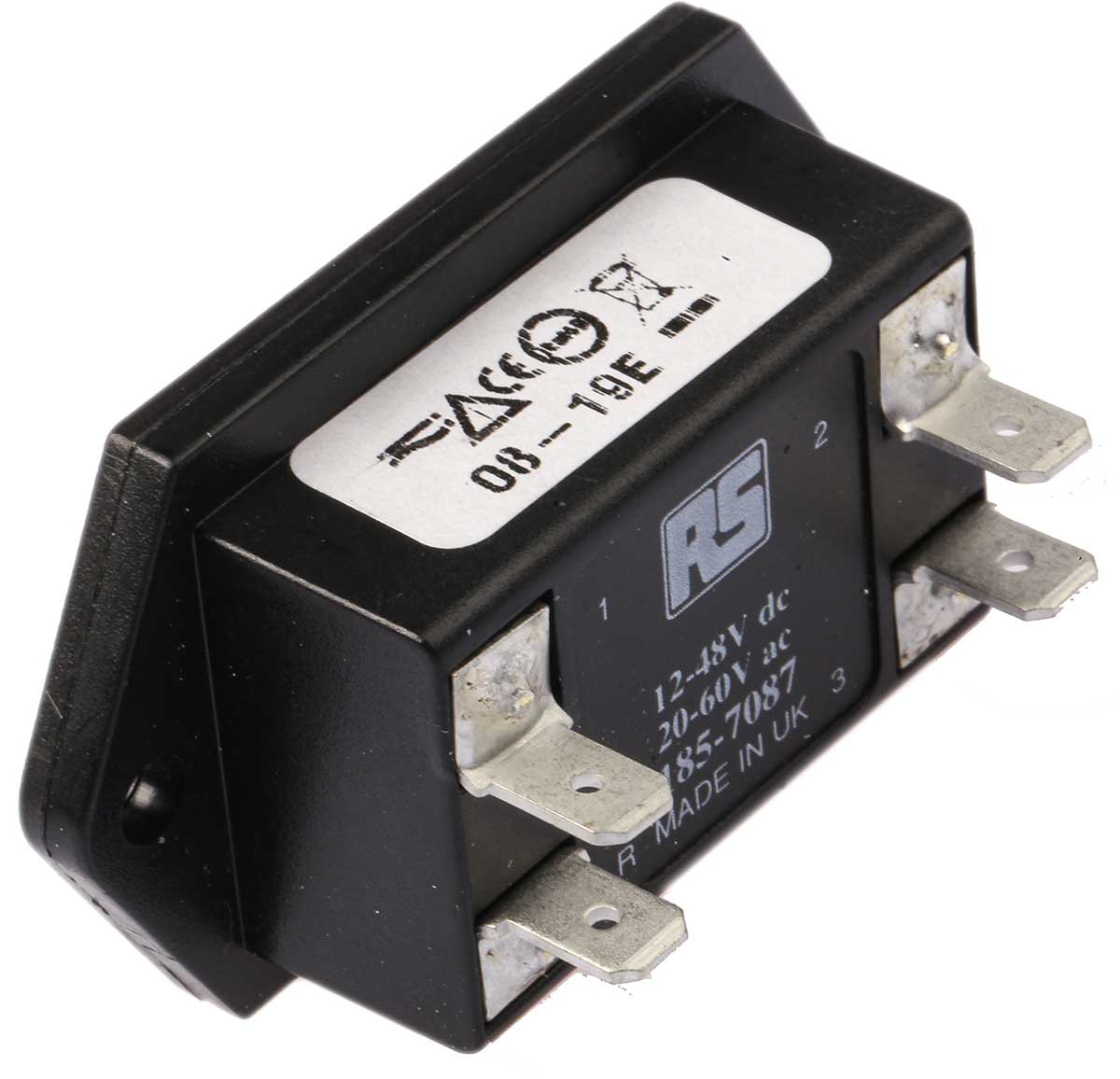

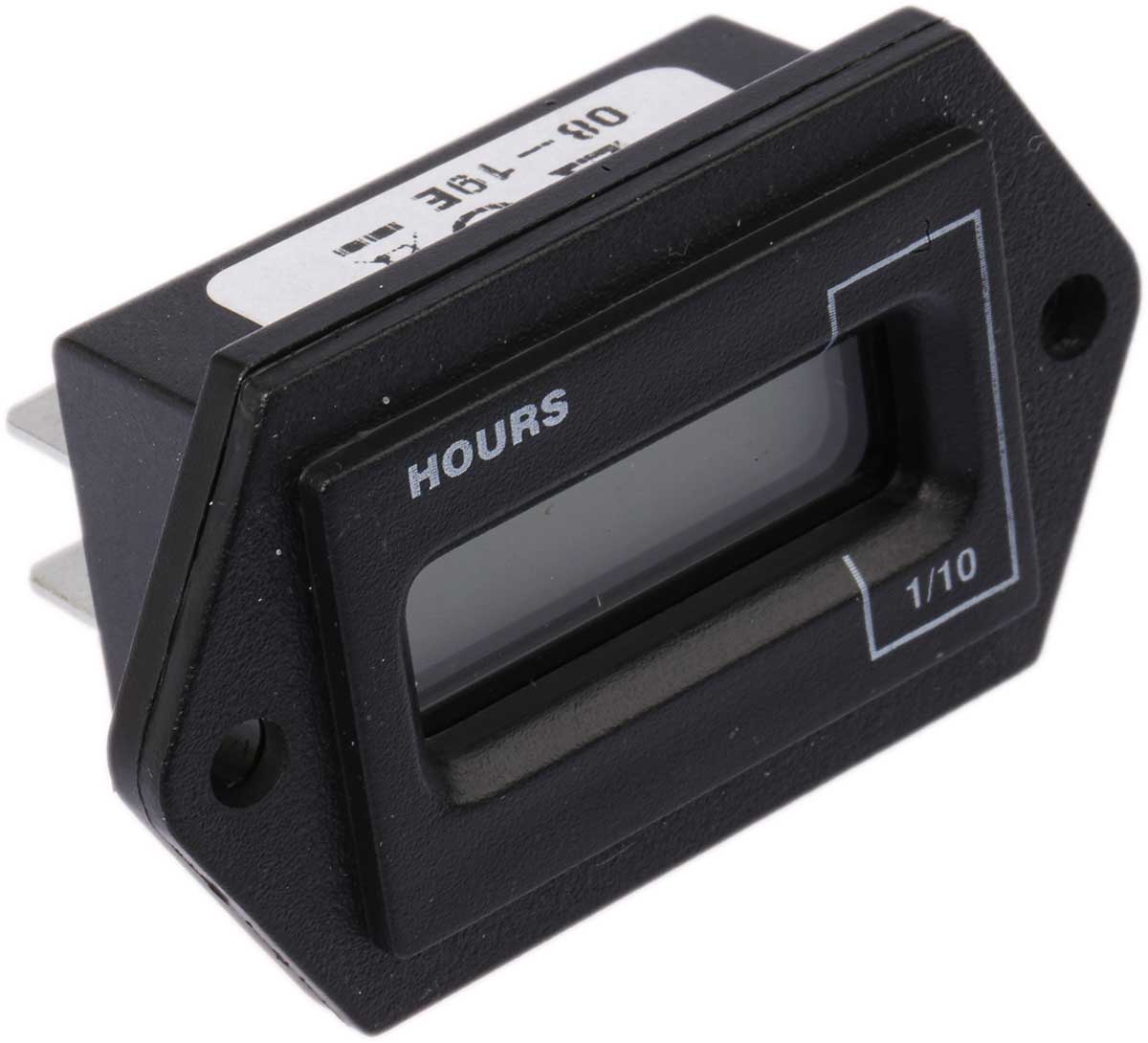

Curtis Digital Hour Meter
The Curtis hour meter is a 6-digit LCD display without backlighting, solid-state, panel-mount device with tab connection. It has a voltage rating ranges between 12VDC and 48VDC or 20VAC and 60 VAC.
Features and Benefits
3-wire connection
Resettable
Case style is T shaped
Electrical reset method
Measurement ranges between 0 and 99999.9
Operation temperature ranges between -40°C and 85°C Applications Automobile industry
Marine application Certifications CE certified
UL approved
Resettable
Case style is T shaped
Electrical reset method
Measurement ranges between 0 and 99999.9
Operation temperature ranges between -40°C and 85°C Applications Automobile industry
Marine application Certifications CE certified
UL approved
Hour Meter, 6 Digit LCD, 12 → 48 V dc, 20 → 60 V ac
Manufacturer:
Curtis
Manufacturer Part No:
701TXR002N-1248D2060A
Enrgtech Part No:
ET16827554
Warranty:
Manufacturer
£ 36.57
Checking for live stock
Supply Voltage:
12 → 48 V dc, 20 → 60 V ac
Display Type:
LCD
Input Type:
Voltage
Function:
Hour Meter
Connection Type:
Tab
Reset Method:
Electrical
Number of Digits:
6
Mounting Type:
Panel Mount
Digit Height:
5 mm
Display Range:
0 → 99999.9
Minimum Operating Temperature:
-40°C
Measurement Range:
0 → 99999.9
