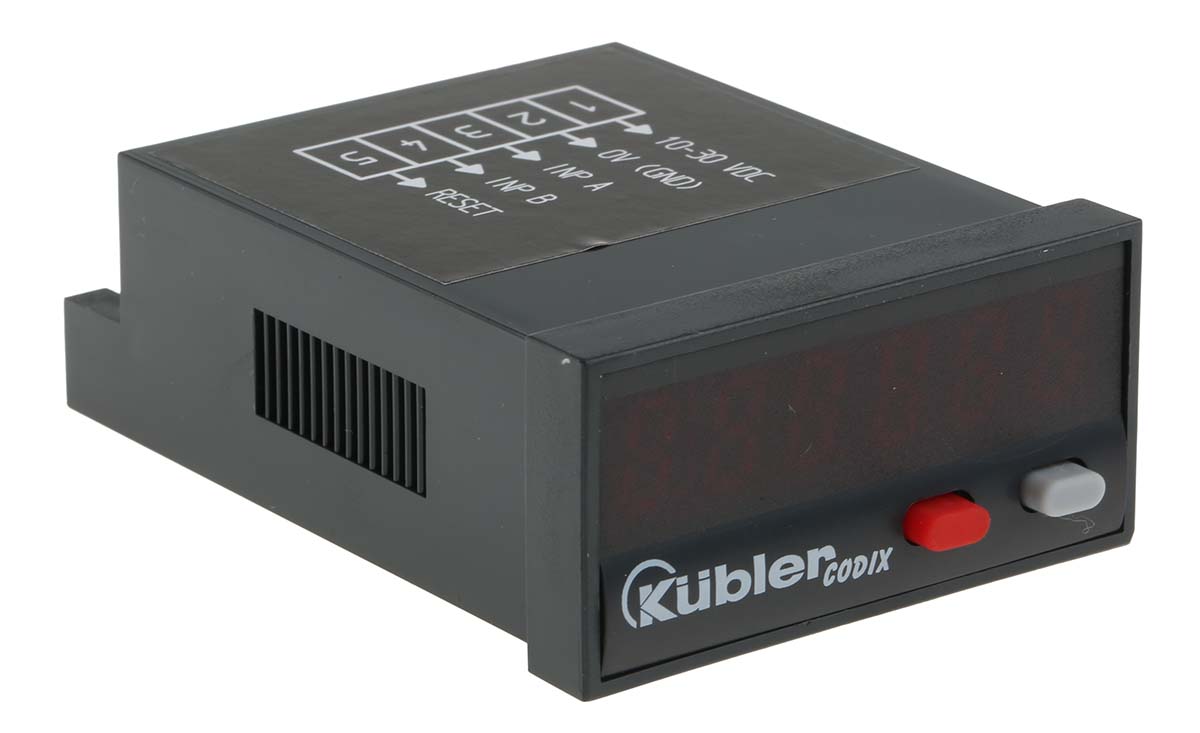

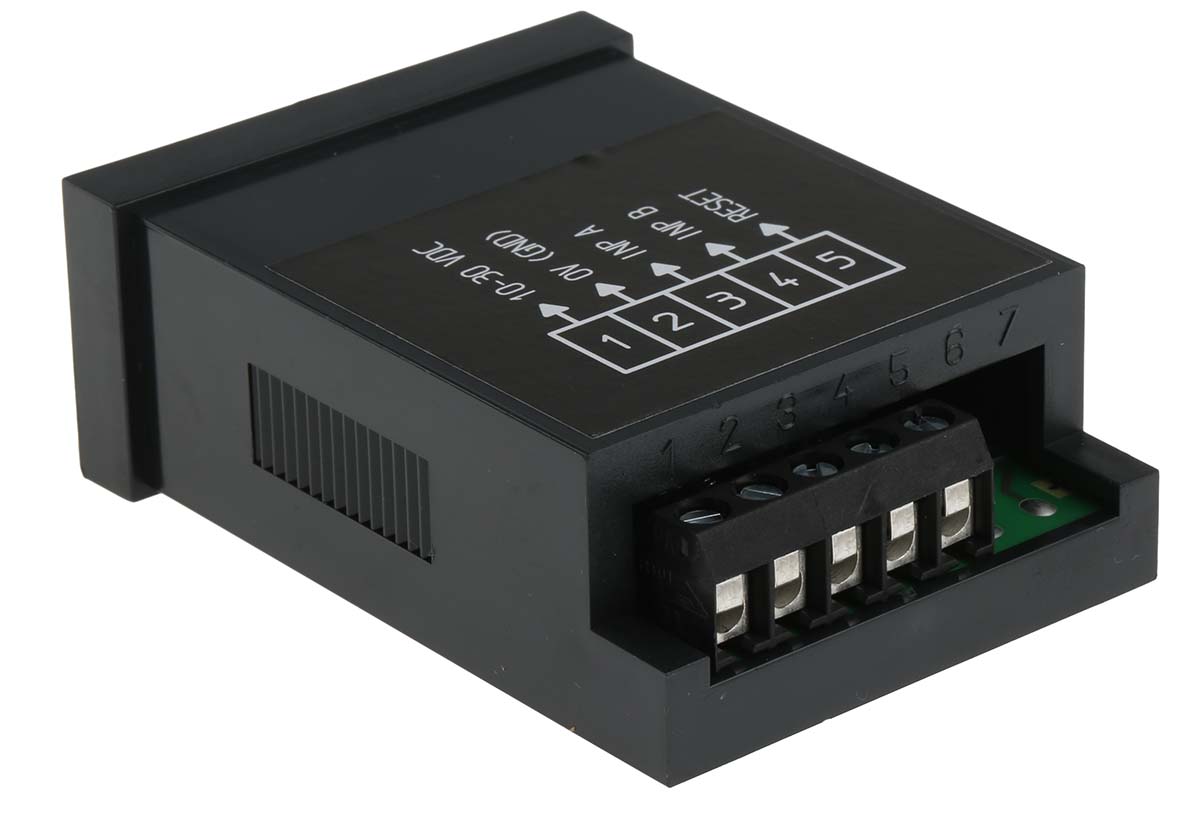

Kubler Counter The Kubler CODIX 522 series digital counter is a simple voltage is a powered panel mount frequency display tachometer. This counter displays in 1/min or 1/sec, freely scalable, for fast and slow count pulses, with 6-digit LED display for NPN, PNP input signals, with a fast HRA measurement system (High Rate Accuracy). The voltage rating range between 10VDC and 30VDC. This counter has a maximum count frequency of 60KHz. Features and Benefits The large, ergonomic buttons allow easy operation
Decimal point selectable
All set-up parameters are programmable via two front keys
Operating temperature ranges between -20°C and 65°C Applications Rotary speed applications
OEM equipment for flow rate measuring
Speed applications on motors, turbines and machines feed-rate measurement
Recording of production rates
Frequency measurement Certifications EN 55011 class B
EN 61000-6-2
IP65 rated
