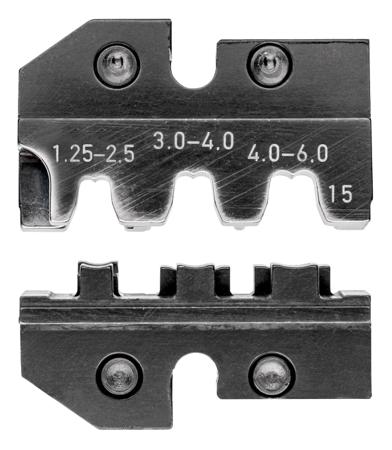

Crimp Die Set 97 49 15
Crimp die set for system tool KNIPEX 97 43 200 (stock no. 336-8084)
For crimping uninsulated, open connectors, 6.3 mm wide
The front profile is for flag terminals (angled blade terminals) 1.25 → 2.5 mm2
The centre profile is for straight plugs, 3 → 4 mm2
The back profile is for straight plugs, 4 → 6 mm2
For crimping uninsulated, open connectors, 6.3 mm wide
The front profile is for flag terminals (angled blade terminals) 1.25 → 2.5 mm2
The centre profile is for straight plugs, 3 → 4 mm2
The back profile is for straight plugs, 4 → 6 mm2
, 97 Crimping Die Set, Open Plug Type
Manufacturer:
Knipex
Manufacturer Part No:
97 49 15
Enrgtech Part No:
ET14129657
Warranty:
Manufacturer
£ 175.60
Checking for live stock
Crimp Connector Type:
Open Plug Type
Minimum Wire Size mm²:
1mm²
Maximum Wire Size mm²:
6mm²
Maximum Wire Size AWG:
10AWG
Terminal Insulation:
Uninsulated
Number of Ports:
3
For Use With:
Universal crimping plier - 97 43 200
Series:
97
