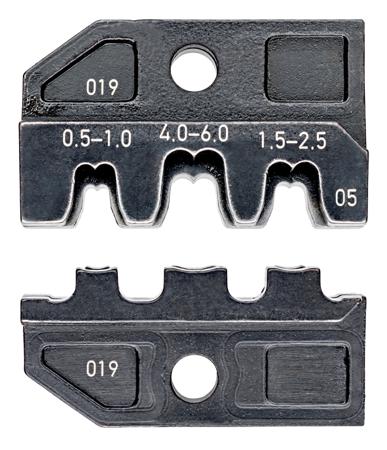

Crimping die 97 49 04/05 and positioning aid 97 49 94
Crimping die for system tool KNIPEX 97 43 200
For crimping uninsulated, open plug connectors
Roll crimping with
-97 49 04: 2.8 mm and 4.8 mm width / 0.1 mm2 to 2.5 mm2
-97 49 05: 4.8 mm and 6.3 mm width/0.5 mm2 → 6 mm2
A positioning aid for the correct connector position can be supplied on request
Dies are bronzed and stamped with the max. cable cross-section
For crimping uninsulated, open plug connectors
Roll crimping with
-97 49 04: 2.8 mm and 4.8 mm width / 0.1 mm2 to 2.5 mm2
-97 49 05: 4.8 mm and 6.3 mm width/0.5 mm2 → 6 mm2
A positioning aid for the correct connector position can be supplied on request
Dies are bronzed and stamped with the max. cable cross-section
, 97 Crimping Die Set, Open Plug Type
Manufacturer:
Knipex
Manufacturer Part No:
97 49 05
Enrgtech Part No:
ET16827650
Warranty:
Manufacturer
£ 72.32
Checking for live stock
Crimp Connector Type:
Open Plug Type
Minimum Wire Size mm²:
0.5mm²
Maximum Wire Size mm²:
6mm²
Minimum Wire Size AWG:
20AWG
Maximum Wire Size AWG:
10AWG
Terminal Insulation:
Uninsulated
Number of Ports:
3
Series:
97
For Use With:
Universal crimping plier - 97 43 200
