SG8002 Crystal Oscillator
From Epson Toyocon, these programmable high-frequency crystal oscillators feature PPL technology for a wide frequency output, with the option for Stand-by Function (ST) or Output Enable Function (OE) for when low current consumption is a requirement.
The SG8002 series cyrstal oscillator has ceramic casing.
The SG8002 series cyrstal oscillator has ceramic casing.

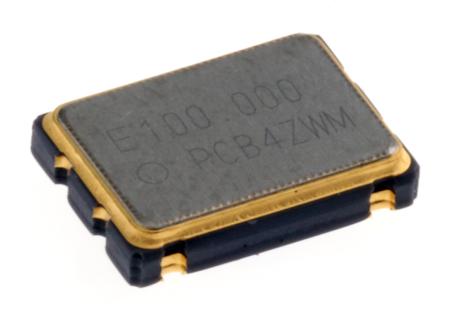

, 100MHz XO Voltage Controlled Oscillator, ±50ppm CMOS, 4-Pin SMD Q3309CA40021912
Manufacturer:
Epson
Manufacturer Part No:
Q3309CA40021912
Enrgtech Part No:
ET25803673
Warranty:
Manufacturer
£ 3.85
Checking for live stock
Oscillator Type:
XO
Output Frequency:
100MHz
Frequency Stability:
±50ppm
Package Type:
SMD
Output Level:
CMOS
Mounting Type:
Surface Mount
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
70°C
Height:
1.4mm
Width:
5mm
Length:
7mm
Dimensions:
7 x 5 x 1.4mm
