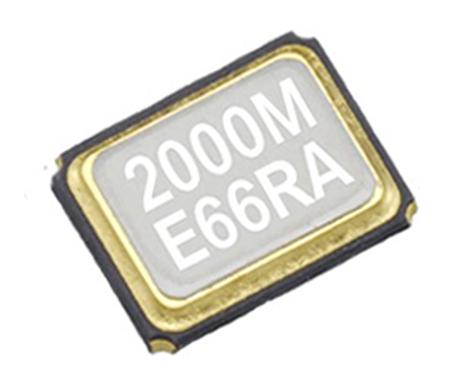

EPSON FA-238 Miniature SMD Crystal
FA-238 Series is a low profile surface mount crystal with a frequency range from 16 MHz to 60 MHz.
Features & Benefits:
Frequency range: 16 MHz to 60 MHz
External dimensions: 3.2 x 2.5 x 0.7 mm
Overtone order: Fundamental
Applications: Mobile phone, Bluetooth, W-LAN ISM band radio, Clock for MPU
External dimensions: 3.2 x 2.5 x 0.7 mm
Overtone order: Fundamental
Applications: Mobile phone, Bluetooth, W-LAN ISM band radio, Clock for MPU
25MHz Crystal Unit ±50ppm FA-238 4-Pin 3.2 x 2.5 x 0.7mm
Manufacturer:
Epson
Manufacturer Part No:
Q22FA2380014312
Enrgtech Part No:
ET14054356
Warranty:
Manufacturer
£ 0.88
Checking for live stock
Standard Frequency:
25MHz
Mounting Type:
Surface Mount
Load Capacitance:
18pF
Package Type:
FA-238
Pin Count:
4
Length:
3.2mm
Width:
2.5mm
Height:
0.7mm
Dimensions:
3.2 x 2.5 x 0.7mm
Frequency Tolerance:
±50ppm
Series Resistance:
60Ω
Minimum Operating Temperature:
-40°C
