TSX3225
FA-238 Series is a low profile surface mount crystal with a frequency range from 16 MHz to 48 MHz.
Features and Benefits
• Frequency range: 16 MHz to 48 MHz
• External dimensions: 3.2 x 2.5 x 0.6 mm
• Overtone order: Fundamental
• Applications: Mobile phone, Bluetooth, W-LAN ISM band radio, Clock for MPU
• External dimensions: 3.2 x 2.5 x 0.6 mm
• Overtone order: Fundamental
• Applications: Mobile phone, Bluetooth, W-LAN ISM band radio, Clock for MPU

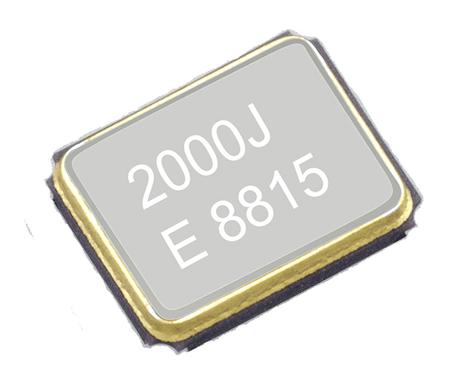

27.12MHz Crystal Unit ±10ppm TSX-3225 4-Pin 3.2 x 2.5 x 0.6mm
Manufacturer:
Epson
Manufacturer Part No:
X1E000021080512
Enrgtech Part No:
ET14154201
Warranty:
Manufacturer
£ 1.42
Checking for live stock
Standard Frequency:
27.12MHz
Mounting Type:
Surface Mount
Load Capacitance:
9pF
Package Type:
TSX-3225
Pin Count:
4
Length:
3.2mm
Width:
2.5mm
Height:
0.6mm
Dimensions:
3.2 x 2.5 x 0.6mm
Frequency Tolerance:
±10ppm
Series Resistance:
40Ω
Maximum Operating Temperature:
85°C
