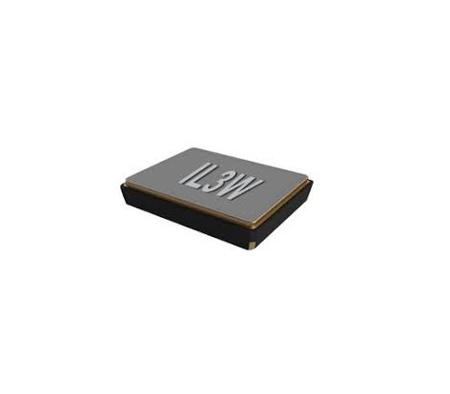

The IL3W series crystal has output frequency 32.768 kHz and it is available in SMD package. It provides ultra-low profile and compatible with lead-free processing . It is used as real time clock source and time reference. it is also used in metering and industrial control. It's operating temperature is-40°C to +85°C.
Equivalent Series Resistance 90 kOhms Maximum
Parabolic, -0.030ppm / ° C2 ± 0.010 ppm / ° C2
Turn over Temperature +25°C ±5°C
Mode of Operation Flexural
Crystal Cut Tuning Fork
Drive Level 0.1 μW Typical, 0.5 μWatt Maximum
Aging ±3ppmn Maximum / First Year
Parabolic, -0.030ppm / ° C2 ± 0.010 ppm / ° C2
Turn over Temperature +25°C ±5°C
Mode of Operation Flexural
Crystal Cut Tuning Fork
Drive Level 0.1 μW Typical, 0.5 μWatt Maximum
Aging ±3ppmn Maximum / First Year
0.032768MHz Crystal Unit ?20ppm SMD 2-Pin 1.6 x 1 x 0.5mm
Manufacturer:
ILSI
Manufacturer Part No:
IL3W-HX5F12.5-32.768KHz
Enrgtech Part No:
ET21619875
Warranty:
Manufacturer
£ 0.58
Checking for live stock
Standard Frequency:
0.032768MHz
Mounting Type:
Surface Mount
Load Capacitance:
12.5pF
Package Type:
SMD
Pin Count:
2
Dimensions:
1.6 x 1 x 0.5mm
Frequency Tolerance:
?20ppm
