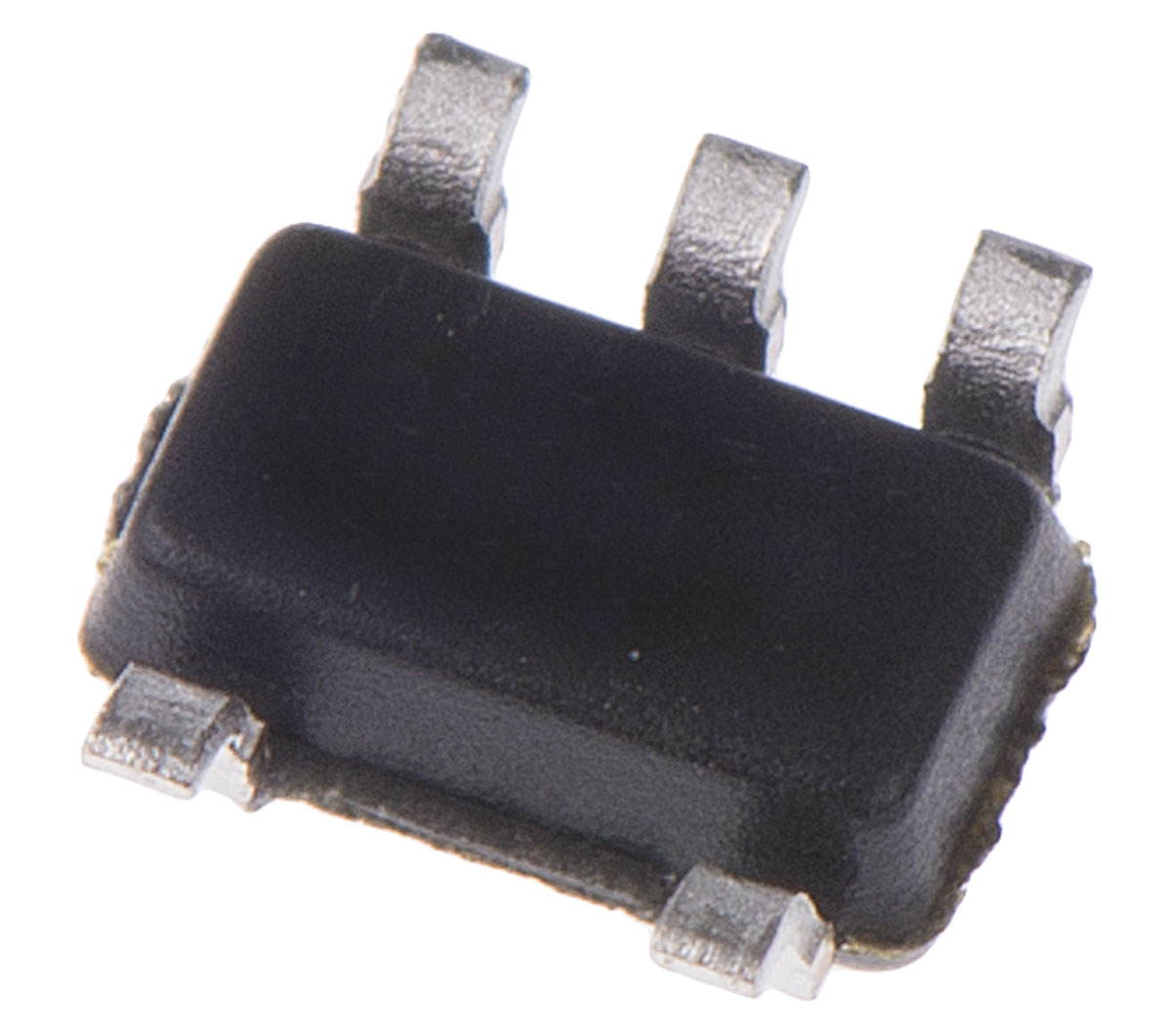

INA196AIDBVT , Current Shunt Monitor Single 5-Pin SOT-23

Power Supply Type:

Single

Typical Single Supply Voltage:

3 V, 5 V, 9 V, 12 V, 15 V

Minimum CMRR:

80dB

Number of Channels per Chip:

1

Mounting Type:

Surface Mount

Package Type:

SOT-23

Pin Count:

5

Dimensions:

2.9 x 1.6 x 1.15mm

Height:

1.15mm

Length:

2.9mm

Maximum Operating Supply Voltage:

18 V

Minimum Operating Supply Voltage:

2.7 V

Maximum Operating Temperature:

+125 °C

Width:

1.6mm

Minimum Operating Temperature:

-40 °C
