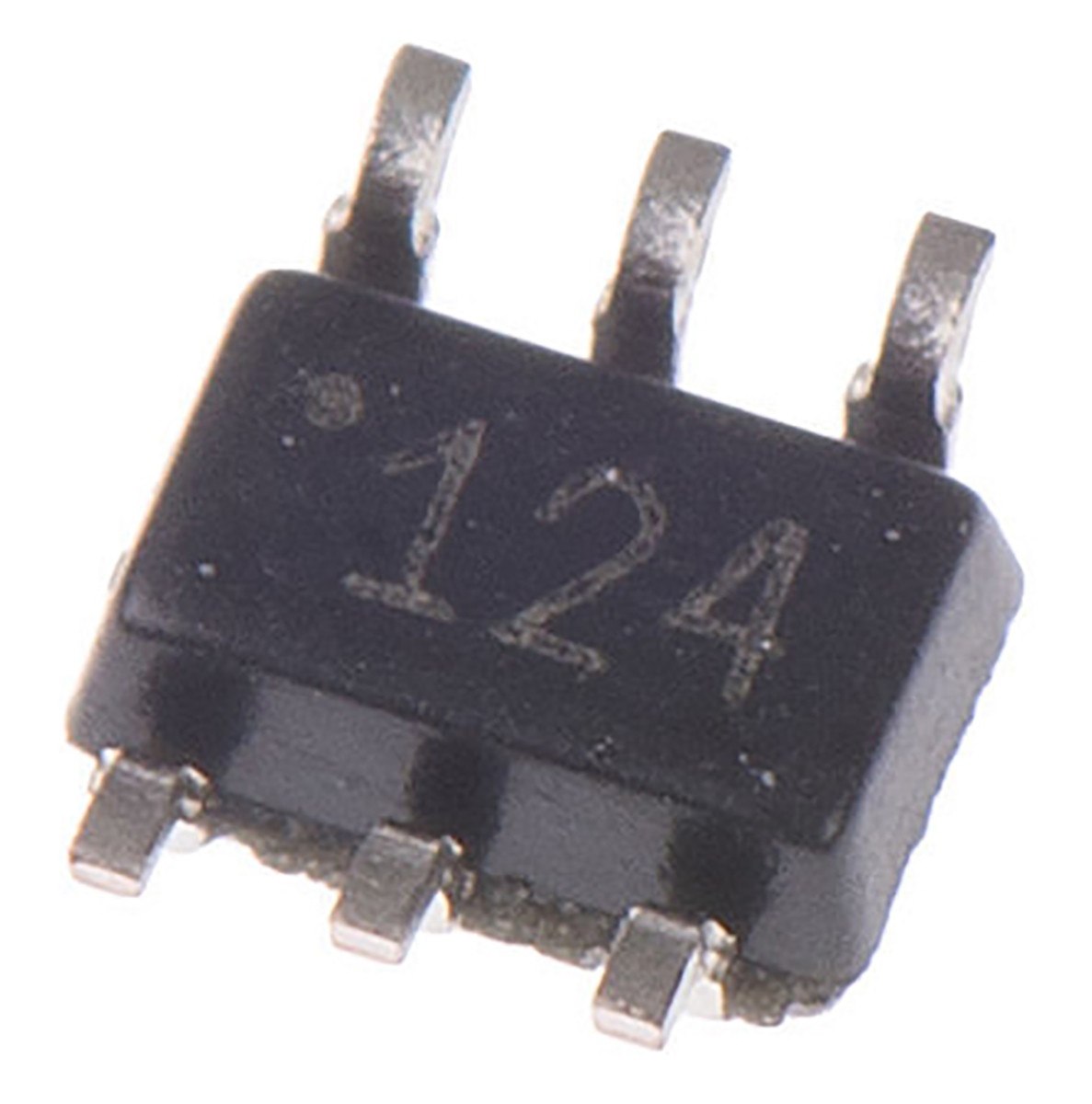

INA214AIDCKT , Current Sense Amplifier Single 6-Pin SC-70

Power Supply Type:

Single

Typical Single Supply Voltage:

3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V

Minimum CMRR:

105dB

Number of Channels per Chip:

1

Mounting Type:

Surface Mount

Package Type:

SC-70

Pin Count:

6

Dimensions:

2 x 1.25 x 0.9mm

Height:

0.9mm

Length:

2mm

Maximum Operating Supply Voltage:

26 V

Minimum Operating Supply Voltage:

2.7 V

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-40 °C

Width:

1.25mm
