HLSR Series
A wide range of open loop current transducers for the electronic measurement of current dc, ac, pulsed... with galvanic separation between the primary and the secondary circuit.
Low power consumption
Voltage output
Compact design for through-hole PCB mounting
Factory calibrated
Single supply + 5 V
Low foot-print
Low offset drift
Suitable for industrial applications
Voltage output
Compact design for through-hole PCB mounting
Factory calibrated
Single supply + 5 V
Low foot-print
Low offset drift
Suitable for industrial applications

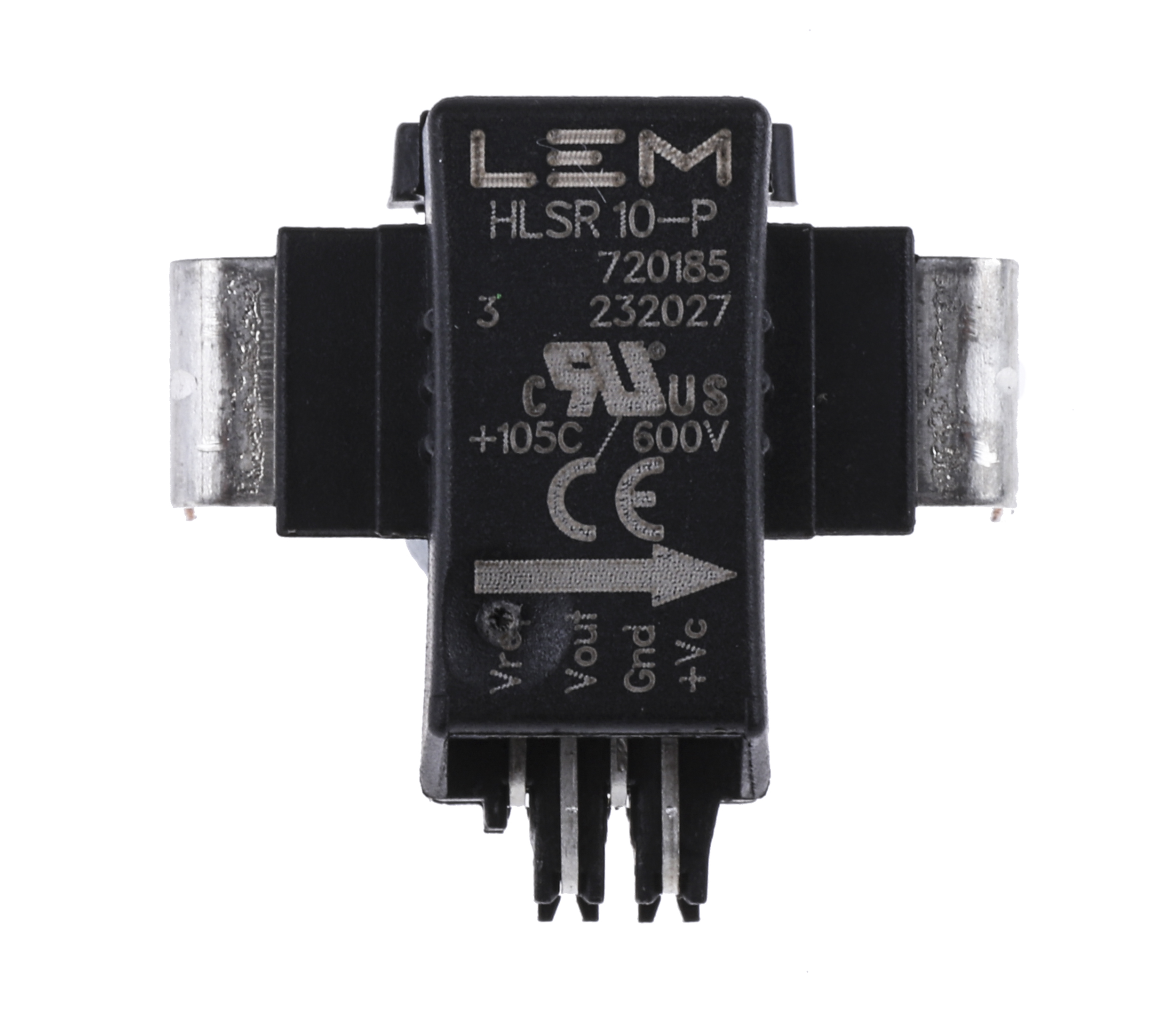

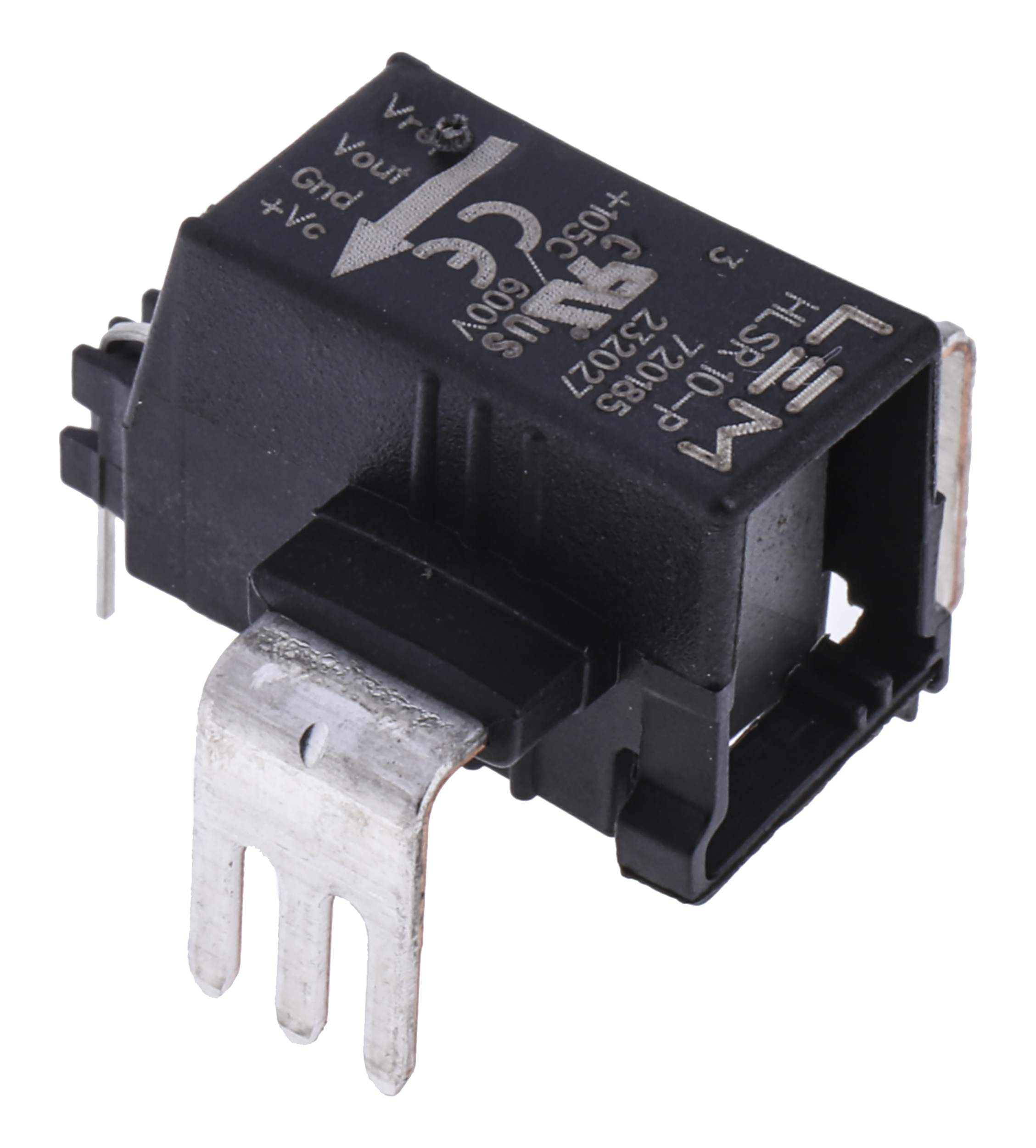

HLSR Series Current Transformer, 25A Input, 25:1, 10 A Output, 4.5 → 5.5 V
Manufacturer:
LEM
Manufacturer Part No:
HLSR 10-P
Enrgtech Part No:
ET14049010
Warranty:
Manufacturer
£ 7.30
Checking for live stock
Current Ratio:
25:1
Series:
HLSR
Sensor Technology:
Open Loop
Supply Voltage:
4.5 → 5.5 V
Input Current:
25A
Output Current:
10 A
Overall Height:
12mm
Overall Width:
17.2mm
Overall Depth:
70mm
Minimum Temperature:
-40°C
Maximum Temperature:
+105°C
Mounting Type:
PCB Mount
