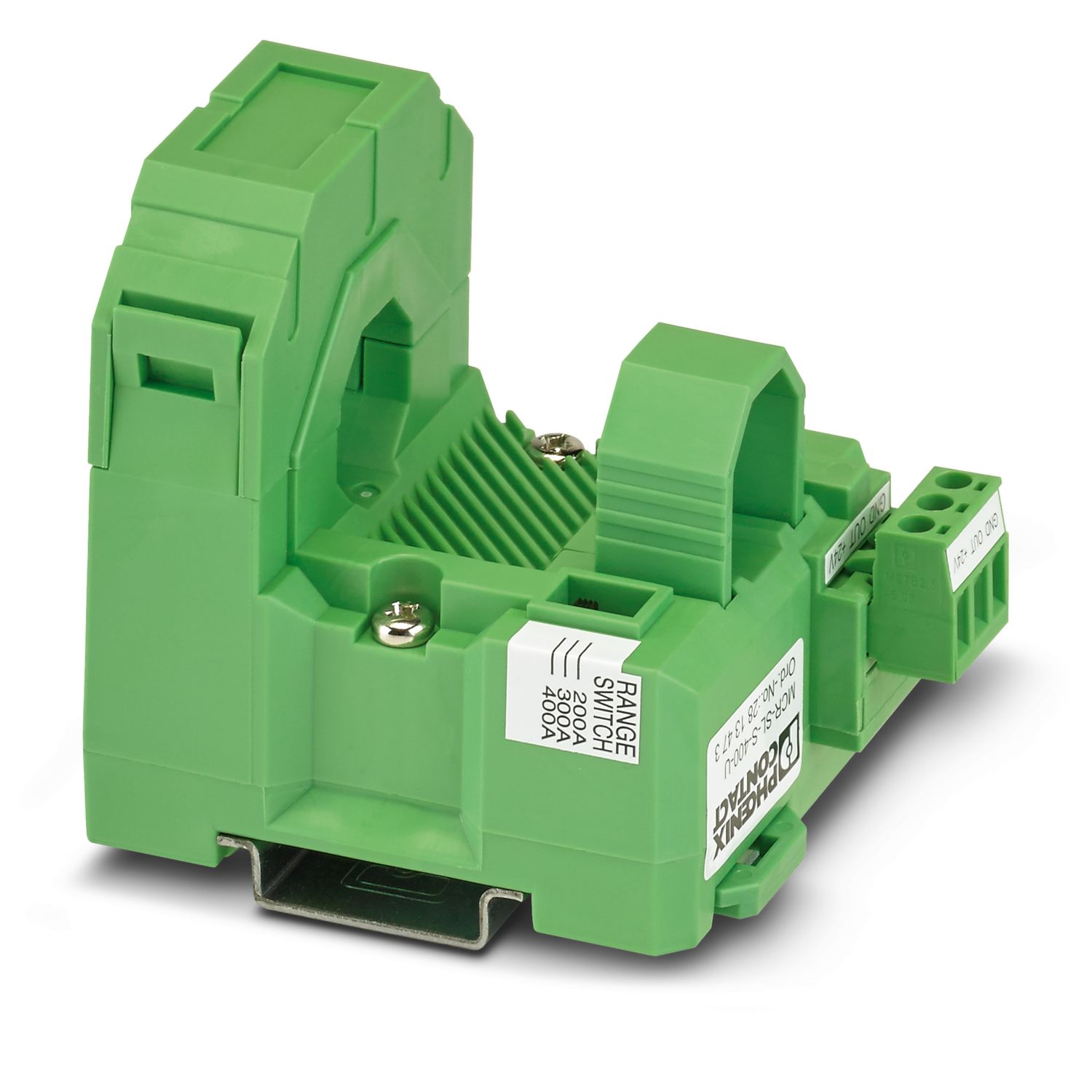

2813473 Phoenix Contact MCR-SL-S-400-U Series Current Transducer 400 A 1 W 20V dc, 30 V dc 18.5 mm Bore

The Phoenix Contact Current Transducer is designed for measuring sinusoidal and non-sinusoidal alternating currents. It has an input current range of 0 to 400 A and an output voltage range of 0. to (5) 10 V. The measuring range can be easily selected using the slide switch, allowing for flexibility in various applications. Can be retrofitted with an open up Rogowski coil
True r.m.s. value measurement from 30 to 6000 Hz
Measuring range selection via slide switch

For more information please check the datasheets.

Phoenix Contact MCR-SL-S-400-U Series Current Transducer 400 A 1 W 20V dc, 30 V dc 18.5 mm Bore

Manufacturer:

Phoenix Contact

Manufacturer Part No:

2813473

Enrgtech Part No:

ET14060772

Warranty:

Manufacturer

Pre-order

Estimated Delivery Time: 7-13 weeks

Each

Quantity

Unit Price (ex VAT)

£ 190.97

Order Today!

From: United Kingdom

Estimated Delivery Time: 7-13 weeks

Quantity Qty

Depth:

70.5mm

Width:

55mm

Length:

85mm

Series:

MCR-SL-S-400-U

Weight:

144.266g

Bore Size:

18.5mm

Power Rating:

Product Type:

Current Transducer

Supply Voltage:

20, 30V dc

Primary Current:

400A

Secondary Current:

400A

Standards/Approvals:

EAC, UL, UKCA, EU RoHS, EN61869, cULus, CHINA RoHS, CE

Discover current transformers for accurate current measurement. Enrgtech offers CT sensors and monitoring solutions for efficient electrical power systems.

Phoenix Contact MCR-SL-S-400-U Series Current Transducer 400 A 1 W 20V dc, 30 V dc 18.5 mm Bore
