Split-core Current Transformer
Two multi-ratio split-core current transformers with four or five built-in current ratios in one product
Can be installed into existing systems without disconnecting cables or busbar connections
Suitable for use with analogue, digital and energy meters
Accuracy class 1 (±1%)
Ambient temperature range: -30°C to 80°C
Frequency range: 50-60Hz
Insulation rating: 3kV for 1 minute
Continuous current: 1.2 x rated current
Suitable for use with analogue, digital and energy meters
Accuracy class 1 (±1%)
Ambient temperature range: -30°C to 80°C
Frequency range: 50-60Hz
Insulation rating: 3kV for 1 minute
Continuous current: 1.2 x rated current

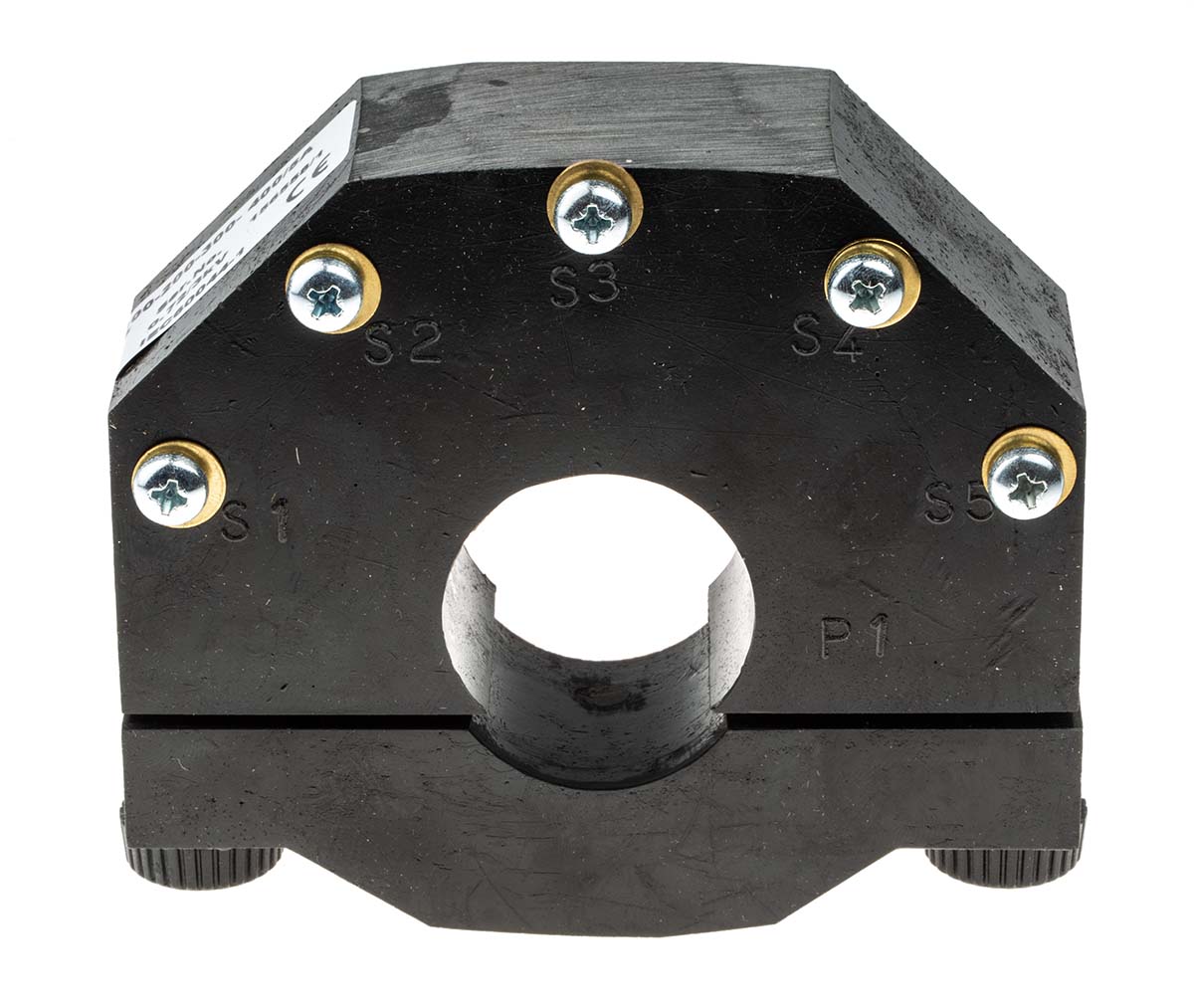

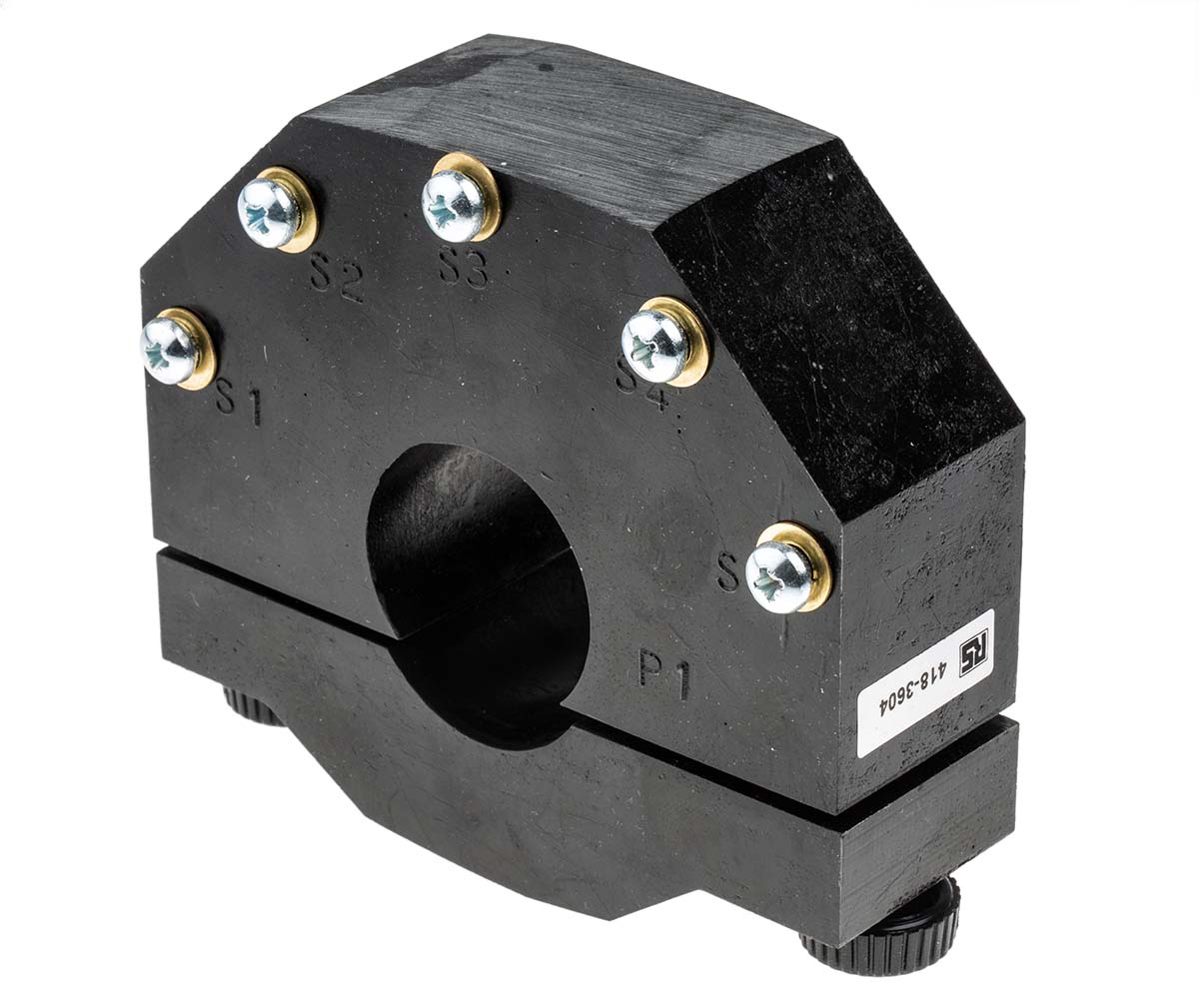

CTSCEN Series Clip Fit Current Transformer, 100:5, 200:5, 300:5, 400:5
Manufacturer:
HOBUT
Manufacturer Part No:
CTSCEN100<400/5
Enrgtech Part No:
ET14073735
Warranty:
Manufacturer
£ 67.29
Checking for live stock
Current Ratio:
100:5, 200:5, 300:5, 400:5
Series:
CTSCEN
Transformer Type:
Clip Fit
Overall Height:
113mm
Overall Width:
127mm
Overall Depth:
40mm
Minimum Temperature:
-30°C
Maximum Temperature:
+80°C
Mounting Type:
Clip Fit
