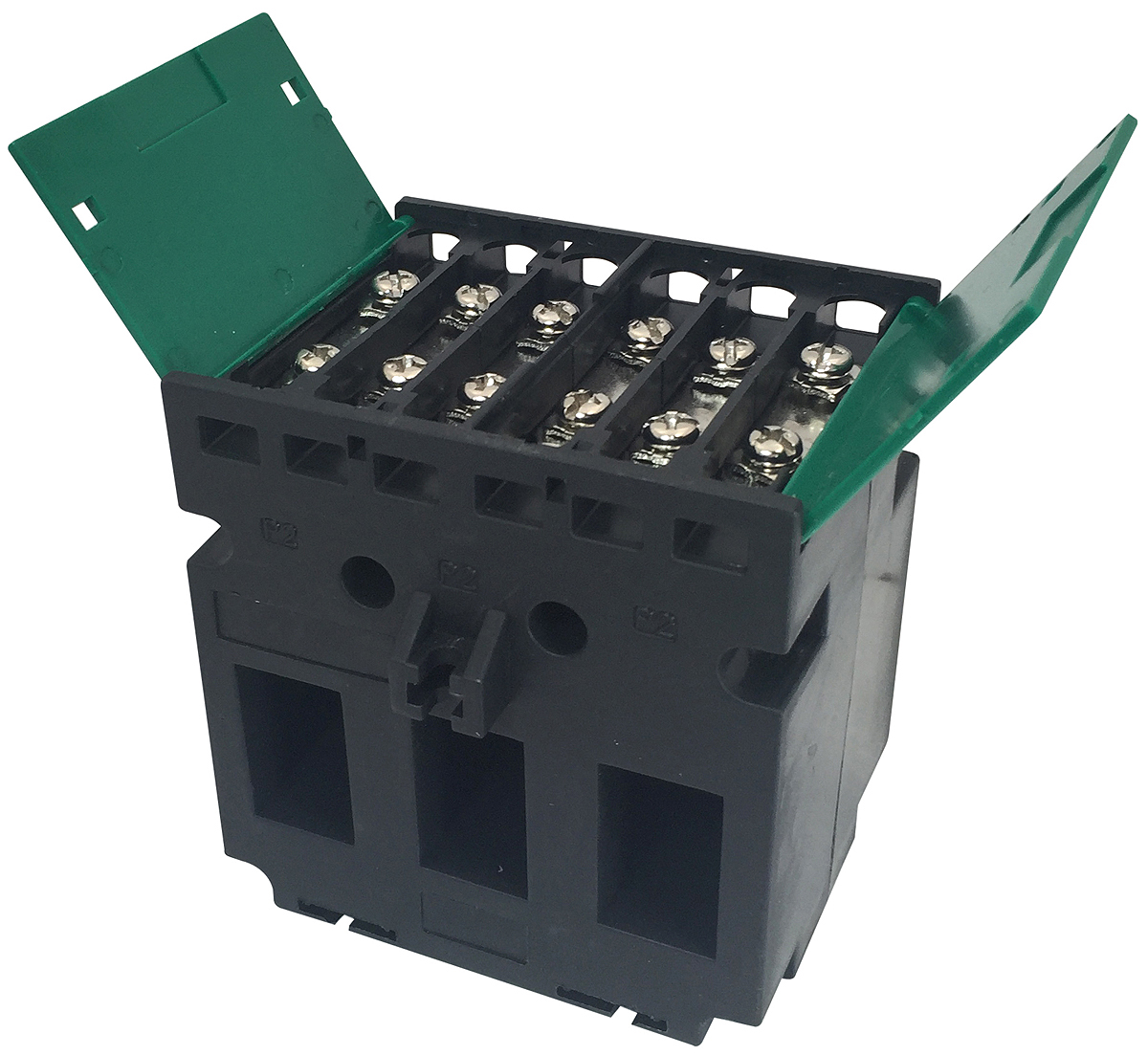

Sifam Tinsley Omega Series Base Mounted Current Transformer, 150A Input, 150:5, 5 A Output, 31mm Bore | XN25-225031S000000 | ET16807740

Sifam OMEGA 3 Phase Current Transformers OMEGA 3 Phase current transformers are suitable for primary ranges from 60 A to 630 A with 5 A secondary. The current transformers allow faster installation directly next to the moulded case circuit breakers for optimised use of space. Features and Benefits • Wire sealable terminal covers
• Cost effective 3 phase case design
• System voltage 720 V, 50-60 Hz
• Primary currents 60 Amps to 630 Amps AC
• 3 sizes available: 15 x 25 mm, 21 x 25 mm & 31 x 31 mm

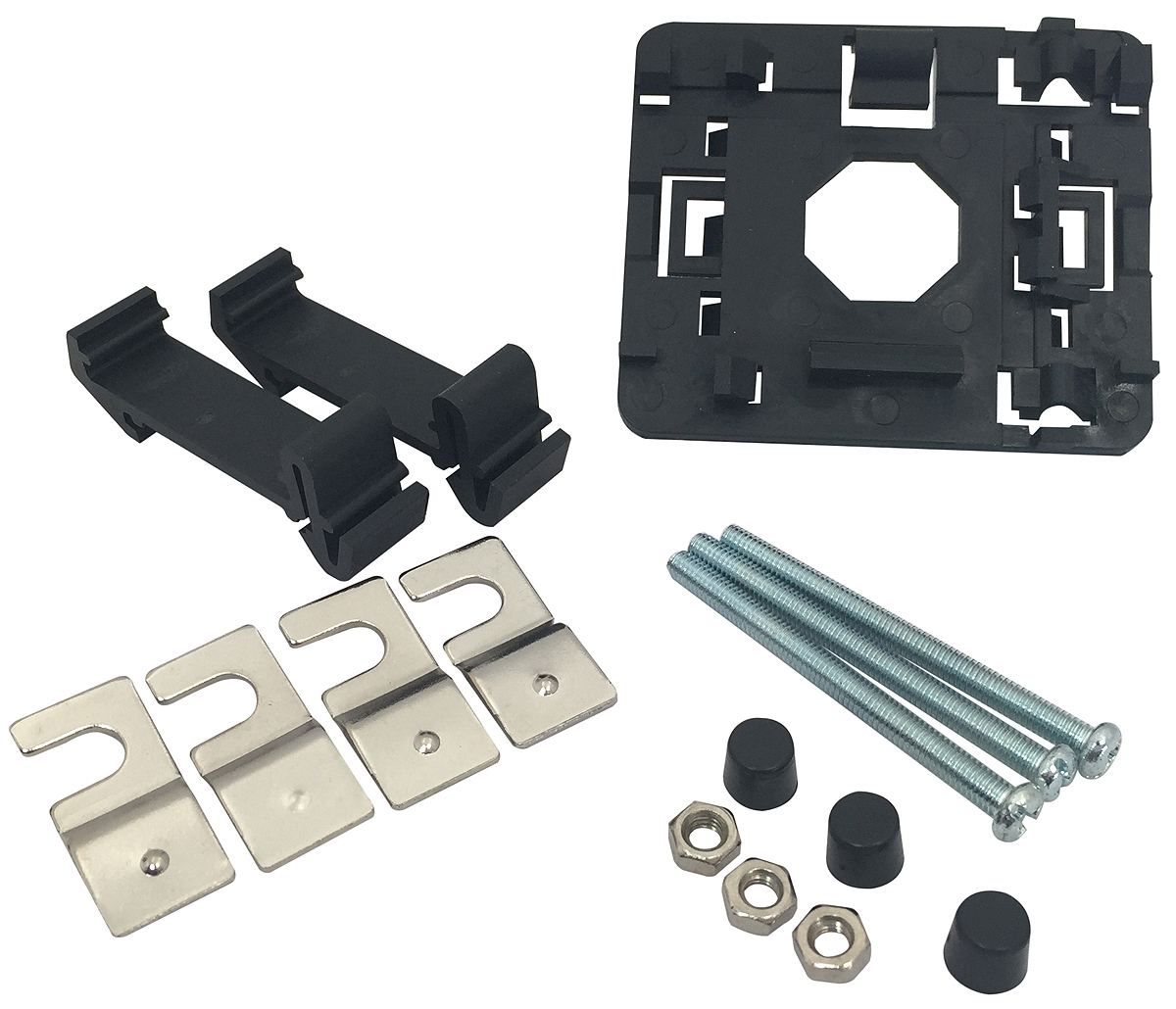

• Various mounting options- DIN Rail, Busbar or Base mounting
• Self-extinguishing casing classification VO according to UL-94
• Accuracy class 1

Cart Items

Menu

Home

Categories

Manufacturers

Contact Us

Marketplace

Track Order

Login/Register

Omega Series Base Mounted Current Transformer, 150A Input, 150:5, 5 A Output, 31mm Bore
