HTFS Series
PCB mounting Hall Effect current transducers designed around a proprietary ASIC.
AC,DC, and mixed current measurement
Unipolar 5V supply
Low power consumption
Extremely low profile
Reference in/out
Ratiometric output (Vcc/2)
The P version has a fixing via 4 holes
The P/SP2 version has a fixing via 4 solder pins
Unipolar 5V supply
Low power consumption
Extremely low profile
Reference in/out
Ratiometric output (Vcc/2)
The P version has a fixing via 4 holes
The P/SP2 version has a fixing via 4 solder pins

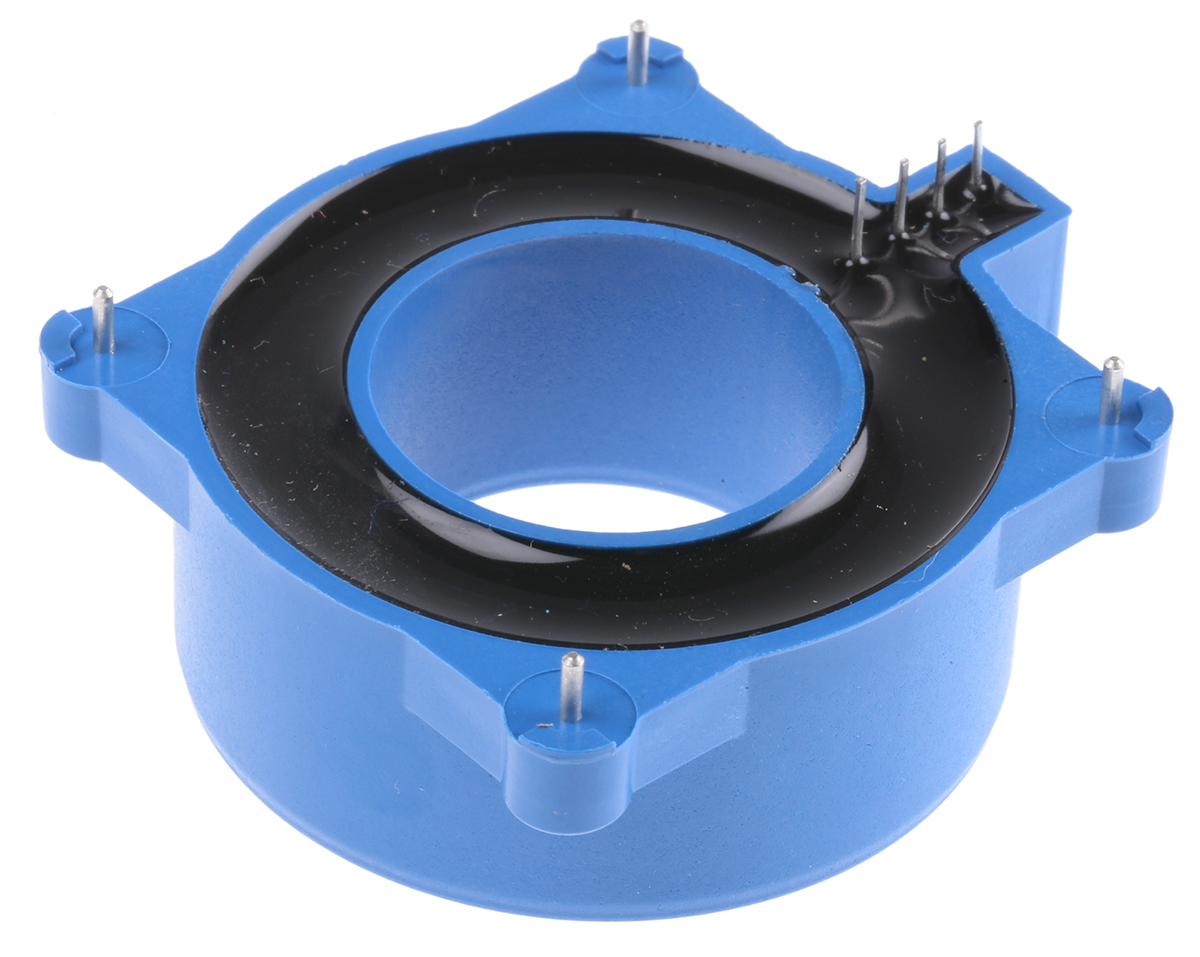

HTFS Series Current Transformer, 300A Input, 300:1, 22mm Bore, 5 V
Manufacturer:
LEM
Manufacturer Part No:
HTFS 200-P/SP2
Enrgtech Part No:
ET16899807
Warranty:
Manufacturer
£ 19.84
Checking for live stock
Current Ratio:
300:1
Bore Size:
22mm
Series:
HTFS
Sensor Technology:
Open Loop
Supply Voltage:
5 V
Input Current:
300A
Overall Height:
46.3mm
Overall Width:
40mm
Overall Depth:
17mm
Minimum Temperature:
-40°C
Maximum Temperature:
+105°C
Mounting Type:
PCB Mount
