Sifam OMEGA 3 Phase Current Transformers
OMEGA 3 Phase current transformers are suitable for primary ranges from 60 A to 630 A with 5 A secondary. The current transformers allow faster installation directly next to the moulded case circuit breakers for optimised use of space.
Features and Benefits
• Wire sealable terminal covers
• Cost effective 3 phase case design
• System voltage 720 V, 50-60 Hz
• Primary currents 60 Amps to 630 Amps AC
• 3 sizes available: 15 x 25 mm, 21 x 25 mm & 31 x 31 mm

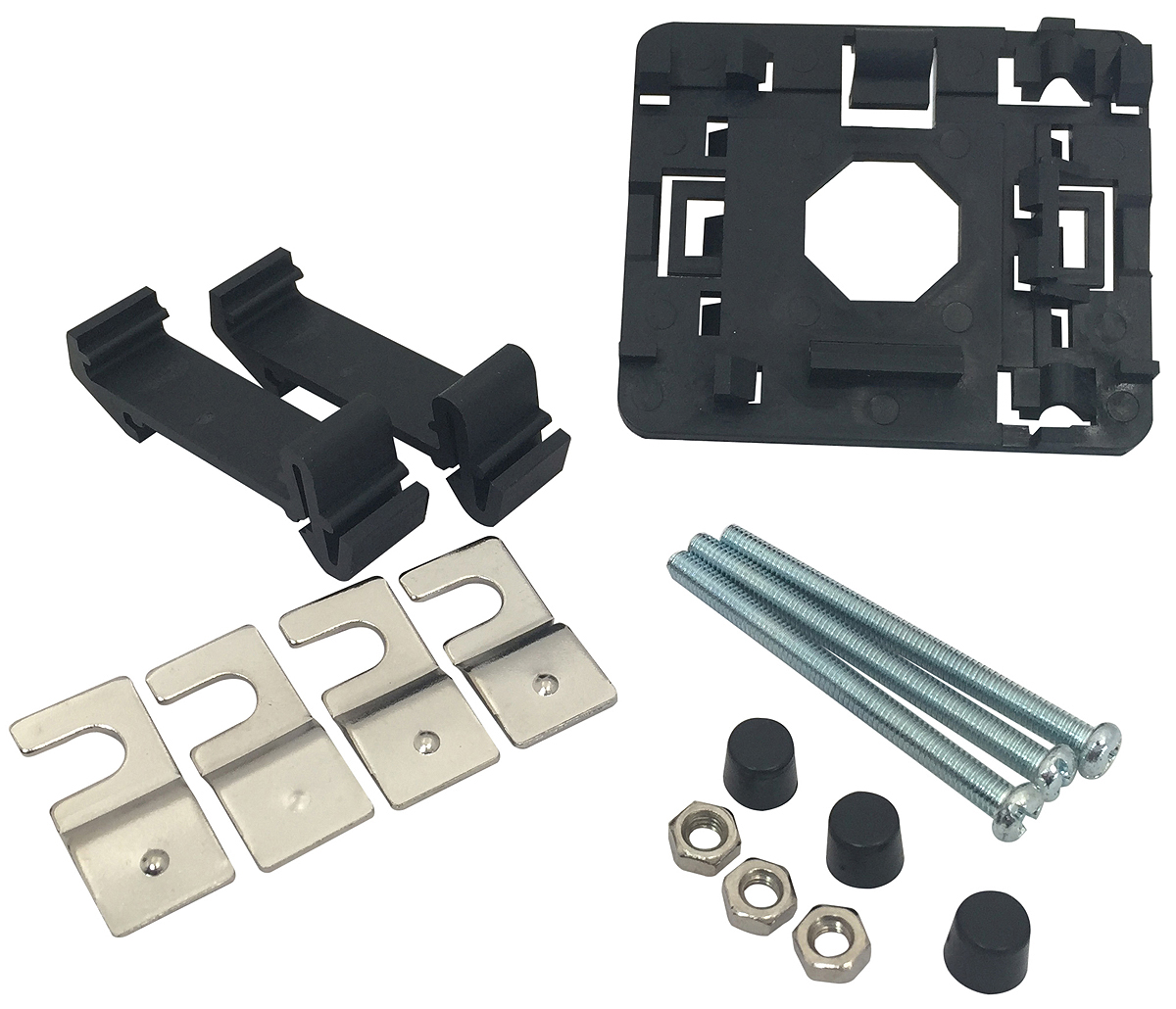

• Various mounting options- DIN Rail, Busbar or Base mounting
• Self-extinguishing casing classification VO according to UL-94
• Accuracy class 1
• Cost effective 3 phase case design
• System voltage 720 V, 50-60 Hz
• Primary currents 60 Amps to 630 Amps AC
• 3 sizes available: 15 x 25 mm, 21 x 25 mm & 31 x 31 mm
• Various mounting options- DIN Rail, Busbar or Base mounting
• Self-extinguishing casing classification VO according to UL-94
• Accuracy class 1

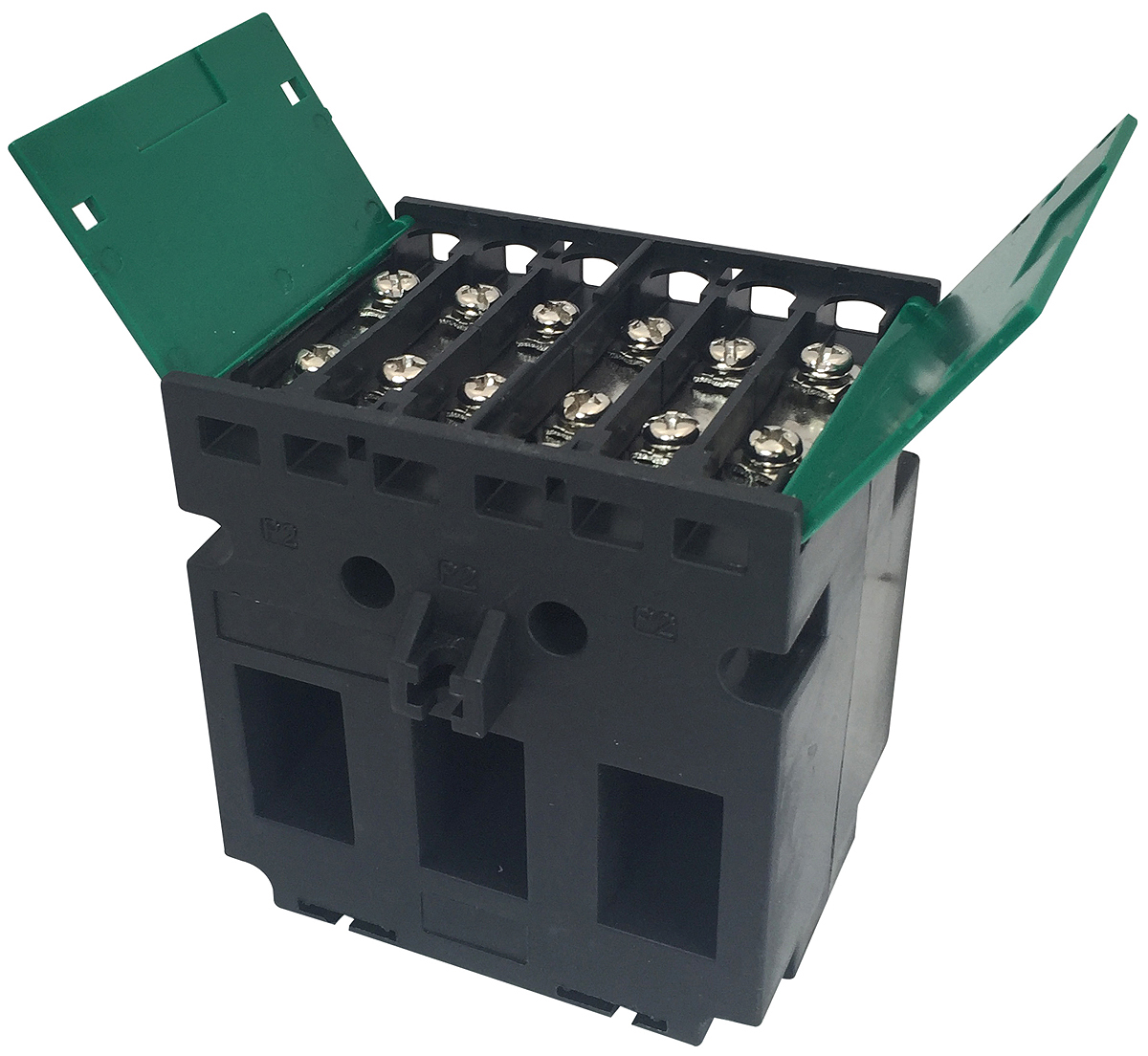

Omega Series Base Mounted Current Transformer, 125A Input, 125:5, 5 A Output, 31mm Bore
Manufacturer:
Sifam Tinsley
Manufacturer Part No:
XN25-205031S000000
Enrgtech Part No:
ET16927129
Warranty:
Manufacturer
£ 30.34
Checking for live stock
Current Ratio:
125:5
Bore Size:
31mm
Series:
Omega
Transformer Type:
Base Mounted
Input Current:
125A
Output Current:
5 A
Mounting Type:
Busbar, DIN Rail, Plug In
For Use With:
MCCB
Dimensions:
75 x 60 x 87.5 mm
