For AC and DC systems Type B
To detect earth faults in grounded voltage systems
4 setting ranges from 10 mA to 3 A
Manual reset, with alarm and pre-warning
With adjustable switching delay
Energized or de-energized on trip
LED indicator for operation, pre-alarm and alarm
With test function
LED-chain indicates fault current
As option with analogue output
Broken wire detection
Width: 52.5 mm
Application
The residual current monitor type B is designed to monitor DC systems and AC systems up to 250 Hz.
To detect earth faults in grounded voltage systems
4 setting ranges from 10 mA to 3 A
Manual reset, with alarm and pre-warning
With adjustable switching delay
Energized or de-energized on trip
LED indicator for operation, pre-alarm and alarm
With test function
LED-chain indicates fault current
As option with analogue output
Broken wire detection
Width: 52.5 mm
Application
The residual current monitor type B is designed to monitor DC systems and AC systems up to 250 Hz.

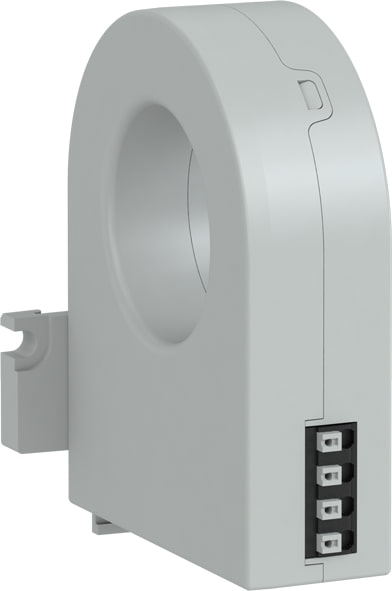

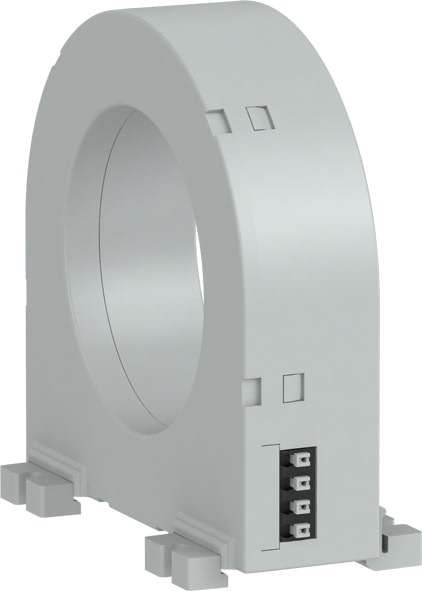

RN 5883 Series Current Transformer, 3A Input, 3:1
£ 151.41
Checking for live stock
Current Ratio:
3:1
Series:
RN 5883
Input Current:
3A
Overall Height:
54mm
Overall Width:
82mm
Overall Depth:
8.3mm
Minimum Temperature:
-40°C
Maximum Temperature:
+60°C
Mounting Type:
DIN Rail
Dimensions:
82 x 46 x 54 mm
