Phoenix Contact Variosub rewireable D-Sub Connectors A Phoenix Contact range of rewireable plug connectors specially designed for data technology in an industrial environment. Features and Benefits • Push-pull locking mechanism
• Contact inserts comprise of a conventional D-Sub connector mated to a PCB containing screw terminals for ease of use and re-use
• Up to IP67 protection rating and optional EMC protection
• Male and Female available
• Gold over nickel contacts
• 12.6mm wide
• IP20 protection Typical Applications The connectors are suitable for applications requiring a high degree of protection to high temperature or mechanical stress.

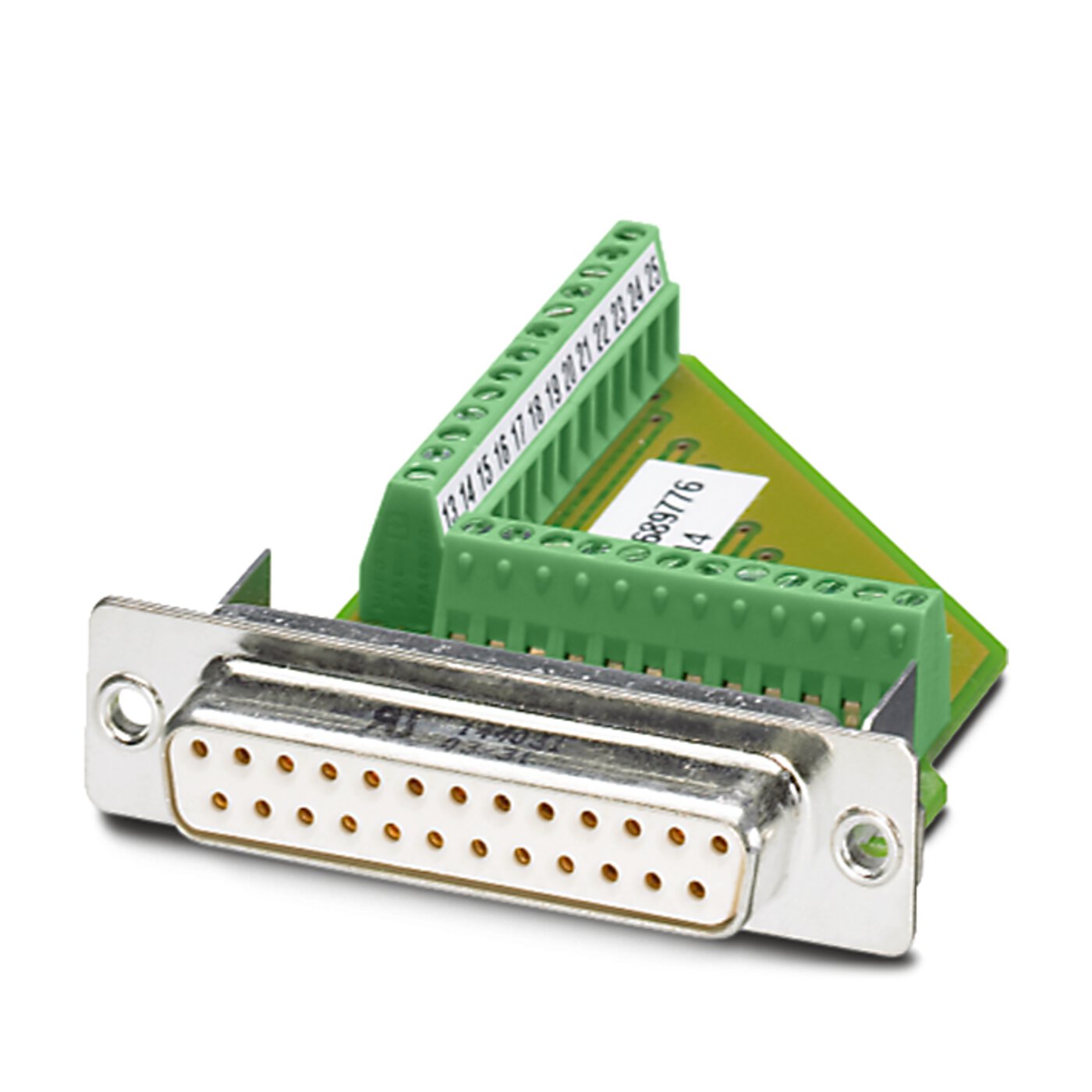

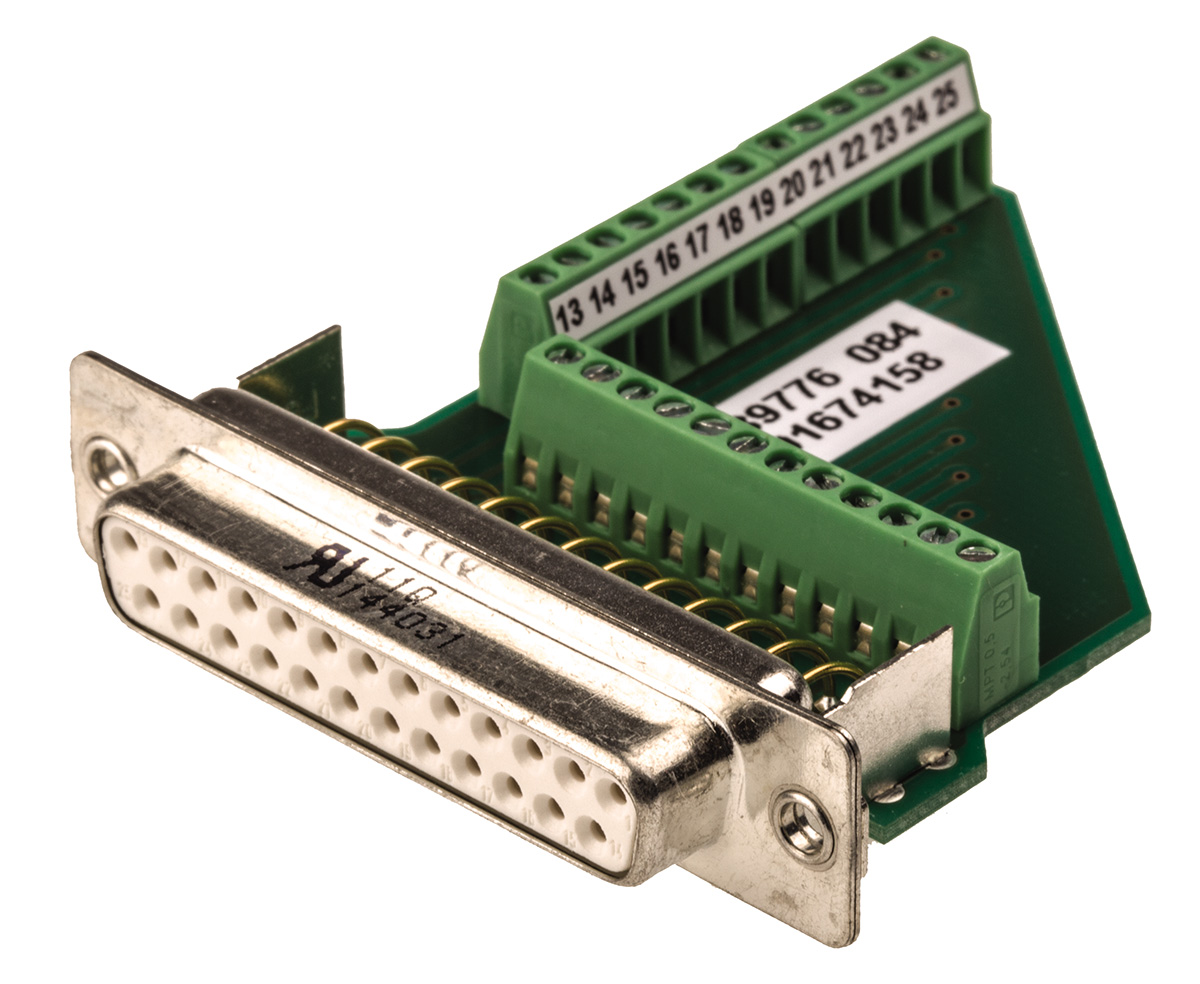

Phoenix Contact VS-25-BU-DSUB/25-MPT-0.5 25 Way Panel Mount D-sub Connector Socket

Manufacturer:
Manufacturer Part No:
1689776
Enrgtech Part No:
ET11239730
Warranty:
Manufacturer
£ 45.20
Checking for live stock
Number of Contacts:
25
Gender:
Female
Body Orientation:
Straight
Mounting Type:
Panel Mount
Termination Method:
Screw Terminal
Current Rating:
5.0A
Housing Material:
PBT
Voltage Rating:
60.0 V
Length:
53.0mm
Width:
12.6mm
Depth:
55.8mm
Series:
VS-25-BU-DSUB/25-MPT-0.5
Contact Plating:
Gold over Nickel
Contact Material:
Copper Alloy
Dimensions:
53 x 12.6 x 55.8mm
Maximum Operating Temperature:
+80°C
Contact Size:
3
Minimum Operating Temperature:
-20.0°C
pdf icon
Datasheet 1689776-a7f93025(datasheets)
pdf icon
Line Drawing - 1689776-173de9eb(datasheets)
