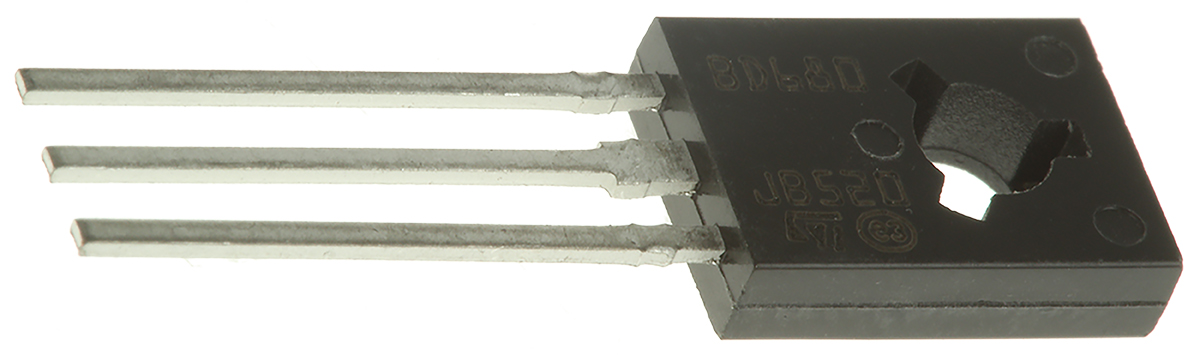

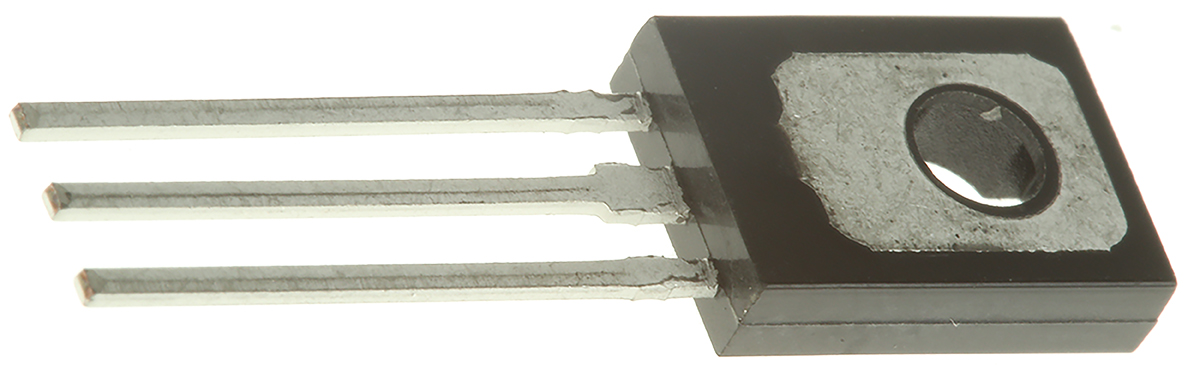

bd680 STMicroelectronics BD680 PNP Darlington Pair, 4 A 80 V HFE:750, 3-Pin SOT-32
bd680 STMicroelectronics BD680 PNP Darlington Pair, 4 A 80 V HFE:750, 3-Pin SOT-32
bd680 STMicroelectronics BD680 PNP Darlington Pair, 4 A 80 V HFE:750, 3-Pin SOT-32

PNP Darlington Transistors, STMicroelectronics

STMicroelectronics BD680 PNP Darlington Pair, 4 A 80 V HFE:750, 3-Pin SOT-32

Manufacturer:
STMicroelectronics
Manufacturer Part No:
BD680
Enrgtech Part No:
ET14514031
Warranty:
Manufacturer
£ 0.72
Checking for live stock
Transistor Type:
PNP
Maximum Continuous Collector Current:
4 A
Maximum Collector Emitter Voltage:
80 V
Maximum Emitter Base Voltage:
5 V
Package Type:
SOT-32
Mounting Type:
Through Hole
Pin Count:
3
Transistor Configuration:
Single
Number of Elements per Chip:
1
Minimum DC Current Gain:
750
Maximum Collector Base Voltage:
80 V
Maximum Collector Emitter Saturation Voltage:
2.5 V
Maximum Collector Cut-off Current:
0.2mA
Maximum Operating Temperature:
+150 °C
Length:
7.8mm
Width:
2.7mm
Minimum Operating Temperature:
-65 °C
Height:
10.8mm
Dimensions:
7.8 x 2.7 x 10.8mm
pdf icon
Datasheet-62ef8a62(datasheets)
pdf icon
ESD Control Selection Guide V1-38e92ccd(datasheets)
Explore Darlington pairs for high-gain switching needs. Enrgtech offers power transistors ideal for amplifiers, controllers, and voltage regulation circuits.
