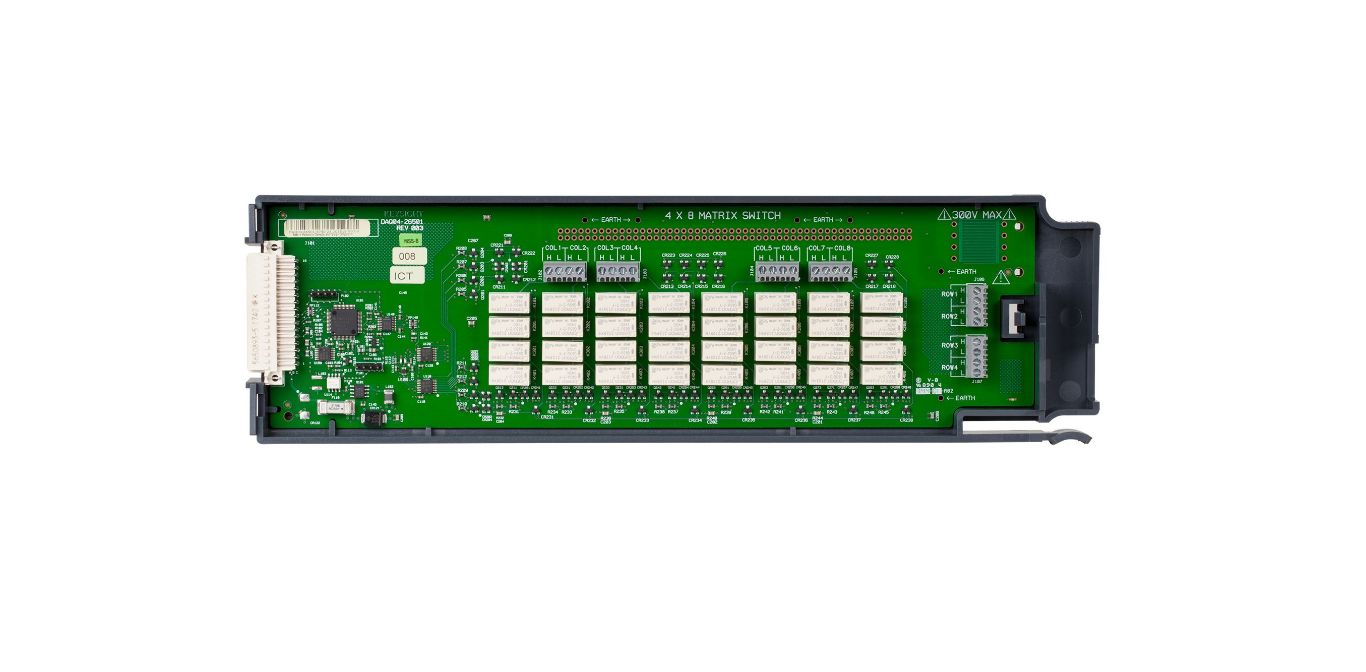

Keysight Technologies Data Acquisition Multiplexer, 10MHz Bandwidth, 120ch/s Scanning Speed - DAQM904A Looking for a trusty messenger to carry signals to your control unit? Choose this data acquisition multiplexer from Keysight Technologies. As it has 32 two-wire crosspoints and a single output, it lets you connect multiple measuring units to the device under test simultaneously. It has a lightning-fast scanning speed up to 120 channels per second, so you can assess large amounts of data in a short period of time. The unit needs an input power of just 50W, making it an energy-efficient measurement solution. Features and Benefits • Broad operating temperature range between 0°C and +55°C for use in demanding environments
• Input current of 1A for compatibility with low-power systems
• Designed for use with the DAQ970 data acquisition system (177-1105) for ease of assembly
• Compatible DAQ features USB and LAN connectivity for easy communication with computer systems Applications • Electronics manufacturing
• Robotics and automation
• Oil and gas plants Does the compatible DAQ come with any software? Yes, the DAQ is supplied with Keysight BenchVue DAQ software, which makes it a breeze to set up tests and monitor data in real time.
