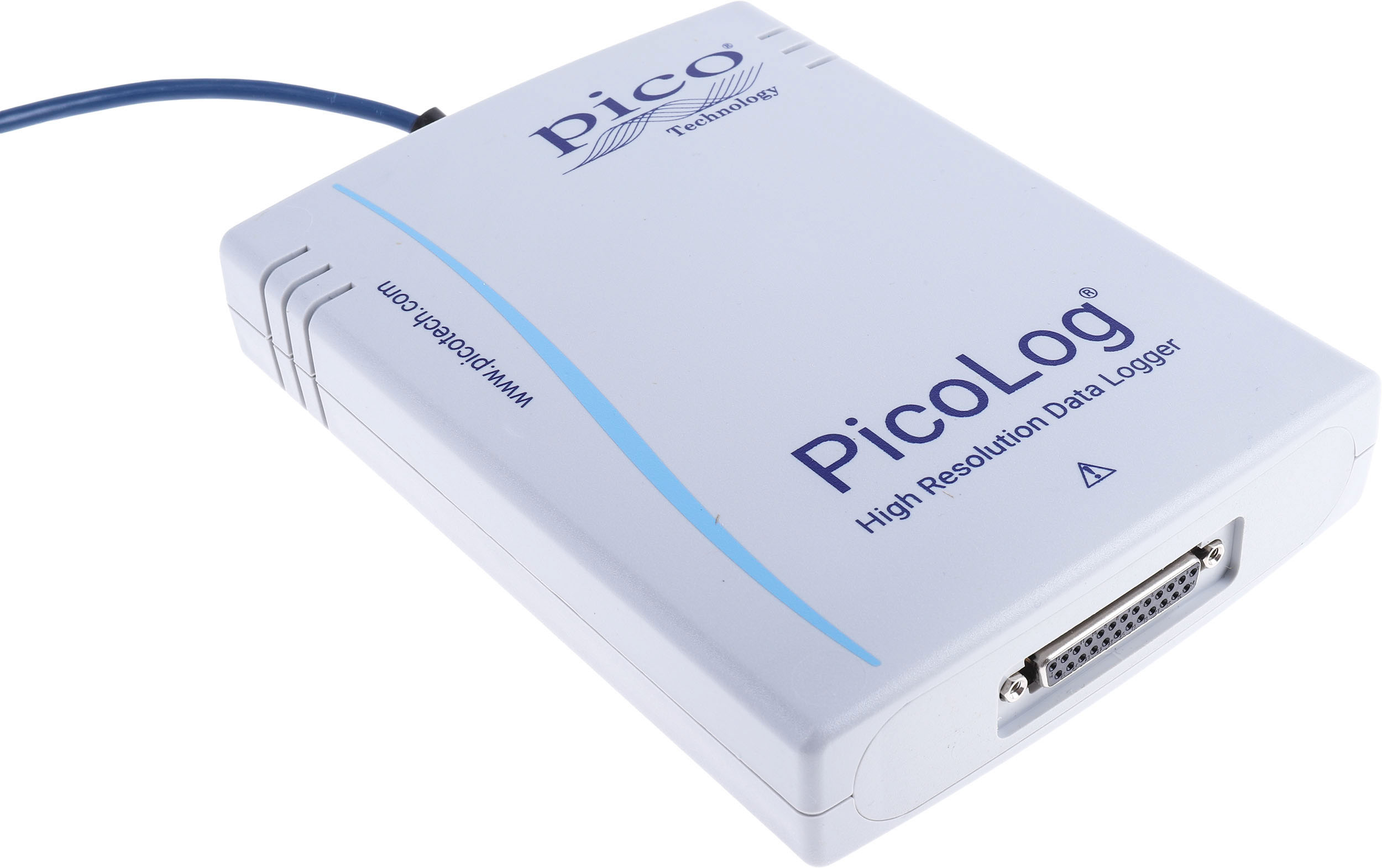

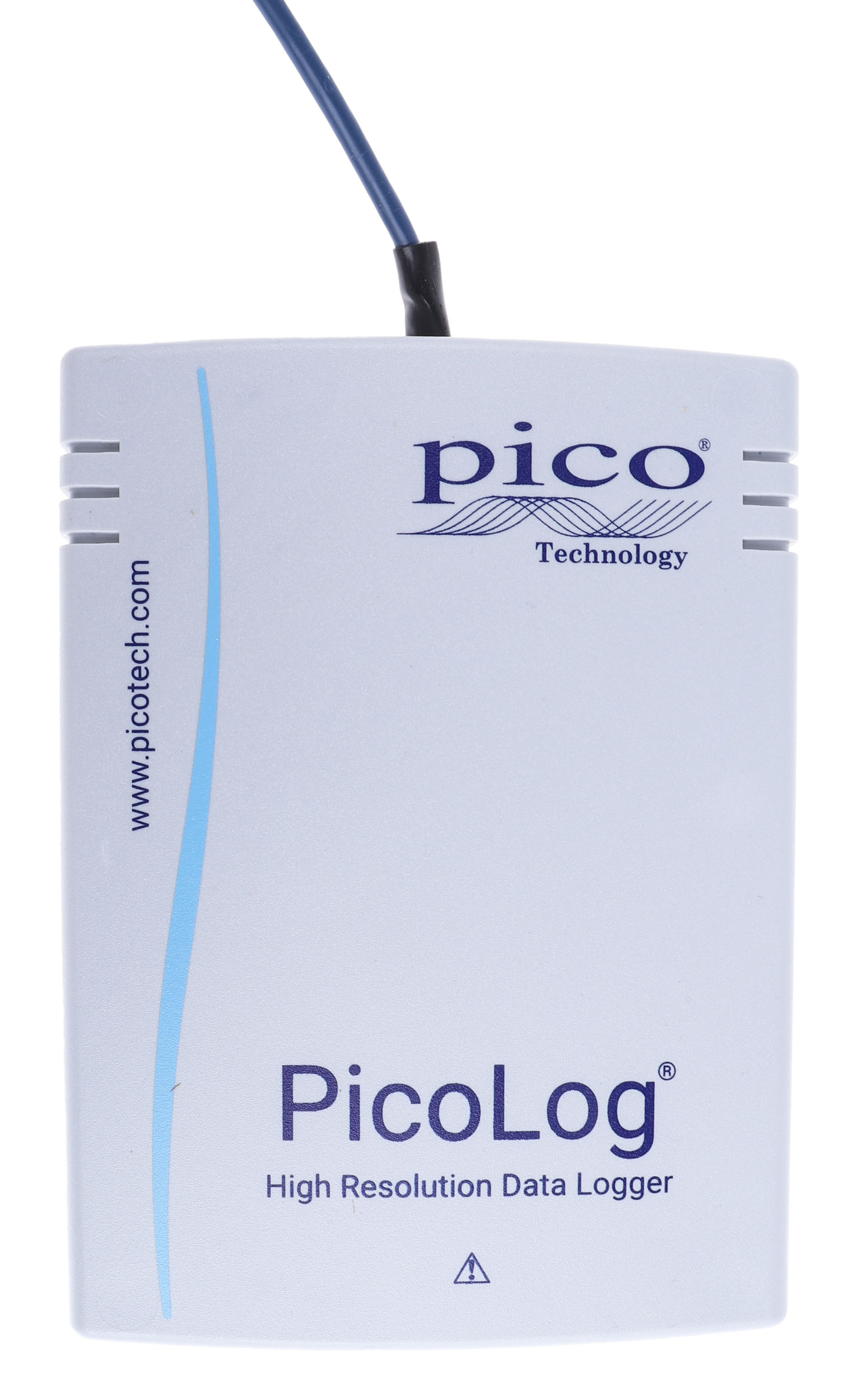

ADC-20 precision data logger The Pico Technology ADC-20 is a 8-channel, 20bit high-resolution USB data logger. This Pico data acquisition comes with PicoLog software that allows you to collect, manipulate, analyse, display and export data. It is ideal for detecting small signal changes with ultra-high accuracy, up to 0.1% of reading.

Supplied with
PicoLog data logging software, 32-bit programming libraries and screw terminal input adaptor board. Features and Benefits Low cost, high precision
8 channels at 20 bit resolution
Inputs configurable as single-ended or differential

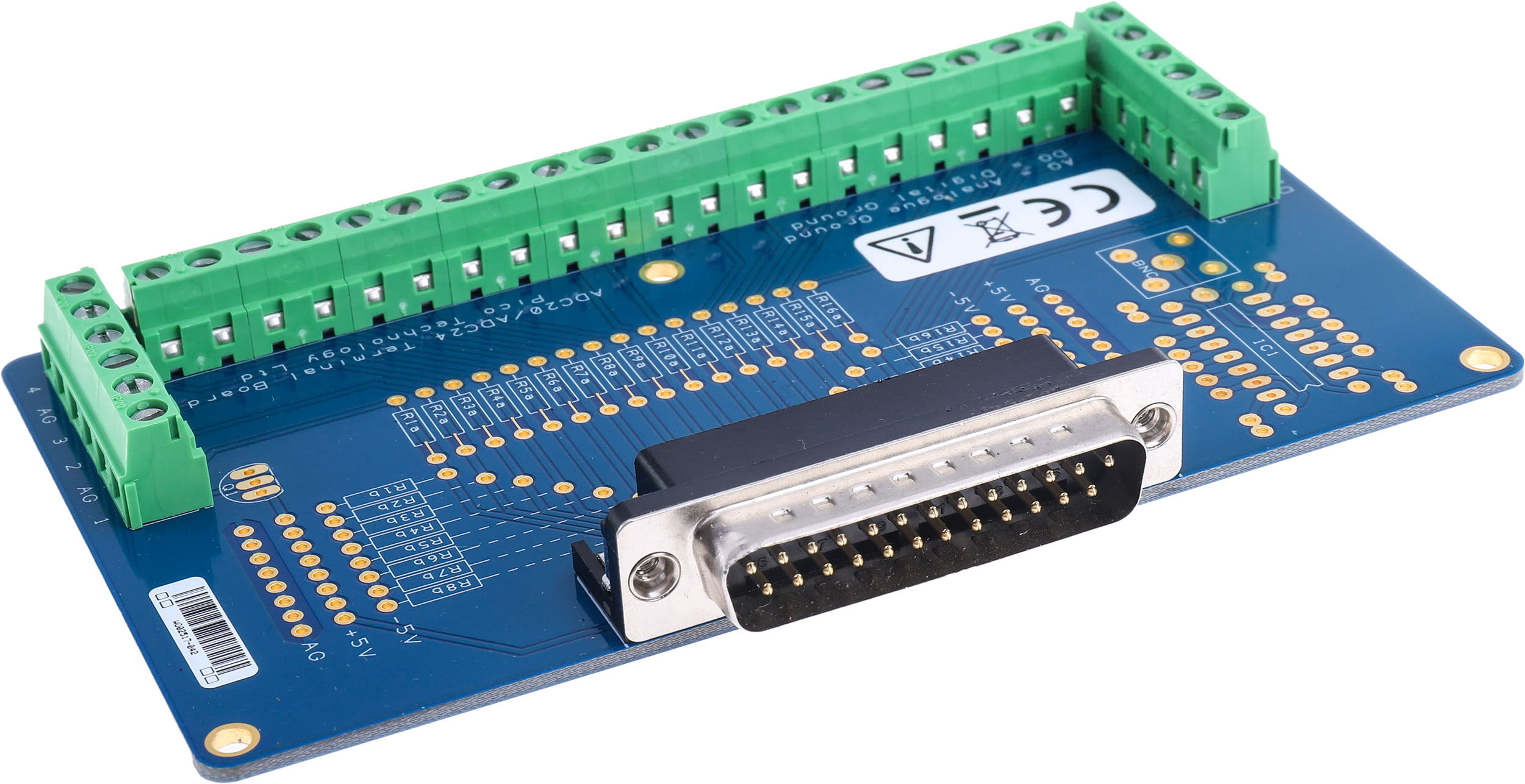

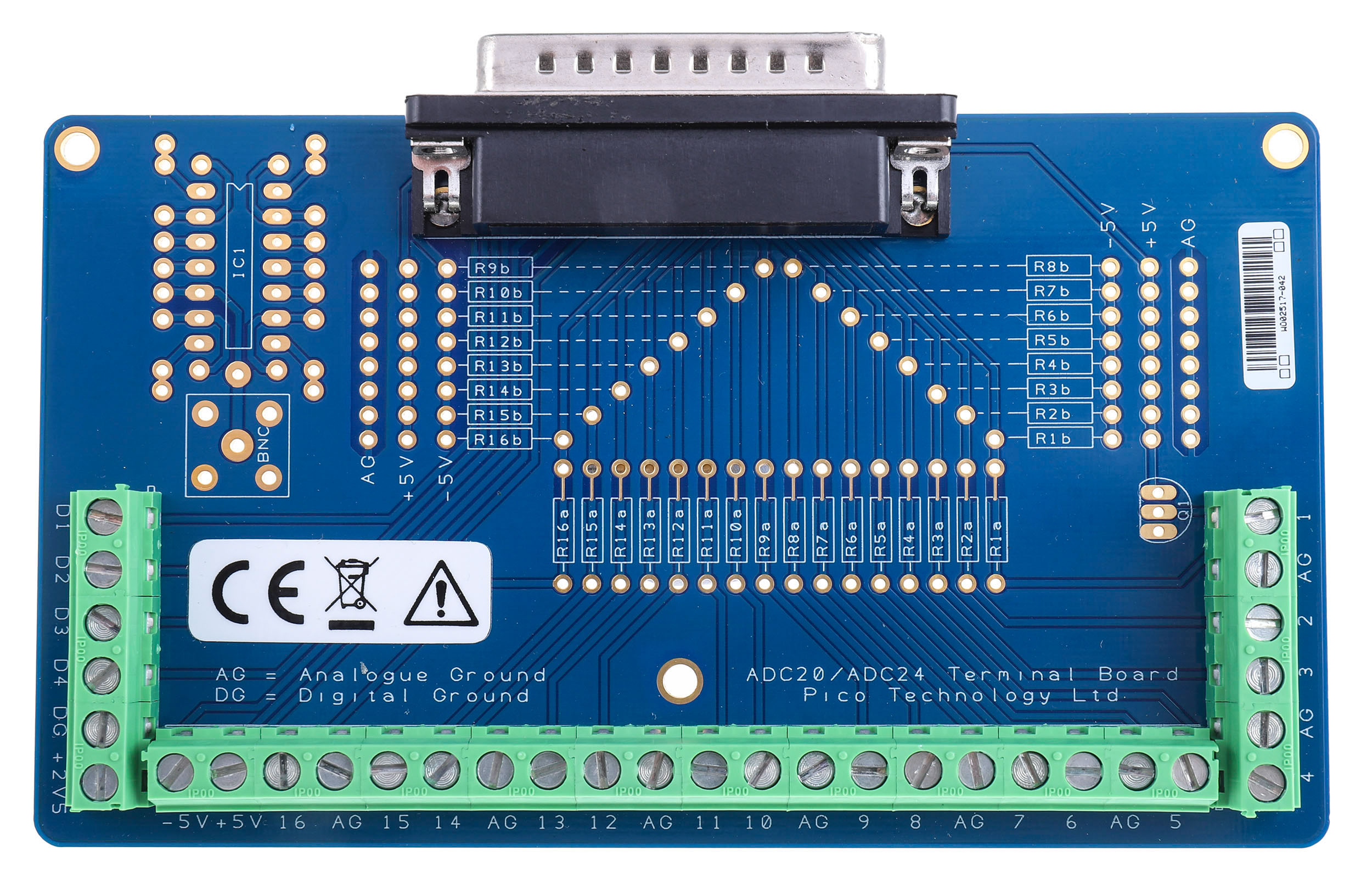

Terminal board included for easy connections
Up to 7 input ranges (±39 mV to ±2.5 V)
Digital control outputs
USB isolation
Up to 15 measurements per second
Powered from USB port
Free PicoLog 6 Cloud® software
Multiple units can be run on a single PC
Compatible with Windows, macOS, Linux and Raspberry Pi OS Now with PicoLog Cloud®

Building on the proven design of PicoLog 6, PicoLog Cloud is a free upgrade that introduces many great new features that expand how your Pico data logger can be used.

PicoLog Cloud allows all current Pico data loggers and real-time scopes to capture data either direct to a local memory drive or stream the captured data to a secure online Cloud store, and can then be shared via a link to any browser on a PC, phone or tablet, anywhere in the world. In addition, an API can be used that allows live capture data to be transferred from the Cloud to a 3rd party database or program.
