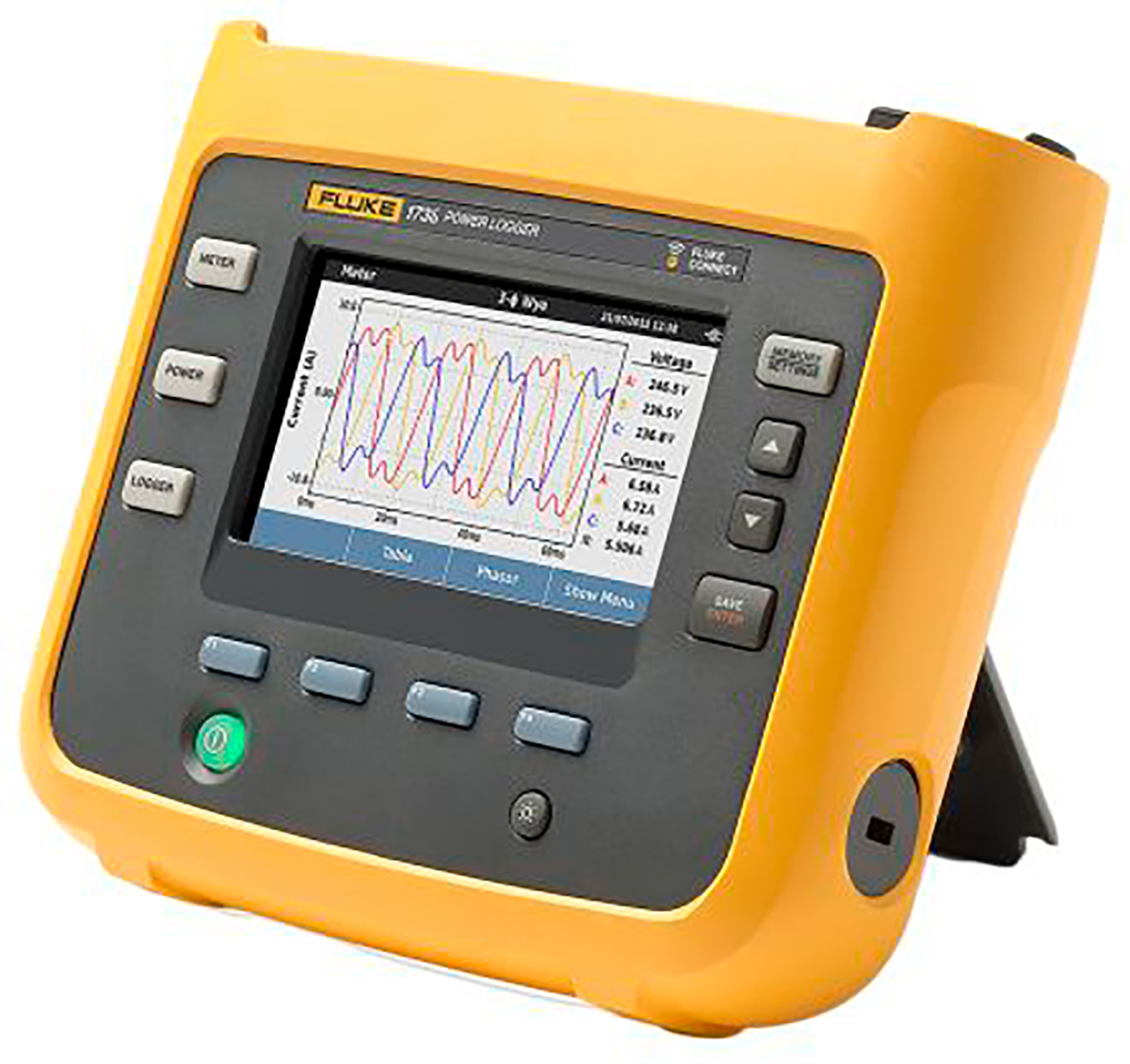

FLUKE Energy Monitor, 4-Hour Battery Life, 10MΩ Input Impedance - FLUKE-1736/EUS-GOLD
Need a device for measuring three-phase power in your setup? Choose this energy monitor from FLUKE to keep you up to speed. It's a versatile choice that's capable of assessing critical parameters including voltage, THD voltage and unbalance, as well as current, frequency, TDD and THD current. You won't be left squinting as you try to read outputs, thanks to an 11cm colour LCD screen with graphs and charts that are easy to see. Effortlessly select between wireless, USB or Bluetooth interfaces for a customisable experience that suits your needs. The monitor's data logging capacity means your measurements are stored and easily transferable to a computer for report writing or number crunching.
Features and Benefits
• Light weight of 1.1kg makes it easy to carry
• Rechargeable lithium-ion battery for measurements on the move
• IP50 rating means it's protected against dust for reliable performance in contaminated settings
• Compact dimensions of 198 (L) x 55 (H) x 167mm (W) for space efficiency Applications • Industrial automation
• Energy services
• HVAC systems Can I use this unit in harsh industrial conditions? CE
CSA certified As it gets on with the job in a broad temperature range of -10°C to +50°C, this is an ideal option for use in challenging environments.
• Rechargeable lithium-ion battery for measurements on the move
• IP50 rating means it's protected against dust for reliable performance in contaminated settings
• Compact dimensions of 198 (L) x 55 (H) x 167mm (W) for space efficiency Applications • Industrial automation
• Energy services
• HVAC systems Can I use this unit in harsh industrial conditions? CE
CSA certified As it gets on with the job in a broad temperature range of -10°C to +50°C, this is an ideal option for use in challenging environments.

1736/EUS Three Phase Power Energy Monitor, Bluetooth, USB, Wi-Fi, 4 Input Channel(s)
Manufacturer:
Fluke
Manufacturer Part No:
FLUKE-1736/EUS-GOLD
Enrgtech Part No:
ET16952693
Warranty:
Manufacturer
£ 3454.00
Checking for live stock
Number of Input Channels:
4
Model Number:
1736/EUS
Measurement Parameters:
Current, Current Harmonic, Frequency, TDD, THD Current, THD Voltage, Unbalance, Voltage, Voltage Harmonic
Interface Type:
Bluetooth, USB, Wi-Fi
Data Logger Type:
Three Phase Power
Maximum Voltage Measurement:
1000V
Communication Protocol:
USB
Power Source:
Battery
IP Rating:
IP50
Minimum Operating Temperature:
-10°C
Maximum Operating Temperature:
+50°C
Maximum Current Measurement:
1500A
