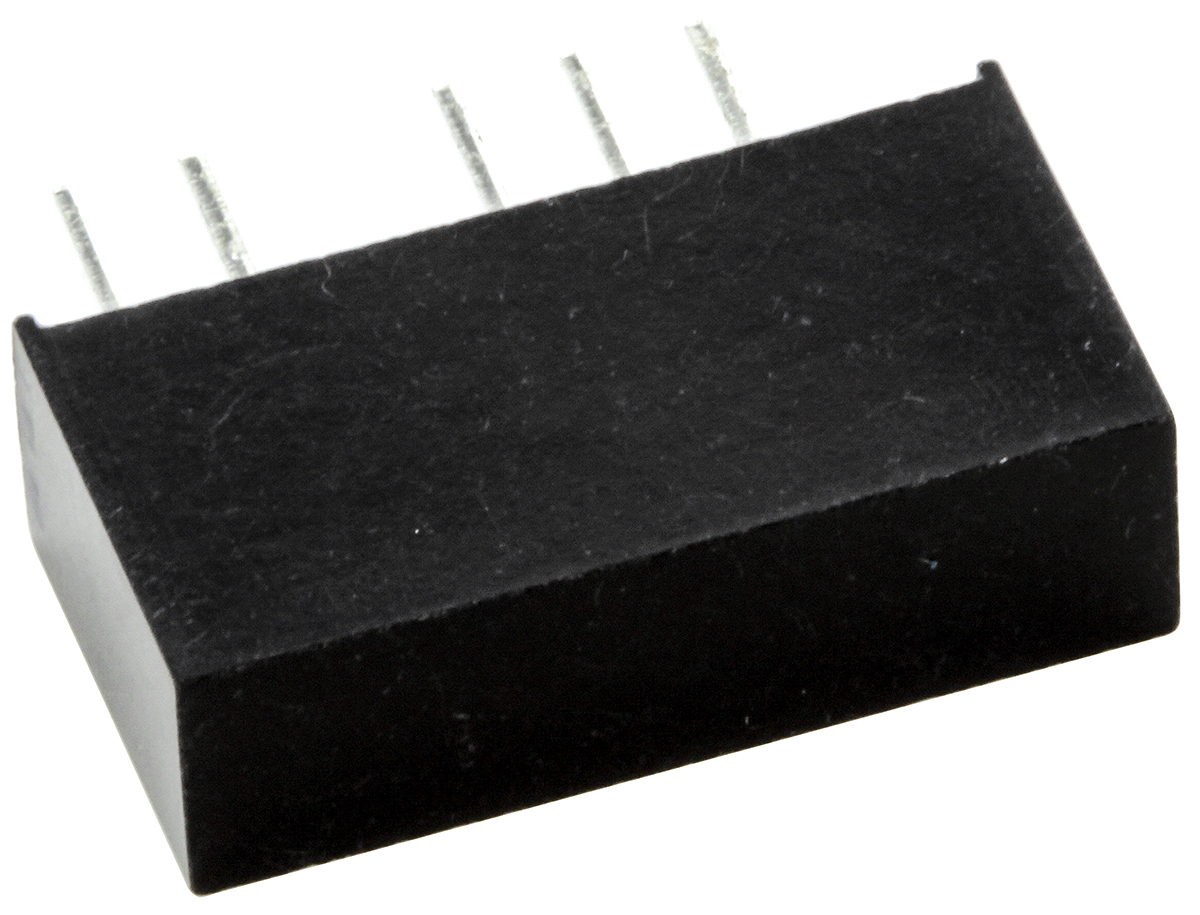

RB DC-DC Converter, ±15V dc/ ±33mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C

Output Voltage:

±15V dc

Input Voltage Range:

10.8 → 13.2 V dc

Power Rating:

1W

Input Voltage Nominal:

12 V dc

Output Current:

±33mA

Mounting Type:

Through Hole

Isolated:

Yes

Number of Outputs:

2

Package:

SIP

Isolation Voltage:

500V ac

Width:

6mm

Length:

19.6mm

Depth:

10.2mm

Series:

RB

Load Regulation:

10%

Minimum Temperature:

-40°C

Medical Approved:

Yes

Efficiency:

80 → 84%

Standards Met:

UL 60950-1

Maximum Temperature:

+85°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=53058&DisplayLogo=False
