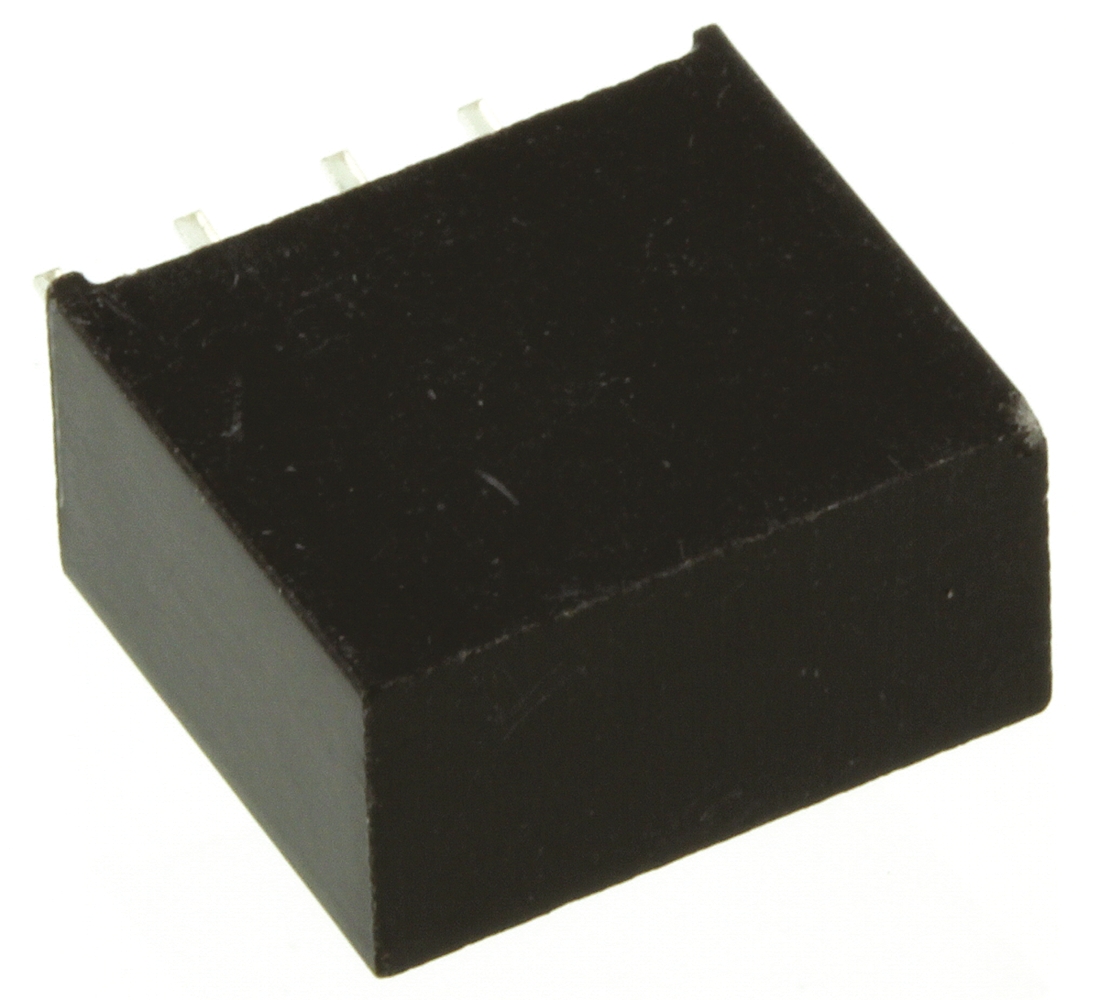

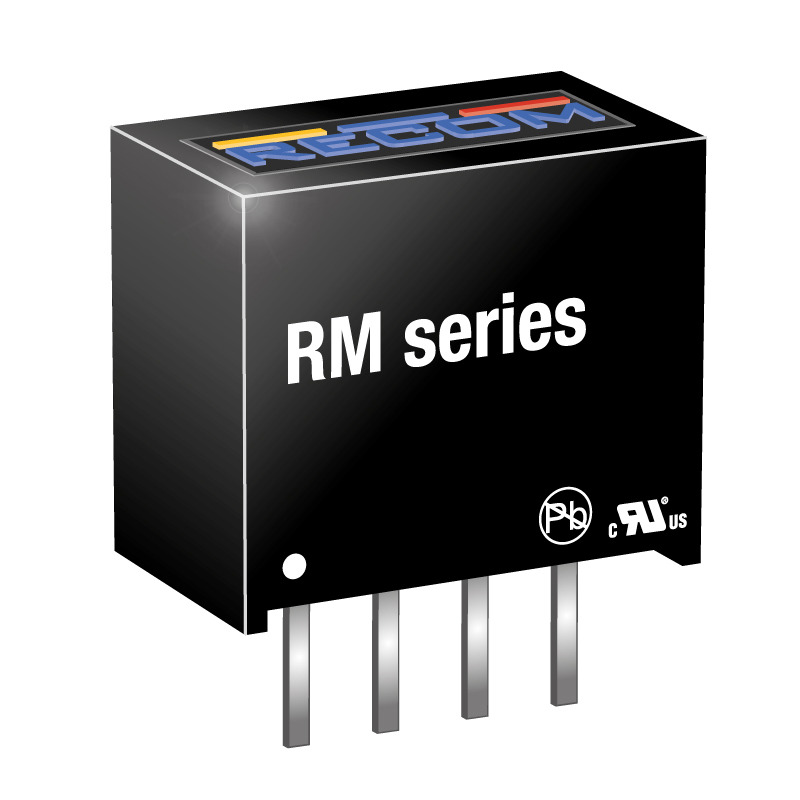

RM DC-DC Converter, 5V dc/ 50mA Output, 4.5 → 5.5 V dc Input, 0.25W, Through Hole, +85°C Max Temp -40°C

Output Voltage:

5V dc

Input Voltage Range:

4.5 → 5.5 V dc

Power Rating:

0.25W

Input Voltage Nominal:

5 V dc

Output Current:

50mA

Mounting Type:

Through Hole

Isolated:

Yes

Number of Outputs:

1

Package:

SIP

Isolation Voltage:

1kV dc

Width:

6mm

Depth:

10mm

Length:

11.5mm

Series:

RM

Load Regulation:

±15%

Standards Met:

CSA-C22.2 No. 60950-1, EN 60950, IEC, IEC/EN 60950-1, UL, UL 60950-1

Efficiency:

66 → 72%

Minimum Temperature:

-40°C

Maximum Temperature:

+85°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=53287&DisplayLogo=False
