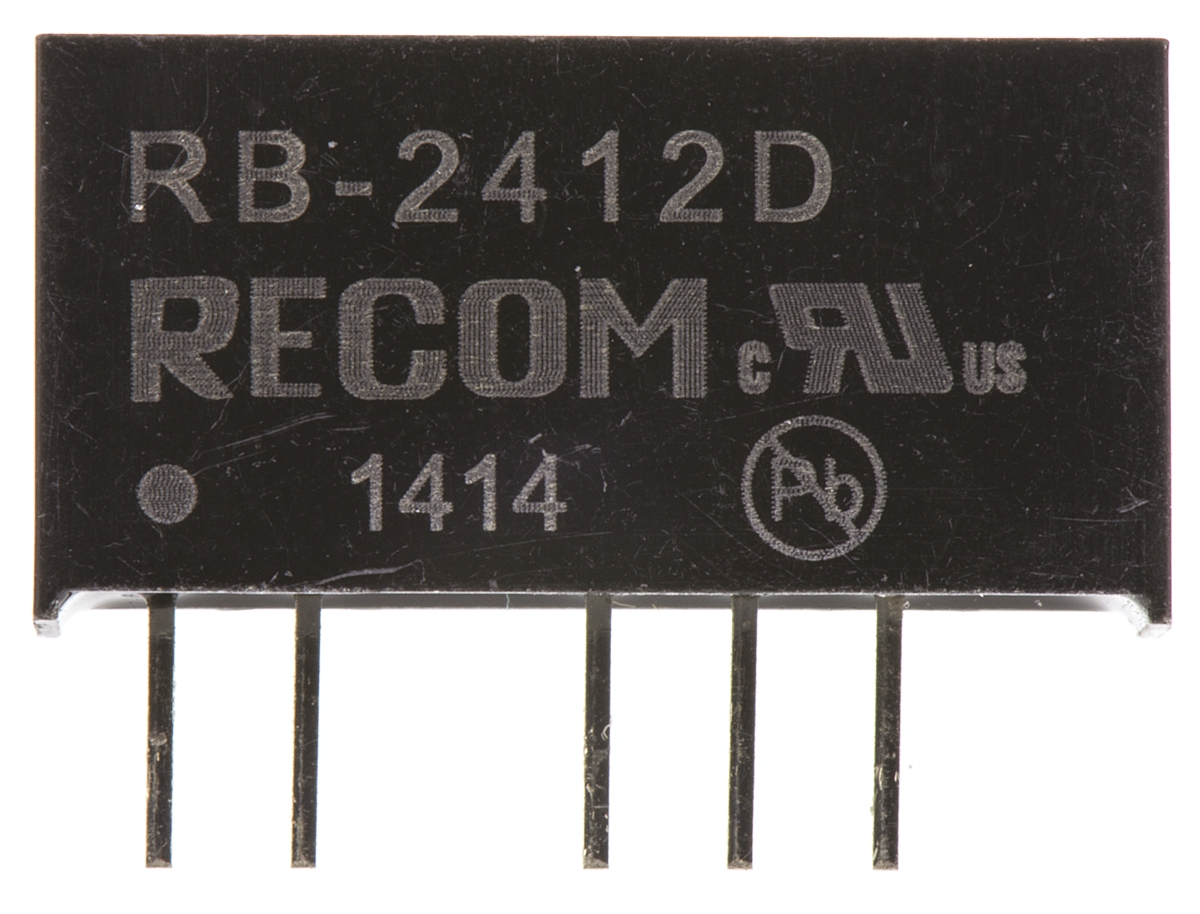

RB DC-DC Converter, ±12V dc/ ±42mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C

Output Voltage:

±12V dc

Input Voltage Range:

21.6 → 26.4 V dc

Power Rating:

1W

Input Voltage Nominal:

24 V dc

Output Current:

±42mA

Mounting Type:

Through Hole

Isolated:

Yes

Number of Outputs:

2

Package:

SIP

Isolation Voltage:

500V ac

Width:

6mm

Depth:

10.2mm

Length:

19.6mm

Series:

RB

Load Regulation:

0.1

Standards Met:

CAN/CSA-C22.2 No. 60950-1, IEC60950-1, UL 60950-1

Minimum Temperature:

-40°C

Medical Approved:

Yes

Maximum Temperature:

+85°C

Efficiency:

82%

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=53066&DisplayLogo=False
