CVTR-4 series has a compact size of only 24.3 x 14.3 x 9.8mm and ultra-wide input voltage range for 9-36V, 18-75V. The operating temperature is up to 77°C at full load, and up to 91°C with 50% loading. Its performance is not limited by its size, the efficiency is up to 88%. This model makes it possible to meet the demand for space critical project with high power density.

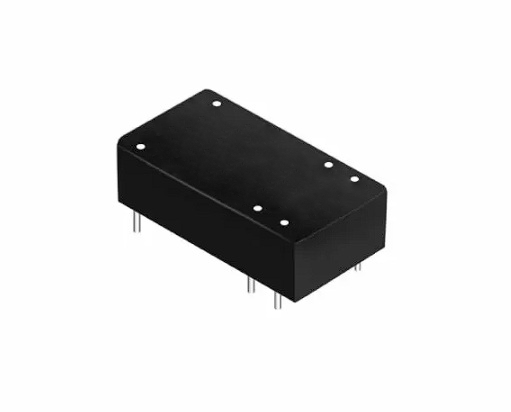

Ultra Compact DC-DC Converter with 9 to 75V Input High Efficiency for Space Critical Power Designs
£ 33.92
Checking for live stock
Input Voltage Range:
9-36Vdc
Input Current:
No Load 9 Full Load 479
Output Voltage:
12Vdc
Output Current:
833
Efficiency:
87%
Maximum Capacitor Load:
660uF
