CVTR-1 is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC and 3KVDC isolation. The operating temperature range is from -40°C to +105°C. It has a high efficiency of up to 87%. Our DC-DC power converter products are RoHS compliant and can be customized.

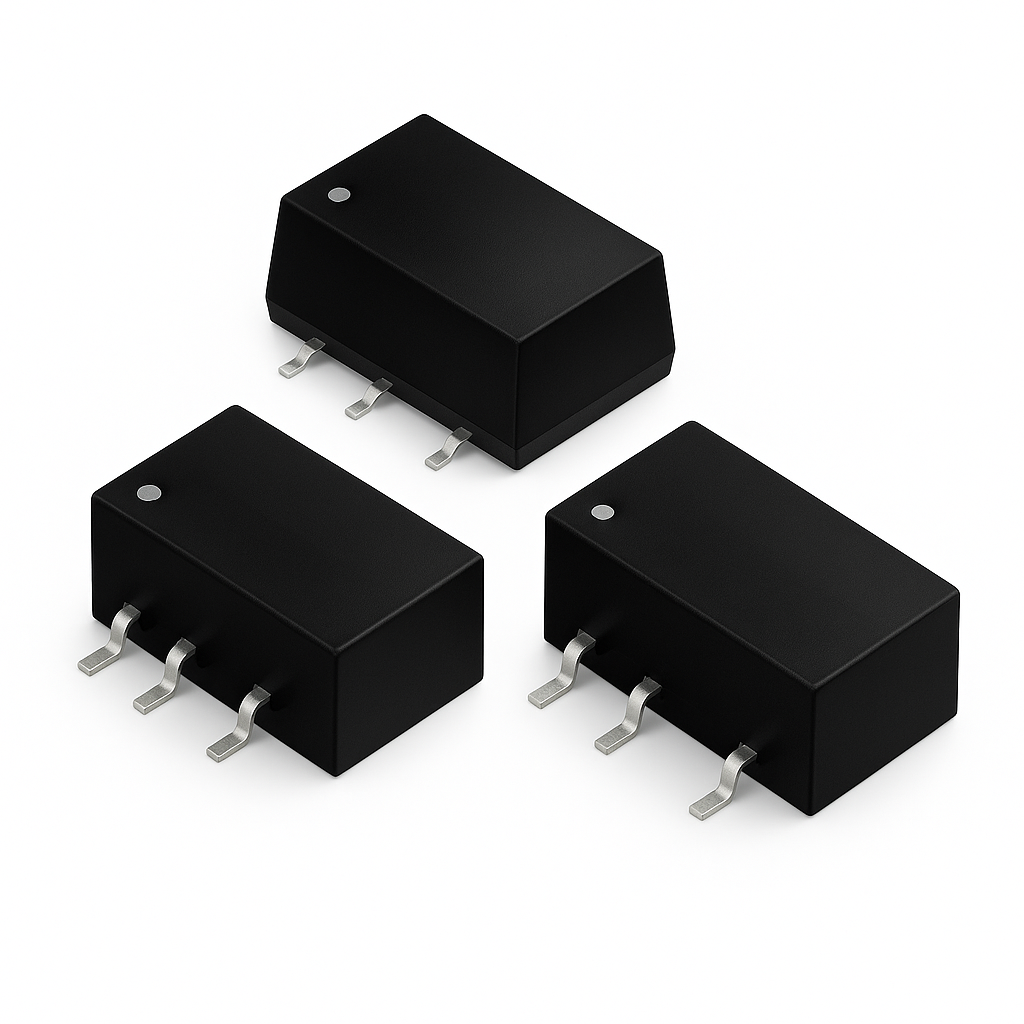

Compact High Isolation DC-DC Converter Efficient, Rugged and Customizable
£ 3.62
Checking for live stock
Isolation Resistance:
500Vdc Min1000MΩ
Isolation Capacitance:
Input-output,100KHz/0.1V 20 pF
Switching Frequency:
Full load, nominal input 250KHz
Operation Temperature:
-40 +105°C
Storage Temperature:
-55 +125°C
Humidity:
Non Condensing 95%
Cooling:
Free Air Convection
