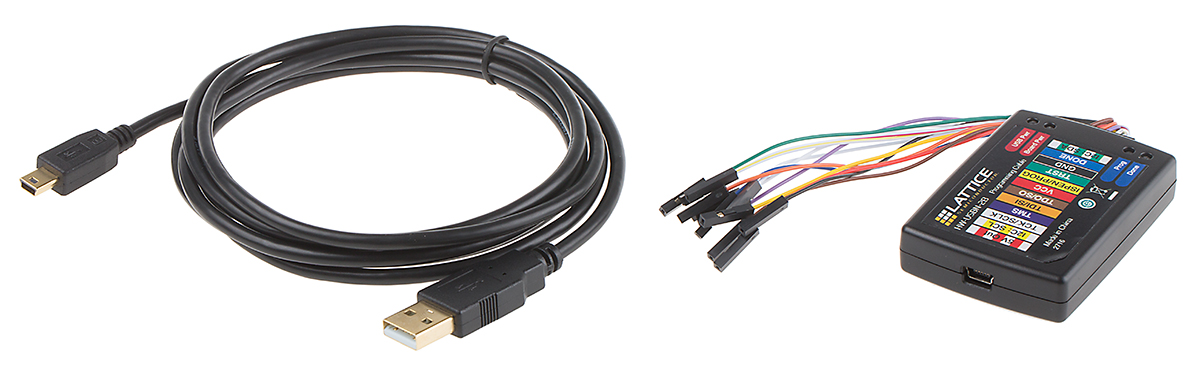

Lattice Semiconductor Flywire Cable Programmer The Lattice semiconductor flywire cable programmer is a device used for 2-way communication with software tools like the Reveal logic analyser, and MicoSystem debugger. The programming cables connect to either USB or PC parallel ports and use flywire connectors to the target board. The functions provided by the programming cables correspond with available functions on Lattice programmable devices. Since some devices contain different programming features, the specific functions provided by the programming cable may depend on the selected target device. Adapters are included to keep the flywire organized into 1x8 or 2x5 header configurations. Features and Benefits Operating voltage is between range 1.2V to 3.3V
Ideal for design prototyping and debugging
USB (v.1.0, v.2.0)
PC parallel port
6ft (2m) or more of programming cable length Certifications ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
