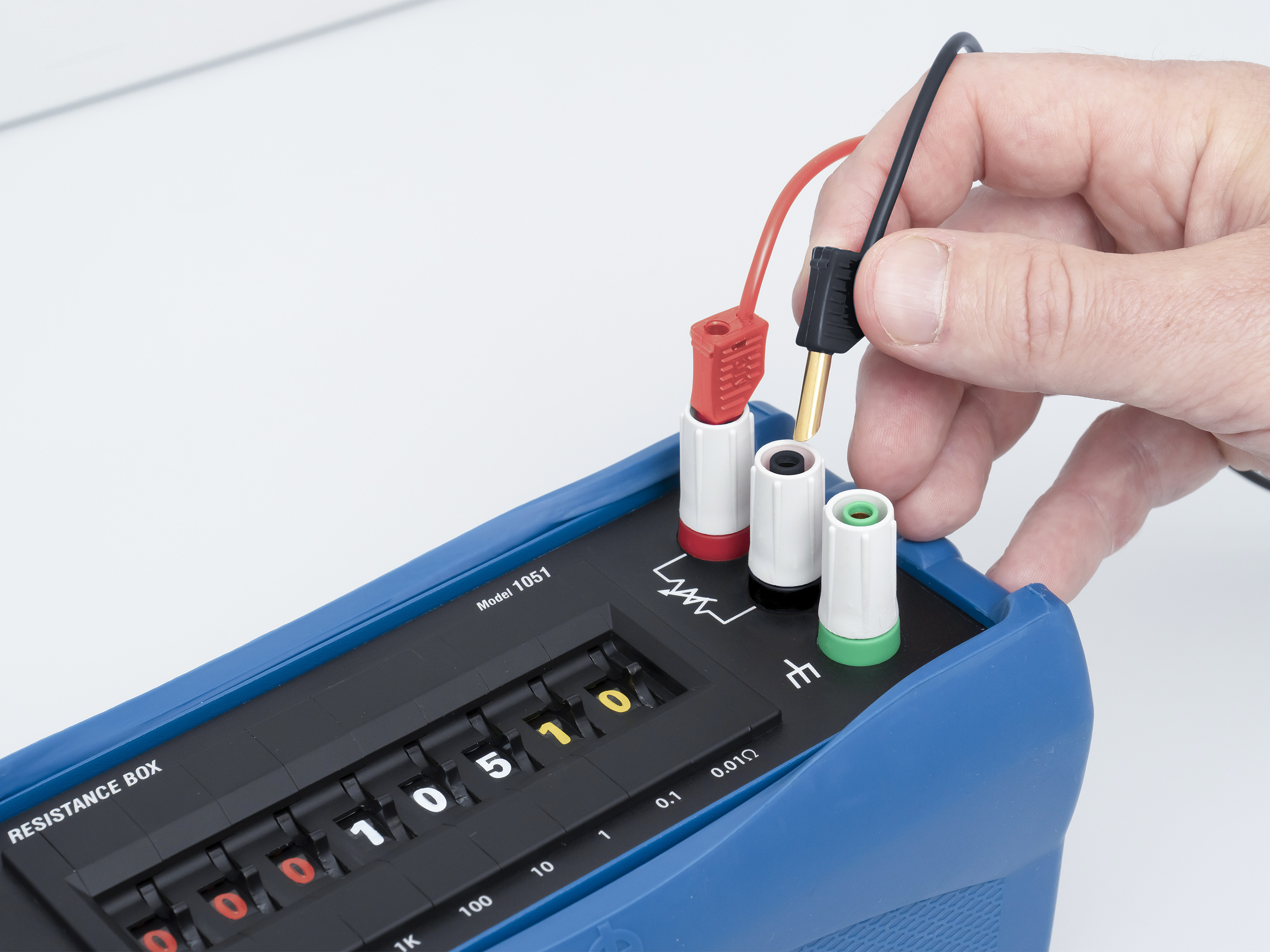

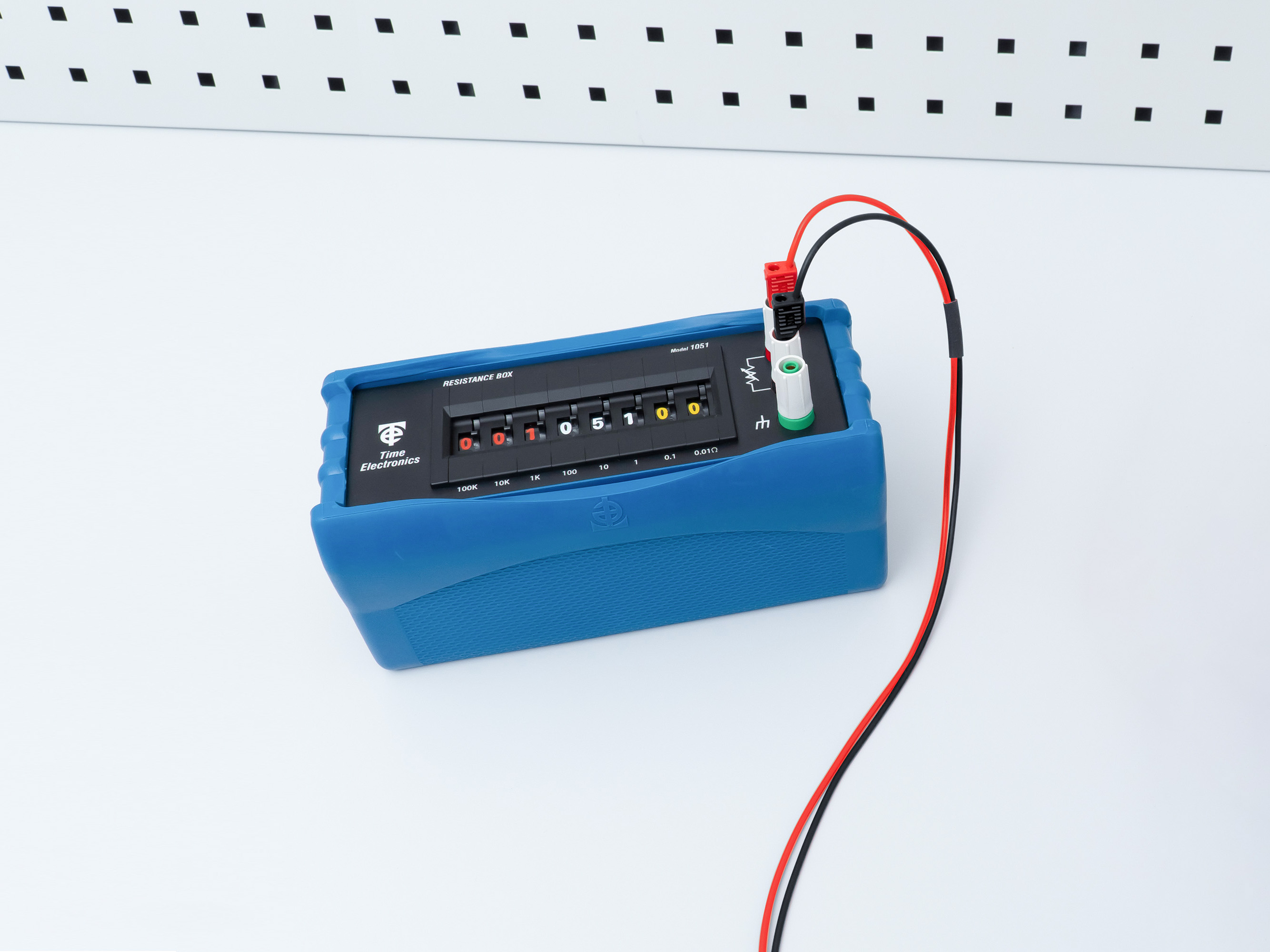

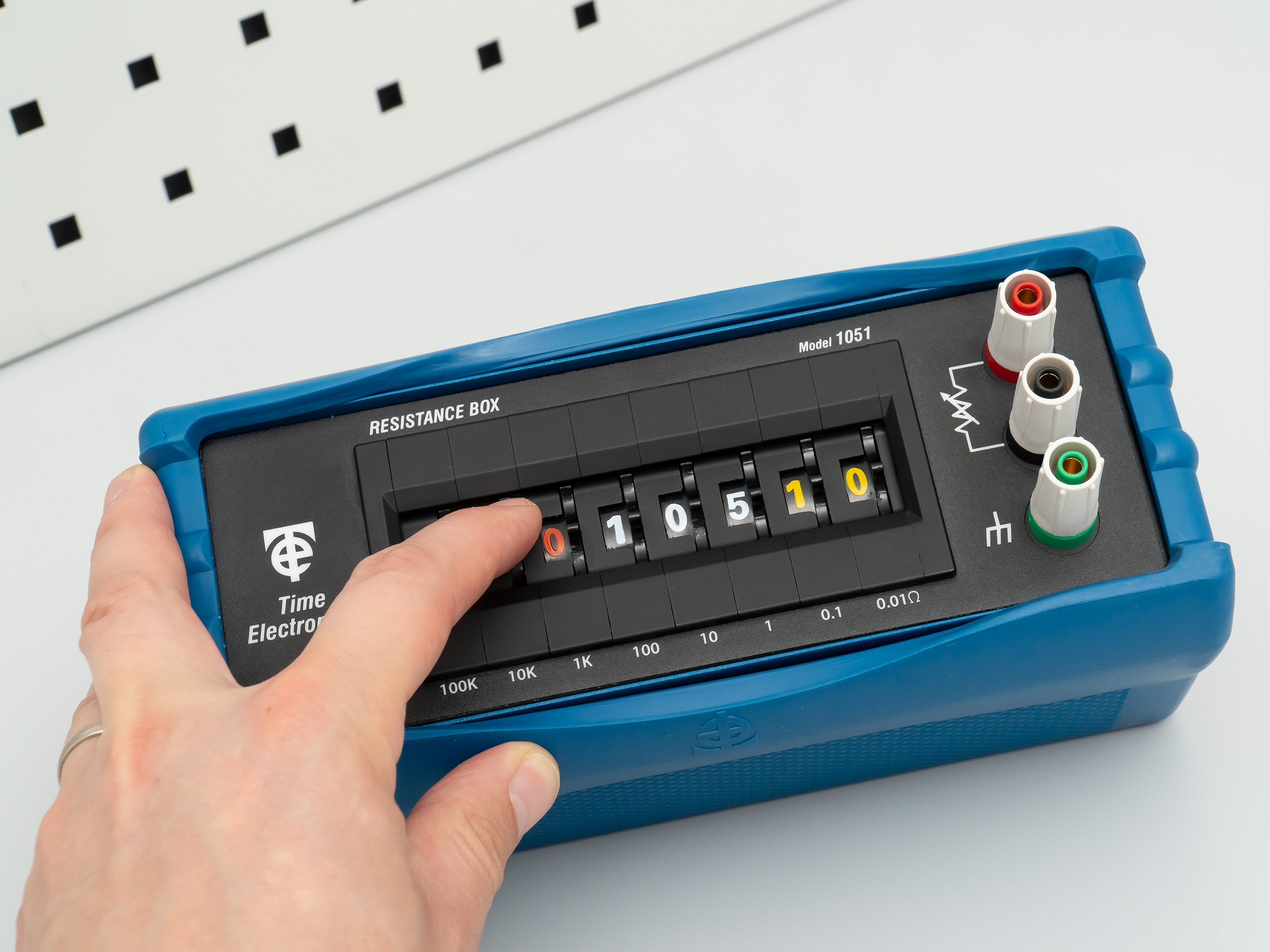

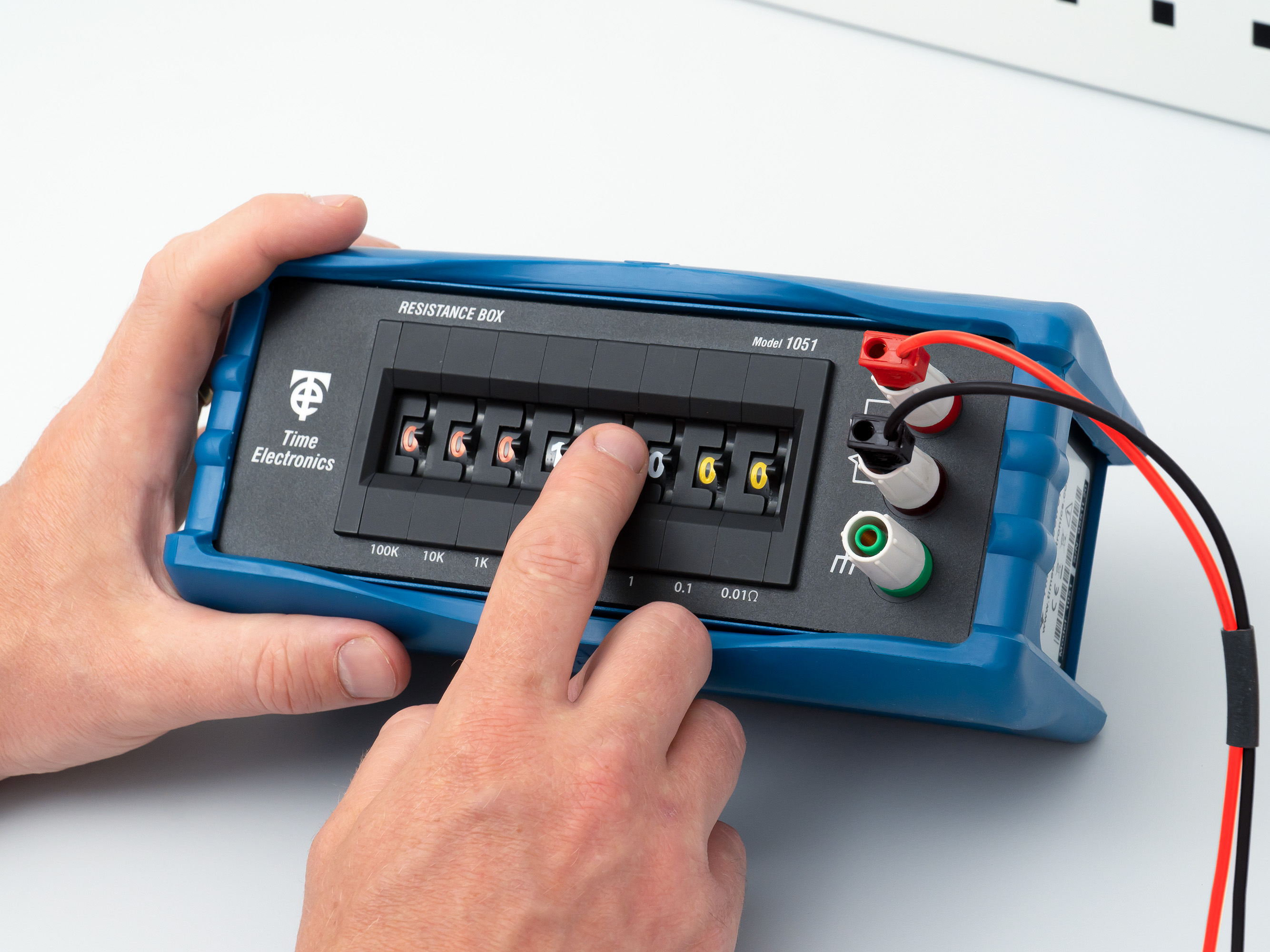

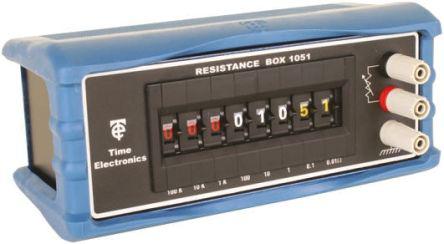

Precision and versatility come together in the Time Electronics 1051, a top-quality resistance decade box offering ultra-fine adjustment from 0.01 Ω to 1 MΩ in 0.01 Ω increments. Designed for seamless calibration, circuit development, and electronic testing worldwide, this compact instrument features a sturdy metal casing with a rubber protective cover and colour-coded thumbwheel switches for intuitive operations.

Advanced Features of the Time Electronic 1051, Decade Resistance Box, 600g

  • Resistance range: 0.01 Ω to 1 MΩ, with fine 0.01 Ω resolution.
  • Multi-digit thumbwheel selectors with colour-coded readings (red = kΩ, white = Ω, yellow = mΩ).
  • High-stability metal-film resistors for accurate, drift-resistant values.
  • Gold-contact switching system ensures low contact resistance and built-in redundancy.
  • 4 mm shrouded plugs, blind wires, or spades.
  • Ergonomic grip and protection in lab or field usage.

How the Time Electronic 1051, Decade Resistance Box Benefit Users

  • Ultra-fine control on resistance allows precise circuit tuning.
  • Low residual resistance (< 90 mΩ) supports low-ohm applications.
  • Durable and portable design withstands daily handling and transit.
  • Enhanced safety and user-friendliness, with touch‑proof terminals.
  • Reduced downtime through fast, accurate settings and inspection.

Usage Recommendations

  • Calibration and testing in electronic R&D labs
  • Platinum resistance thermometer (Pt100/PRT) simulation in metrology
  • Teaching and experimental setups in educational institutions
  • Fieldwork in industrial maintenance and diagnostics
  • Component validation and resistance substitution in manufacturing QA

Why Buy this Resistance Decade Box?

Invest in accuracy, usability, and durability. The 1051 provides exceptional precision and reliability. Its clear, colour-coded display and gold-contact switch system ensure consistent performance, even under heavy use. Compact yet robust, it suits both lab benches and rugged field operation. Its high stability and temperature compensation help minimize measurement drift, preventing costly errors in critical projects.

Time Electronic , Decade Resistance Box, 600g, 110 x 200 x 75mm

Manufacturer:
Manufacturer Part No:
1051
Enrgtech Part No:
ET16916625
Warranty:
Manufacturer
£ 554.56 £ 388.19
Checking for live stock
Absolute Maximum Resistance Measurement:
1MΩ
Dimensions:
110 x 200 x 75mm
Weight:
600g
Minimum Resistance Measurement:
0.01Ω
Temperature Coefficient:
±100ppm/°C
Height:
75mm
Width:
200mm
Length:
110mm
Decade Box Type:
Resistance
Best Minimum Resistance Accuracy:
±0.1%
Power Rating:
1W
Residual Resistance:
90mΩ
Resistance Resolution:
0.01Ω
Best Maximum Resistance Accuracy:
±10%
pdf icon
1051 Decade Resistance Box Technical Manual(Technical Reference)
pdf icon
1051 Low Ohm Resistance Box Data Sheet(Technical Reference)
